ETD630N18P60

60 mm Thyristor/Diode Module with 1800 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ETD630N18P60
ETD630N18P60
Data Sheet

Product details

  • Configuration
    SCR / Diode Phase Control
  • Housing
    60 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    628/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    16800
  • Product Line
    Eco Block
  • rT [mΩ] (@Tvj max)
    0.341
  • RthJC [K/W] (@180° el sin)
    0.06
  • Tvj [°C]
    135
  • VDRM / VRRM [V]
    1800
  • VT0 [V] (@Tvj max)
    0.8
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    1411
Recommended
OPN
ETD630N18P60XPSA1 ETD630N18P60HPSA1
Product Status active and preferred discontinued
Infineon Package BG-PB60E2A-1 BG-PB60ECO-1
Package Name N/A N/A
Packing Size 2 2
Packing Type TRAY TRAY
Moisture Level NA NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes No
RoHS Compliant Yes Yes
Infineon stock last updated:
View replacement

Product Status
Active
Infineon Package BG-PB60E2A-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package BG-PB60ECO-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
Thyristor/Diode 60 mm Eco Block 1800 V, 628 A module for phase control in pressure contact technology . ETD630N18P60 is a complete re-design of our pressure contact technology. If you need higher performance use our TD780N18KOF .

Features

  • Re-designed pressure contact techn.
  • Short-on-fail capability
  • Best-in-class DC blocking capabil.
  • Higher operational temperature
  • Standard housing dimensions

Diagrams

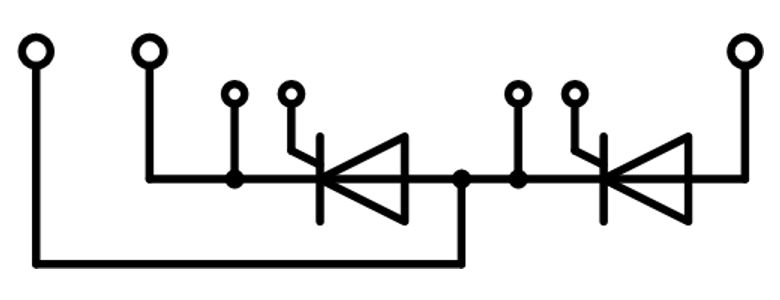

TT_resolution
TT_resolution
TT_resolution TT_resolution TT_resolution
×
