DZ1100N22K

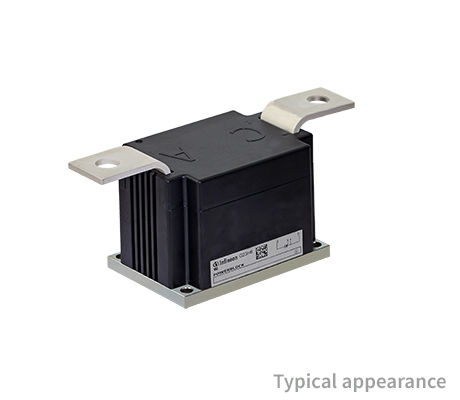

70 mm Single Rectifier Diode module with 2200 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DZ1100N22K
DZ1100N22K
Data Sheet

Product details

  • Configuration
    Single Rectifier Diode
  • Housing
    70 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    1100/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    40000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.073
  • RthJC [K/W] (@180° el sin)
    0.048
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    2200
  • VT0 [V] (@Tvj max)
    0.75
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    8000
Recommended
OPN
DZ1100N22KHPSA2
Product Status active and preferred
Infineon Package BG-PB70AT-1
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-PB70AT-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Single Rectifier Diode 70 mm Power Block 2200 V, 1100 A modulefor phase control in pressure contact technology . Also available with pre-applied Thermal Interface Material .

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness and reliability
