DPS368

XENSIV™ DPS368 - ultra small waterproof pressure sensor, environmentally protected against water (IPx8), dust & humidity
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DPS368
DPS368
Data Sheet

Product details

  • Accuracy
    Relative accuracy: ± 0.06 hPa (or ±0.5 m), Absolute accuracy: ± 1 hPa (or ±8 m), Precision: ± 0.002 hPa (or ±0.02 m)
  • Interfaces
    I2C and SPI (both with optional interrupt)
  • Planned to be available until at least
    2034
  • Pressure Range
    300 hPa to 1200 hPa
  • Supply Voltage
    1.7 V to 3.6 V
  • Temperature
    -40 °C to 85 °C
Recommended
OPN
DPS368XTSA1
Product Status active and preferred

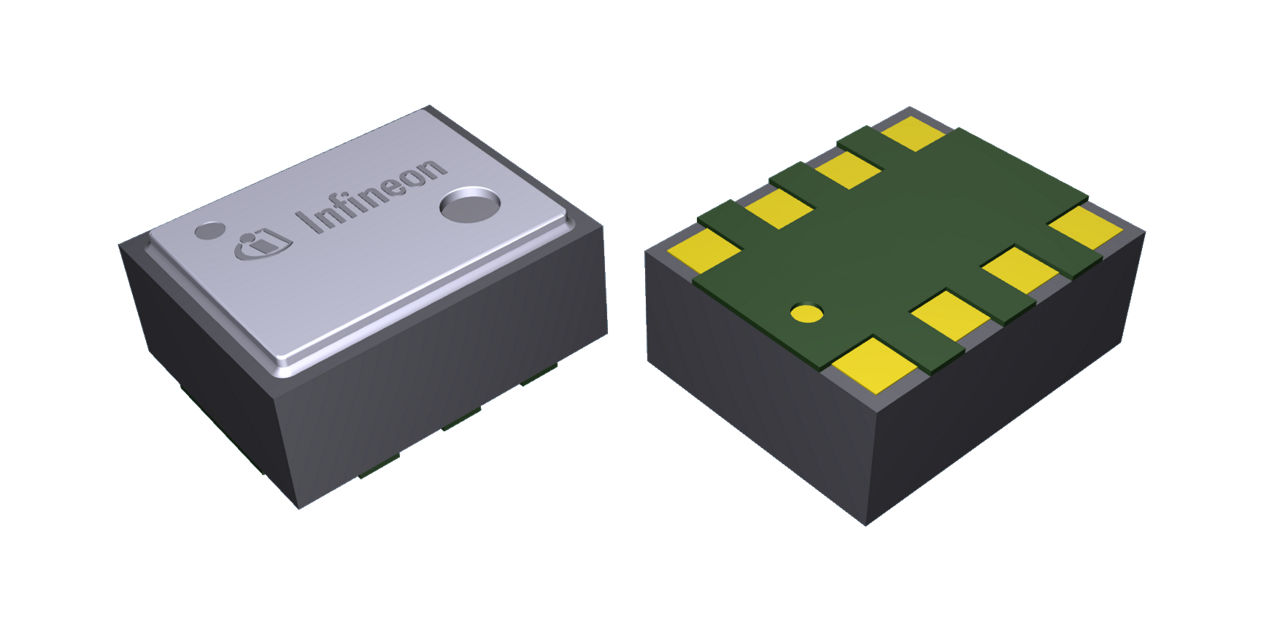

Infineon Package
VLGA-8-2
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
VLGA-8-2
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
XENSIV™ DPS368 is a miniaturized digital barometric air pressure sensor with ultra-high precision (±2 cm) and low current consumption, measuring pressure and temperature. With IPX8 rating, it survives 50m underwater for one hour. Capacitive sensing ensures high precision in temperature changes. The small package (2.0 x 2.5 x 1.1 mm3) makes the DPS368 ideal for mobile applications and wearables.

Features

  • Package dimensions: 8-pin LGA, 2.0 x 2.5 x 1.1 mm3
  • Operation range:
  • Pressure: 300–1200 hPa
  • Temperature: -40–85°C
  • Precision: ± 0.002 hPa (or ±0.02 m)
  • Rel. accuracy: ± 0.06 hPa (or ±0.5 m)
  • Abs. accuracy: ± 1 hPa (or ±8 m)
  • Temperature accuracy: ± 0.5°C
  • Avg. current consumption: 1.7 µA(pressure measurement) @1Hzsampling rate, standby: 0.5 µA.
  • Integrated FIFO
  • Interface: I2C and SPI(both with optional interrupt)

Benefits

  • Fast, ultra-low noise read-out allows for precise measurement of altitude, air flow and body movements
  • Small package size ideal for wearable devices & mobile applications
  • Sensor can be used in harsh environment (water, dust & humidity)
  • Environmentally resistant package facilitates handling in assembly line
