DF200R12W1H3_B27

1200 V, 200 A booster IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DF200R12W1H3_B27
DF200R12W1H3_B27
Data Sheet

Product details

  • Configuration
    Booster
  • Dimensions (length)
    48 mm
  • Dimensions (width)
    33.8 mm
  • Features
    PressFIT
  • Housing
    EasyPACK™ 1B
  • IC(nom) / IF(nom)
    200 A
  • IC max
    200 A
  • Qualification
    Industrial
  • Technology
    IGBT HighSpeed 3
  • VCE(sat) (Tvj=25°C typ)
    1.3 V
  • VF (Tvj=25°C typ)
    2 V
  • Voltage Class max
    1200 V
Recommended
OPN
DF200R12W1H3B27BOMA1
Product Status active and preferred
Infineon Package AG-EASY1B
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-EASY1B
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

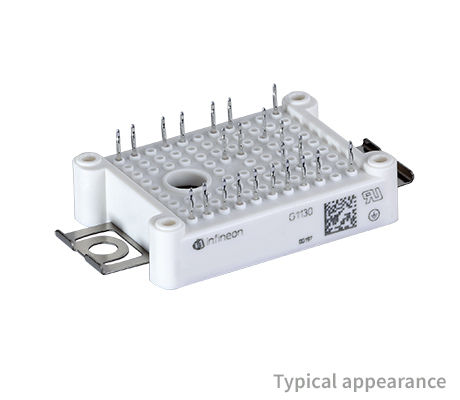

EasyPACK™ 1B 1200 V, 200 A booster IGBT modules with the proven PressFIT technology and High Speed IGBT H3.

Features

  • High Speed IGBT H3
  • Low switching losses
  • Fast Silicon diode 1200V
  • Al2O3 substrate
  • Integrated NTC temperature sensor
  • PressFIT contact technology

Applications

Photovoltaic
