DD450S45T3E4_B5

4500 V, 450 A Diode IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD450S45T3E4_B5
DD450S45T3E4_B5
ea.
Data Sheet

Product details

  • Configuration
    Diodes
  • Dimensions (length)
    140 mm
  • Dimensions (width)
    99.8 mm
  • Features
    10.4kV isolation
  • Housing
    XHP™ 3
  • IC(nom) / IF(nom)
    450 A
  • IC max
    450 A
  • Qualification
    Industrial, Traction
  • Technology
    Diode
  • VCES / VRRM
    4500 V
  • VF (Tvj=25°C typ)
    2.6 V
  • Voltage Class max
    4500 V
Recommended
OPN
DD450S45T3E4B5BPSA1
Product Status active and preferred
Infineon Package AG-XHP3K45
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-XHP3K45
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

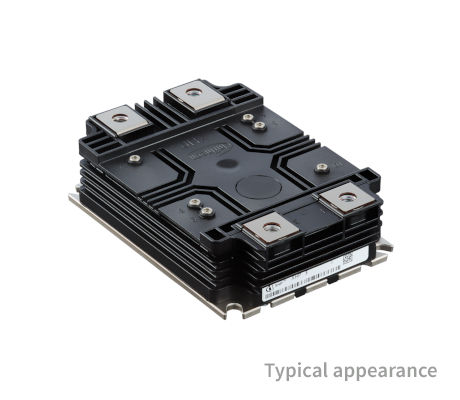

XHP™ 3 4500 V, 450 A diode IGBT module with Emitter Controlled E4 Diode and enhanced isolation of 10.4 kV. Predestined to be combined with IGBT module FF450R45T3E4_B5

Features

  • High DC stability
  • High surge current capability
  • Low inductive design
  • Package with CTI > 600
  • Package insulation 10.4 kV AC 1min
  • Tvj op=150°C
  • AlSiC base plate with AlN substrate
  • for increased Thermal cycling
  • Fire & smoke EN45545 R22, R23 : HL3
  • Modular concept
  • Dual Diode

Benefits

  • Standardized housing: 100x140x40 mm
  • Long service life
  • Enables clean electrical design
  • Enables clean mechanical design
  • Easy set-up of 3level NPC1 topology
  • Easy set-up of parallelling
  • Scalability in smaller steps
  • One type for various power levels
  • Smoother supply chain handling
  • Enables downsizing on system level
  • Low FIT Rate
  • less EMI issues
