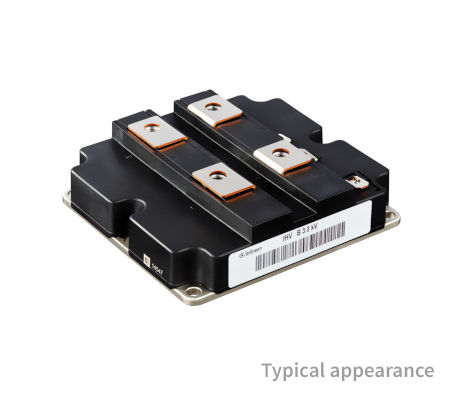

DD1600S33HE4

3300 V, 1600 A diodes IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DD1600S33HE4
DD1600S33HE4
ea.
Data Sheet

Product details

  • Configuration
    Diodes
  • Dimensions (width)
    140 mm
  • Dimensions (length)
    130 mm
  • Features
    Optimized IGBT Diode Ratio
  • Housing
    IHV B
  • IC(nom) / IF(nom)
    1600 A
  • IC max
    1600 A
  • Qualification
    Industrial, Traction
  • Technology
    Diode EC 4
  • VCES / VRRM
    3300 V
  • VF (Tvj=25°C typ)
    2.9 V
  • Voltage Class max
    3300 V
Recommended
OPN
DD1600S33HE4BPSA1
Product Status active and preferred
Infineon Package AG-IHVB130
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-IHVB130
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • High DC stability
  • High surge current capability
  • Tvj op=150°C
  • AlSiC base plate with AlN substrate
  • Package with CTI > 600
  • Fire & smoke EN45545 R22, R23 : HL3
  • Low recovery losses
  • Isolated base plate
  • 2x PowerCycling vs state of the art
  • Dual Diode

Benefits

  • Standardized housing: 130x140x38 mm
  • Unbeatable dynamic robustness
  • Long service life
  • 2xPC = 110% power at same lifetime
  • or 200% lifetime
  • or 8K more safety buffer
  • power output best in class by +40%
  • DD+FZ1600 enables 1.6+ MW aircooled
  • requires half the size as old tpyes
  • Low FIT Rate
  • UL recognized
