not for new design
RoHS Compliant

CYW4343W

package
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW4343W
CYW4343W

Product details

  • Antenna Configuration
    1x1
  • Bluetooth Interface
    UART/PCM
  • Bluetooth Specification
    Bluetooth 5.3
  • Core
    Cortex M3
  • CPU
    N/A
  • Dimensions
    4.87 x 2.87 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • GPIOs
    5
  • Memory
    N/A
  • Operating system support
    Linux, RTOS
  • Operating Temperature
    -30 °C to 70 °C
  • Operating Voltage
    3 V to 4.8 V
  • Package
    WLCSP-74
  • Partner Module
    Y
  • Pitch
    0.4 mm
  • Product Description
    Wi-Fi 4 combo
  • Replacement
    CYW43439
  • ROM
    576 KB
  • Software Support
    ModusToolbox™
  • SRAM
    160 kByte
  • Wi-Fi Band
    2.4GHz
  • WI-FI Interface
    SDIO/SPI
  • Wi-Fi Specification
    Wi-Fi 4 (802.11n)
OPN
CYW4343WKUBGT
Product Status not for new design
Infineon Package
SG-UFWLB-74
Package Name WLCSP-74 (002-13189)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
SG-UFWLB-74
Package Name WLCSP-74 (002-13189)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

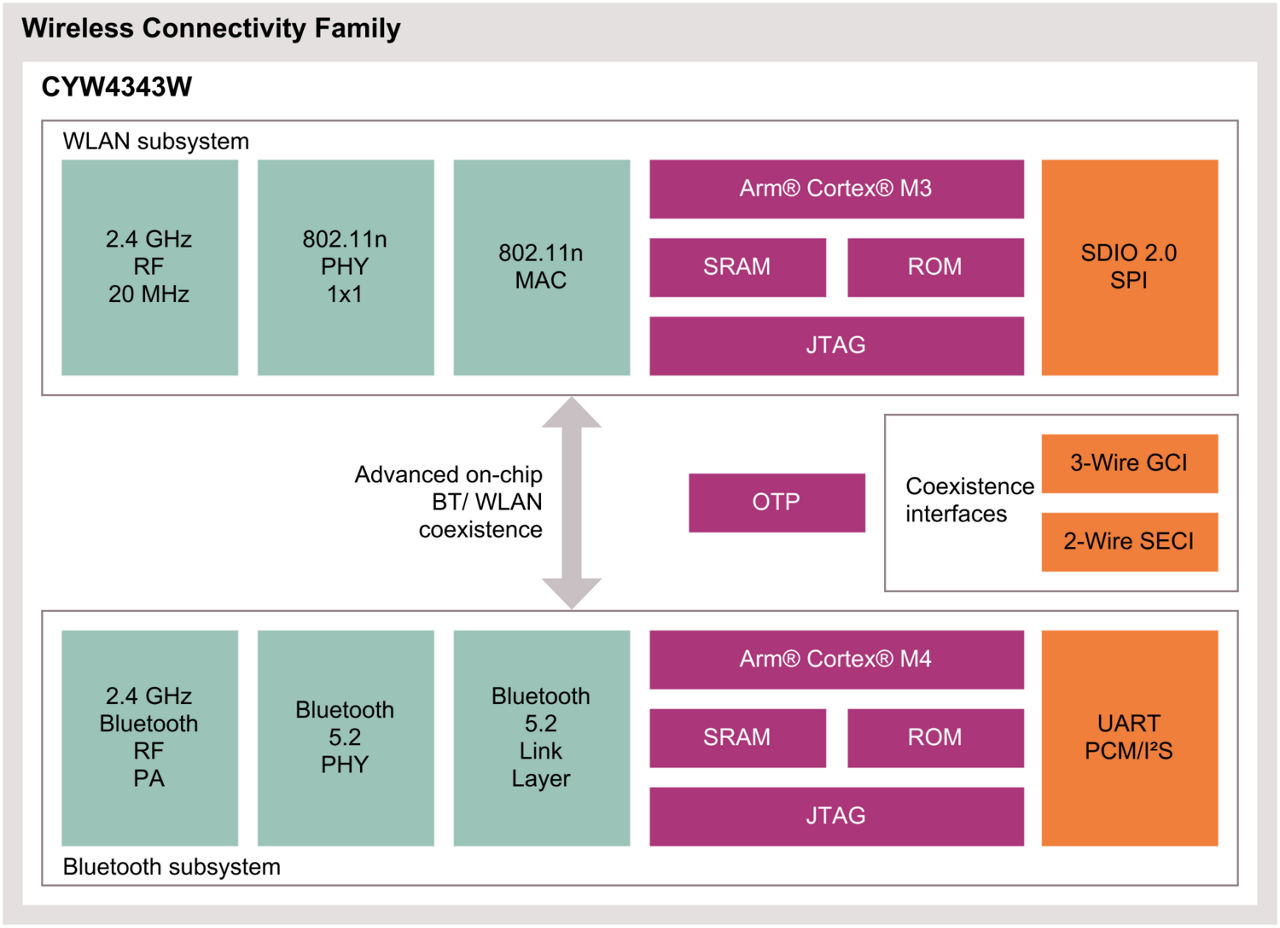

Infineon’s AIROC™ CYW4343W single-chip combo device features 1x1 single-band 2.4 GHz Wi-Fi 4 (802.11n) and Bluetooth® 5.3 is a reliable entry-level solution for low-cost applications. A small form-factor with minimal external components drives down mass production costs.

Features

  • Wi-Fi 4 (802.11n), Single-band (2.4 GHz)
  • 1x1 SISO
  • 20 MHz channels, up to 96 Mbps PHY rate
  • Supports shared BT/Wi-Fi antenna
  • Class 1 (100m) & Class 2 (10m) operation
  • Bluetooth® 5.1
  • SDIO v2.0 Host Interface
  • gSPI host interface
  • WPA2
  • SoftAP
  • GPIOs (5)
