Active and preferred
RoHS Compliant
Lead-free

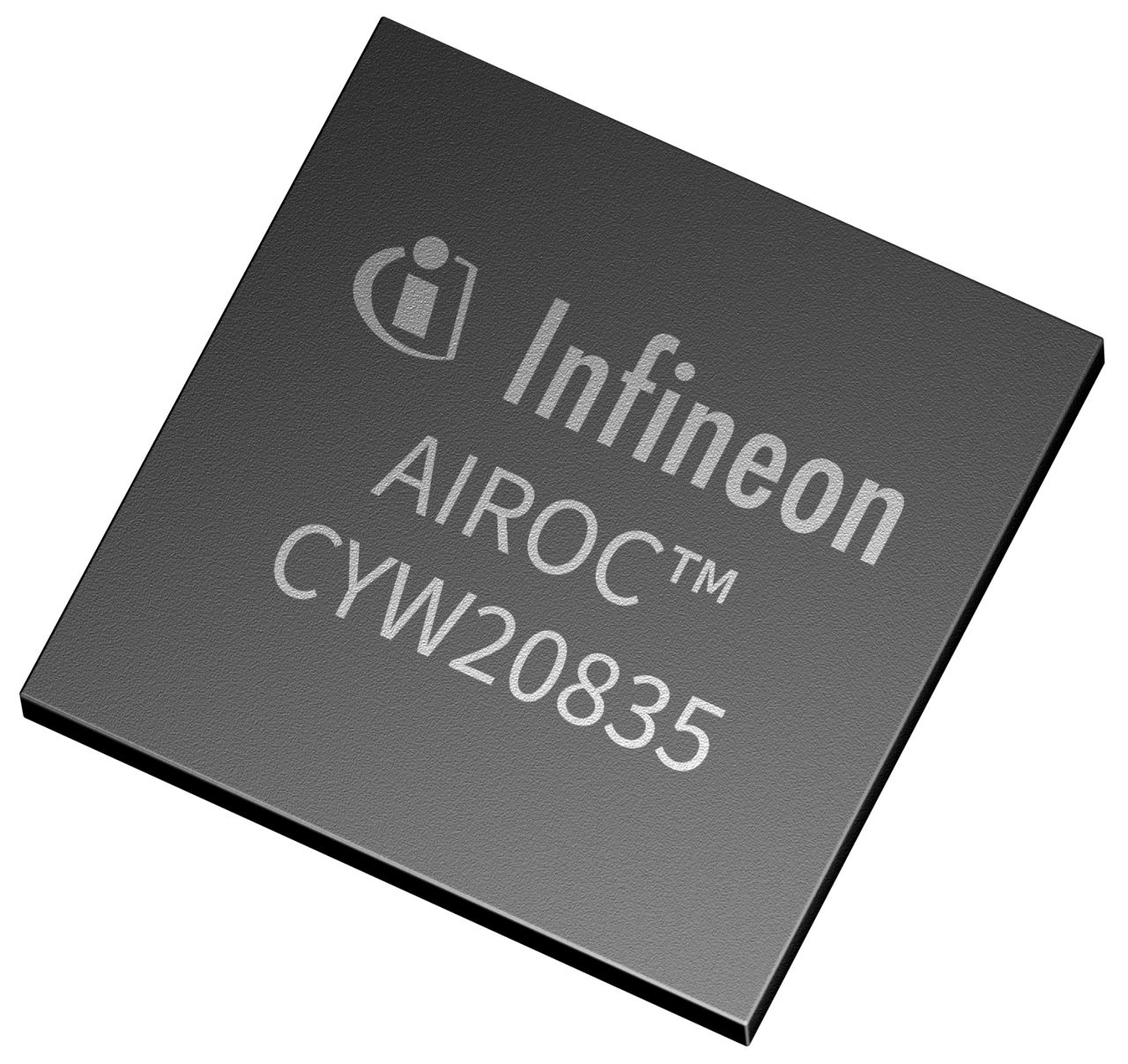

CYW20835

Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW20835
CYW20835
ea.
Data Sheet

Product details

  • Bluetooth Classic
    No
  • Bluetooth LE RX SENSITIVITY
    -94.5 dBm
  • Bluetooth LE TX POWER
    12 dBm
  • Bluetooth LE
    Yes
  • Bluetooth Specification
    Bluetooth® 5.4
  • CPU
    Arm® Cortex®-M4
  • Family
    AIROC™ Bluetooth LE
  • Frequency max
    96 MHz
  • GPIOs
    24
  • Launch Date
    31-12-2019
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Operating Temperature
    -30 °C to 85 °C
  • Operating Voltage
    1.625 V to 3.63 V
  • Partner Module
    N
  • Planned to be available until at least
    31-12-2034
  • RAM
    384 kByte
  • ROM
    2048 kByte
  • Software Support
    ModusToolbox™
Recommended
OPN
CYW20835PB1KML1GGF
Product Status active and preferred
Infineon Package
PG-VQFN-60
Package Name QFN-60 (002-13579)
Packing Size 2600
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-VQFN-60
Package Name QFN-60 (002-13579)
Packing Size 2600
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The AIROC™ CYW20835 Bluetooth® LE SoC is a Bluetooth® Core 5.4 compliant device for IoT applications. Manufactured using the industry's advanced 40 nm CMOS low-power process, the CYW20835 employs high levels of integration to minimize external components, reducing the device footprint and the costs associated with implementing Bluetooth® Low Energy solutions.

Features

  • Onboard crystal oscillator
  • Passive components
  • 256KB onboard flash memory
  • Globally certified
  • Supported in ModusToolbox™

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications
  • Low power
  • Low cost
