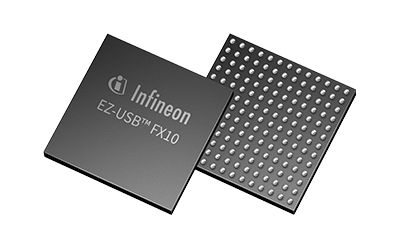

CYUSB4013-FCAXI

EZ-USB™ FX10 plus: FX10 basic + Type-C mux, 16-ch LVDS, QSPI, 512 KB flash, 1024 KB RAM
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYUSB4013-FCAXI
CYUSB4013-FCAXI
ea.
Data Sheet

Product details

Recommended
OPN
CYUSB4013FCAXIXQMA1
Product Status active and preferred
Infineon Package
PG-TFBGA-169
Package Name FBGA-169 (002-32511)
Packing Size 840
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TFBGA-169
Package Name FBGA-169 (002-32511)
Packing Size 840
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's EZ-USB™ FX10 solution extends the legacy of EZ-USB™ FX3, the industry’s gold standard for USB peripheral controller, to the next level with the latest ultra-fast USB 10Gbps and LVDS interfaces increasing the total bandwidth up to 275% of its predecessor (8.8 Gbps vs. 3.2 Gbps).

Features

  • USB 3.2 Gen 2 device port
  • USB-C orientation detection/correction
  • Dual-core ARM® Cortex® M4F/M0+ CPU
  • Integrated 512 KB flash
  • 1024 KB buffer memory
  • 16-lane LVDS interface @1.25 Gbps/lane
  • 32-bit LVCMOS interface @160MHz DDR
  • 2x Quad-SPI (QSPI)
  • 7 serial communication blocks
  • USB full-speed device debug port
  • 2x I2S/PDM-PCM and GPIOs

Benefits

  • USB 10 Gbps performance
  • Up to 5-meter USB passive cable support
  • Smaller PCB footprint
  • Optimized BOM cost
  • No need for high-speed signal mux
  • Integrated flash
  • Quick start development
  • USB Video Class, UVC, firmware ready
  • USB3 Vision firmware ready
  • Application notes for HW & SW
