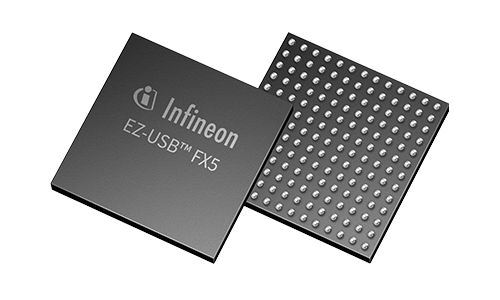

CYUSB3082-FCAXI

NEW
EZ-USB™ FX5 basic: 3.7 Gbps throughput + 256 KB flash
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYUSB3082-FCAXI
CYUSB3082-FCAXI
ea.
Data Sheet

Product details

  • Applications
    Industrial automation, 3d Scanners, Machine Vision, Video frame grabber, Mixed reality headset
  • Family
    EZ-USB™ FX5
  • Flash
    256 kByte
  • LVCMOS
    Y
  • LVDS
    N
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    1.7 V to 3.6 V
  • Package Type
    169-ball FBGA
  • Peak Reflow Temp
    260 °C
  • Processor Type
    ARM® Cortex® M4/M0+
  • Product Category
    3.2 Peripheral Controllers
  • Product Description
    USB 3.2 Gen 1 USB 5 Gbps Peripheral Controller
  • Security Features
    N
  • Software Tools
    ModusToolbox™
  • SRAM
    512 kByte
  • Temperature grade
    Industrial
  • USB Speed
    5 GBit/s
  • USB Standard
    USB 3.2 Gen1
Recommended
OPN
CYUSB3082FCAXIXQMA1
Product Status active and preferred
Infineon Package
PG-TFBGA-169
Package Name FBGA-169 (002-32511)
Packing Size 840
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TFBGA-169
Package Name FBGA-169 (002-32511)
Packing Size 840
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's EZ-USB™ FX5 solution extends the legacy of EZ-USB™ FX3, the industry’s gold standard for USB peripheral controller, to the next level with the latest ultra-fast USB 5Gbps and updated LVCMOS interfaces increasing the total bandwidth up to 116% of its predecessor (3.7 Gbps vs. 3.2 Gbps).

Features

  • USB 3.2 Gen1 device port
  • Dual-core ARM® Cortex® M4F/M0+ CPU
  • Integrated 256 KB flash
  • 512 KB buffer memory
  • 32-bit LVCMOS interface @160MHz DDR
  • 7 serial communication blocks
  • USB full-speed device debug port
  • 2x I2S/PDM-PCM and GPIOs

Benefits

  • USB 5 Gbps performance
  • Up to 10-meter USB passive cable support
  • Integrated flash
  • Quick start development
  • USB Video Class, UVC, firmware ready
  • USB3 Vision firmware ready
  • Application notes for HW & SW
