CYRS17B01G-133AZMB
Active and preferred
RoHS Compliant
Lead-free

CYRS17B01G-133AZMB

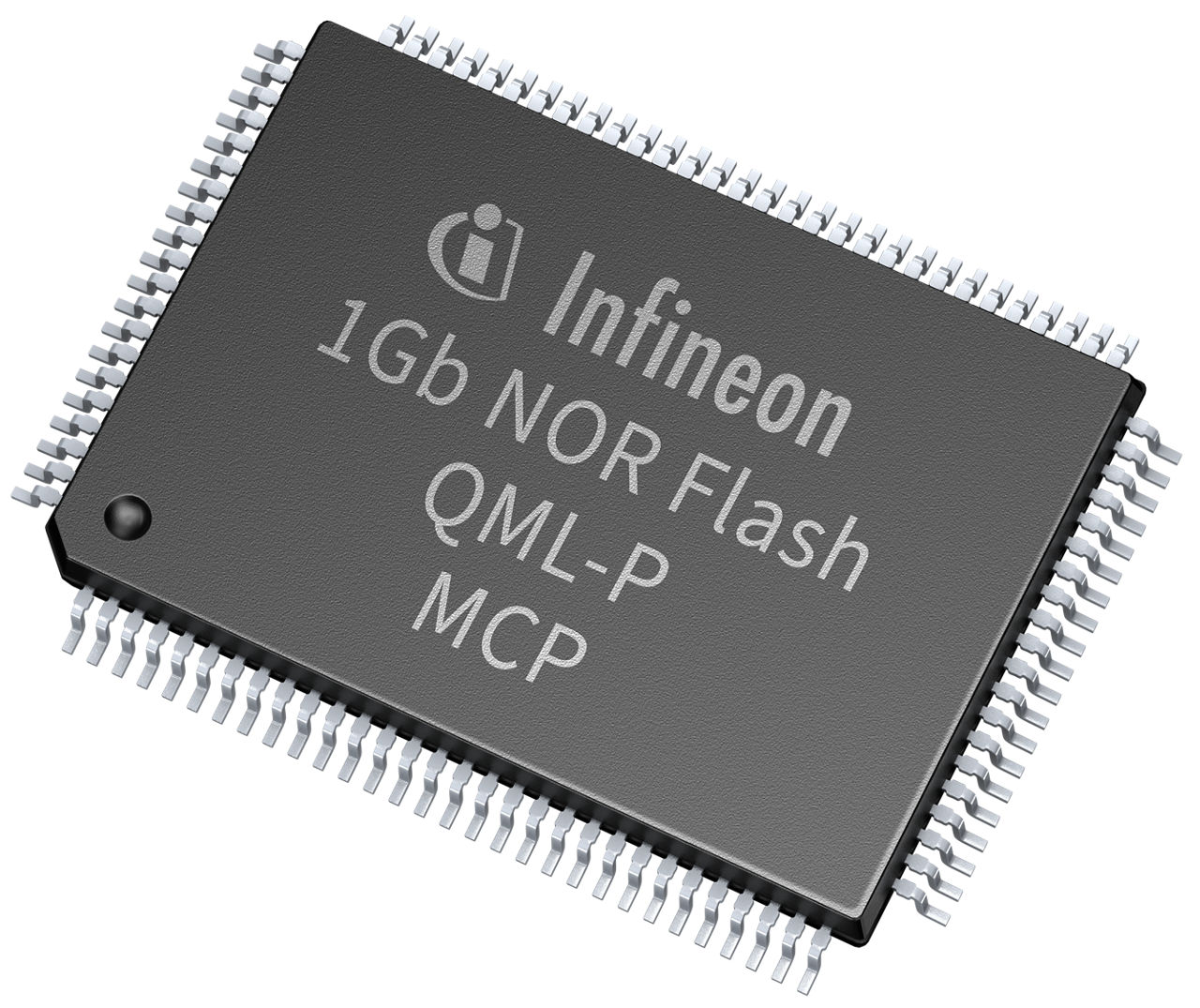

Infineon offers the space industry’s first QML qualified, radiation hardened by design, quad SPI (QSPI) NOR Flash
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYRS17B01G-133AZMB
CYRS17B01G-133AZMB
Datasheet


Product details

  • Density
    1024 MBit
  • Device weight
    9600 mg
  • Family
    NOR
  • Frequency
    133 MHz
  • Interfaces
    QSPI
  • Operating Temperature range
    -55 °C to 125 °C
  • Operating Voltage range
    2.97 V to 3.63 V
  • Organization (X x Y)
    x4
  • Package
    TQFP-100 (51-85050)
  • Planned to be available until at least
    2035
  • Qualification
    Military

Recommended
OPN
CYRS17B01G133AZMBXYSA1
Product Status active and preferred
Infineon Package
PG-TQFP-100
Package Name TQFP-100 (51-85050)
Packing Size 1
Packing Type CONTAINER
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes

Product Status
Active
Infineon Package
PG-TQFP-100
Package Name TQFP-100 (51-85050)
Packing Size 1
Packing Type CONTAINER
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon has expanded its line of radiation hardened NOR flash memory products, which offer the best combination of performance, density, and resistance to radiation and single event effects (SEE). Ideal for storing boot code and configuration images for space FPGAs.

Features

  • 1G bit density, QSPI at 133 MHz
  • 100 k cycle write/ infinite read endurance
  • 10-year data retention @ 125ºC
  • 1.8 V / 3.3 V I/O support
  • 100-pin TQFP package
  • DLAM qualified 5962 coming soon
  • Radiation performance
  • TID > 300krad
  • SEU IMMUNE
  • SEL > 80 LET MeV.cm2/mg [LET]
  • SEFI 2.77e-5 err/dev.day
