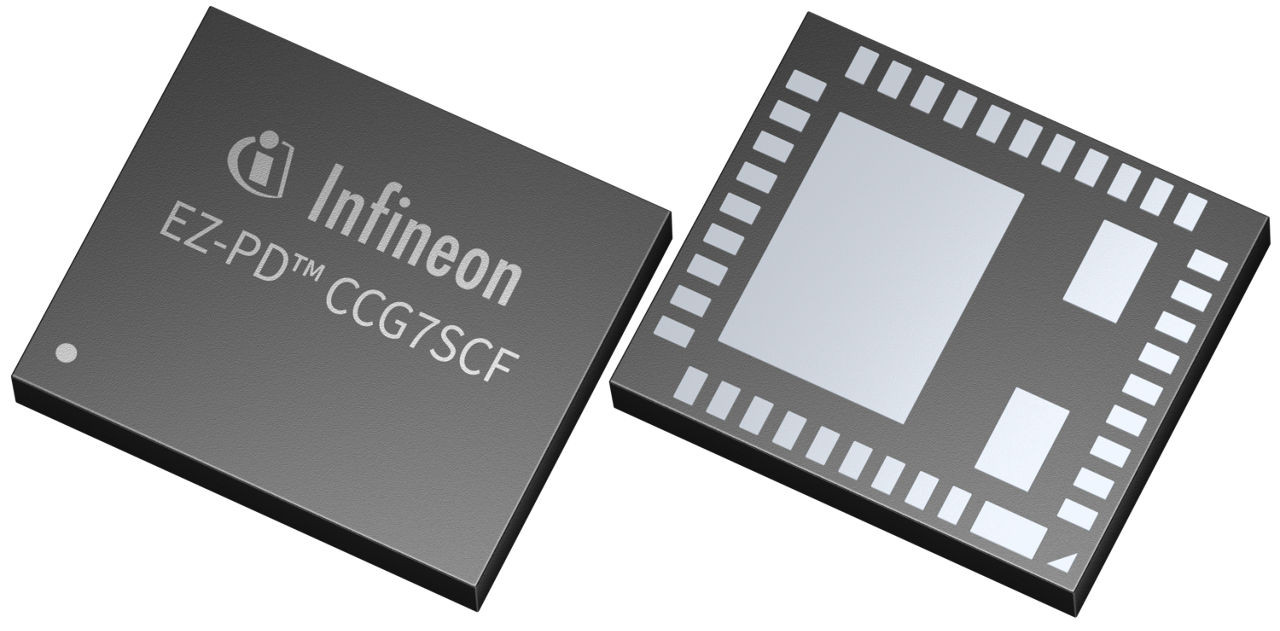

CYPD7173-39BFXQ

Tray packing option of EZ-PD™ CCG7SCF, integrated single-port USB-C PD + DC-DC + FETs controller for dock charging downstream port
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPD7173-39BFXQ
CYPD7173-39BFXQ
ea.
Data Sheet

Product details

  • Applications
    USB-C PD charger, Docking, wireless charging, CLA
  • Family
    EZ-PD™ CCG7SCF
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    5 V to 24 V
  • Package Type
    39-pin LGA
  • Product Category
    AC-DC DC-DC PD solutions
  • Product Description
    Single-port USB Type-C with PD, buck-boost controller, and FETs
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • Software Tools
    EZ-PD™ Configuration, ModusToolBox™
  • Temperature grade
    Extended Industrial
  • USB Standard
    USB-PD 3.2
  • VBUS Short Protection
    Y
  • VCONN FET
    Y
Recommended
OPN
CYPD717339BFXQXQLA1
Product Status active and preferred
Infineon Package
PG-TFLGA-39
Package Name N/A
Packing Size 3200
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TFLGA-39
Package Name -
Packing Size 3200
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CYPD7173-39BFXQ is the tray packing option of Infineon’s highly integrated single-port USB-C power delivery (PD) solution with the integrated DC-DC controller. It features a buck-boost controller, 2 switching FETs, and a 32-bit ARM® Cortex®-M0 processor. It's highly programmable, with 128 KB flash, 16 KB RAM, and 32 KB ROM. It is ideal for dock charging downstream port due to its back-to-back VBUS safe switch control

Features

  • USB PD 3.2 SPR with PPS and AVS
  • ARM® Cortex®-M0 processor MCU
  • 128 KB flash, 16 KB RAM, 32 KB ROM
  • Support buck and buck-boost config
  • Integrate buck switching FETs
  • Configurable DC-DC converters
  • DC-DC supports PSM and FCCM modes
  • 5 - 24 V input operating voltage
  • CC and I2C firmware upgrade
  • 13 GPIOs and 8 TCPWMs
  • Back-to-back VBUS FETs control
  • Tray package

Benefits

  • High system integration
  • Low system BOM
  • Highly programmable MCU
  • Highly configurable DC-DC
  • Support firmware upgrade
  • Software SDK support
