Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

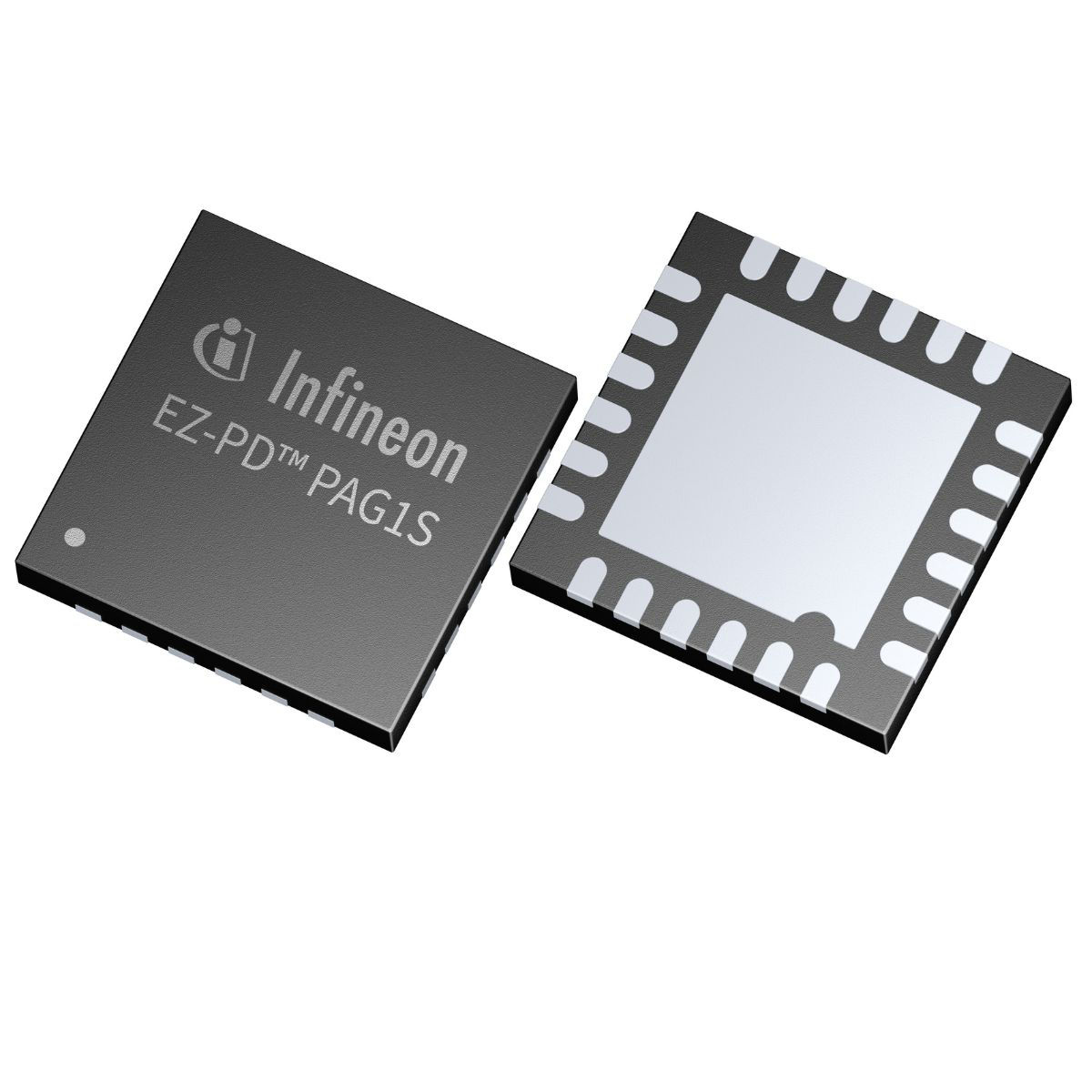

CYPD3184A1-24LQXQT

END OF LIFE
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYPD3184A1-24LQXQT
CYPD3184A1-24LQXQT
Data Sheet

Product details

  • Applications
    USB-C PD chargers and adapters
  • Family
    EZ-PD™ PAG1S
  • Flash
    64 kByte
  • Flyback converter type
    QR, CrCM, DCM, Burst Mode
  • GPIOs
    6
  • Operating Temperature
    -40 °C to 105 °C
  • Operating Voltage
    3.3 V to 21.5 V
  • Package Type
    24-pin QFN
  • Peak Reflow Temp
    260 °C
  • Product Category
    AC-DC DC-DC PD solutions
  • Product Description
    USB PD power adapter secondary side controller
  • Protection features (OVP, OCP, SCP and ESD)
    Y
  • Software Tools
    EZ-PD™ Configuration, PSoC™ Creator
  • SRAM
    4 kByte
  • Temperature grade
    Extended Industrial
  • USB Standard
    USB-PD 3.0
  • VBUS Short Protection
    Y
  • VCONN FET
    N
OPN
CYPD3184A1-24LQXQT
Product Status discontinued
Infineon Package
PG-VQFN-24
Package Name QFN-24 (002-16934)
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-VQFN-24
Package Name QFN-24 (002-16934)
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
