CYEL15B102Q-SXM

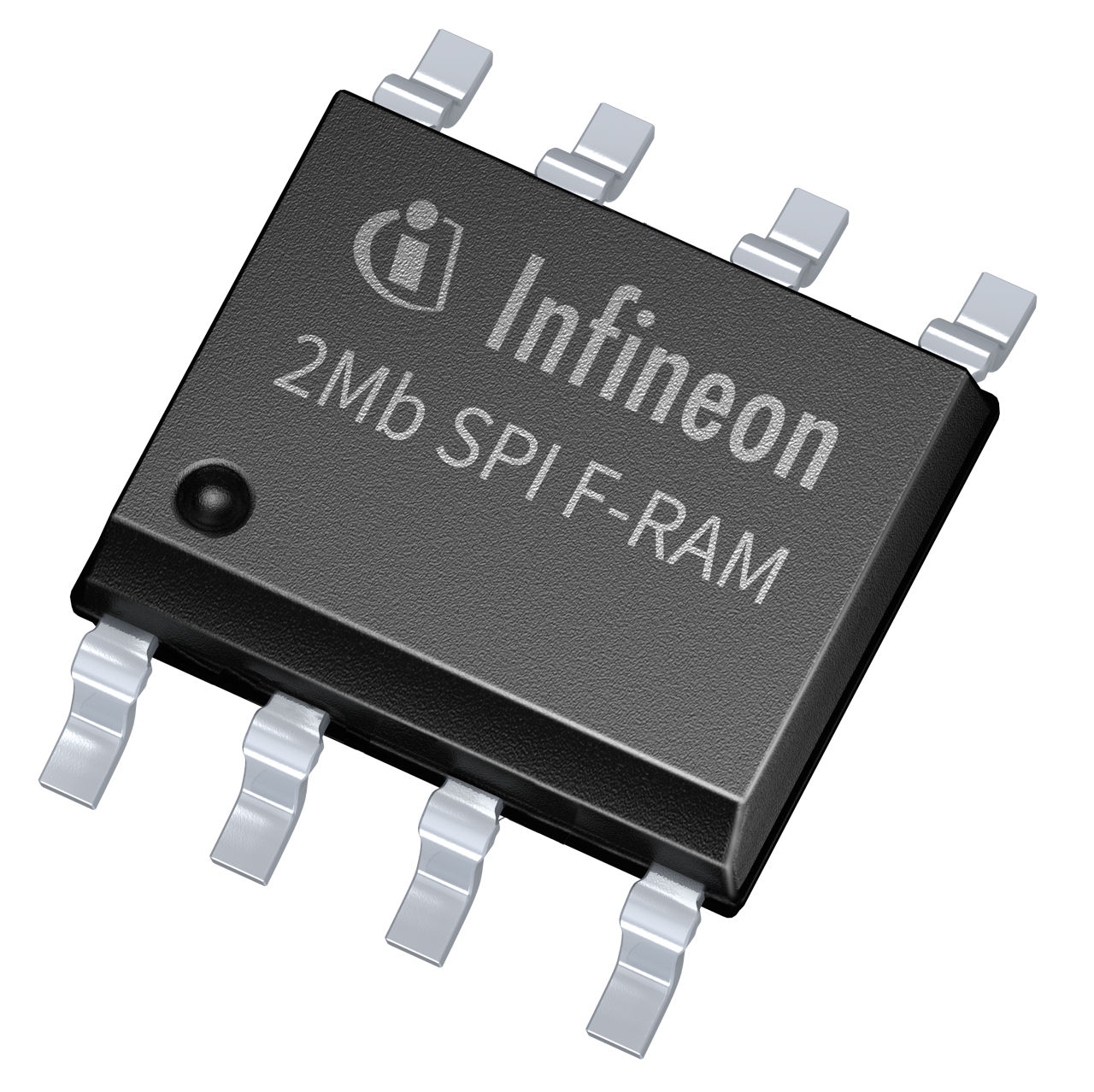

Radiation tolerant, highly reliable, small footprint, 2Mb non-volatile Serial Peripheral Interface (SPI) F-RAM for New Space
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYEL15B102Q-SXM
CYEL15B102Q-SXM
Data Sheet

Product details

  • Density
    2 MBit
  • Family
    F-RAM
  • Frequency
    25 MHz
  • Inductance
    SPI
  • Interfaces
    SPI
  • Lead Ball Finish
    Pb-free
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2 V to 3.6 V
  • Organization (X x Y)
    256K x 8
  • Package
    PG-SOIC-8
  • Peak Reflow Temp
    260 °C
  • Qualification
    Military
Recommended
OPN
CYEL15B102QSXMXLSA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name SOIC-8 (001-85261)
Packing Size 94
Packing Type TUBE
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSO-8
Package Name SOIC-8 (001-85261)
Packing Size 94
Packing Type TUBE
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Our radiation tolerant, 2Mb, SPI Ferroelectric RAM (F-RAM) is one of the industry’s lowest power, non-volatile memory solutions that is guaranteed to 50 Krad (Si) TID and virtually unlimited endurance. Infineon’s instant non-volatile write technology and greater than 100-year data retention provides the highest reliability for new space applications.

Features

  • Mb density
  • SPI interface operating up to 25 MHz
  • Infineon instant non-volatile write technology
  • 10-trillon read/write cycle endurance
  • 120 years data retention at +85°C
  • Extremely low programming voltage (2V)
  • 2.0 V–3.6 V operating voltage range
  • Low operating current (10 mA max)
  • –55°C/+125°C military temperature grade
  • 8-pin SOIC package

Benefits

  • AEC-Q006 compliant
  • ROHS compliant
  • 50 Krad (Si) TID radiation performance
  • Single Lot Date Code (SLDC)
  • 100% electrical testing coverage
  • Certificate of Conformance (CoC)

Applications
