Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
CY8C4248BZS-L489
END OF LIFE
discontinued
RoHS Compliant

CY8C4248BZS-L489

END OF LIFE
3D Hall sensor, extended precision, I2C, ASIL-B
Datasheet
package
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY8C4248BZS-L489
CY8C4248BZS-L489
Datasheet

Product details

  • ADC (#, Max. Resolution @ Sample Rate)
    SAR (1, 12-bit @ 1 msps)
  • Analog Blocks (Universal)
    0
  • CAN
    2
  • CapSense
    Yes
  • Classification
    ISO 26262-ready
  • Comparators
    2
  • Continuous Time Blocks
    4
  • CPU
    ARM Cortex-M0
  • DMA Channels
    32
  • ECO
    No
  • EEPROM
    0 kByte
  • Family
    PSOC™ Automotive 4200L
  • Flash
    256 kByte
  • Frequency max
    48 MHz
  • GPIOs
    98
  • I/O Pins (Smart)
    0
  • I/O Pins (SIO)
    2
  • I/O Pins
    98
  • JTAG and Si ID
    0x101311A0
  • LCD Direct Drive
    Yes
  • Lead Ball Finish
    Sn/Ag/Cu
  • LP Comparators
    2
  • On-chip Clock Generation (PLL)
    Y
  • Operating Temperature range
    -40 °C to 105 °C
  • Operating Voltage range
    1.71 V to 5.5 V
  • Operational Amplifier
    4
  • Peak Reflow Temp
    260 °C
  • Publish in NPSG
    Y
  • Publish in PSG
    Y
  • Required Kit
    None
  • SCB Blocks
    4
  • Serial Communication Blocks
    2
  • Smart IOs
    0
  • SRAM
    32 kByte
  • TCPWM Blocks
    8
  • Timer/Counter/PWM Blocks
    8
  • Universal Digital Blocks
    8
  • USB Full Speed
    Y
  • USB I/O
    2
  • USB Type
    USB 2.0 Full-Speed Client Controller
  • WCO
    No
OPN
CY8C4248BZS-L489
Product Status discontinued
Infineon Package
PG-VFBGA-124
Package Name VFBGA-124 (001-97718)
Packing Size 2600
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-VFBGA-124
Package Name VFBGA-124 (001-97718)
Packing Size 2600
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

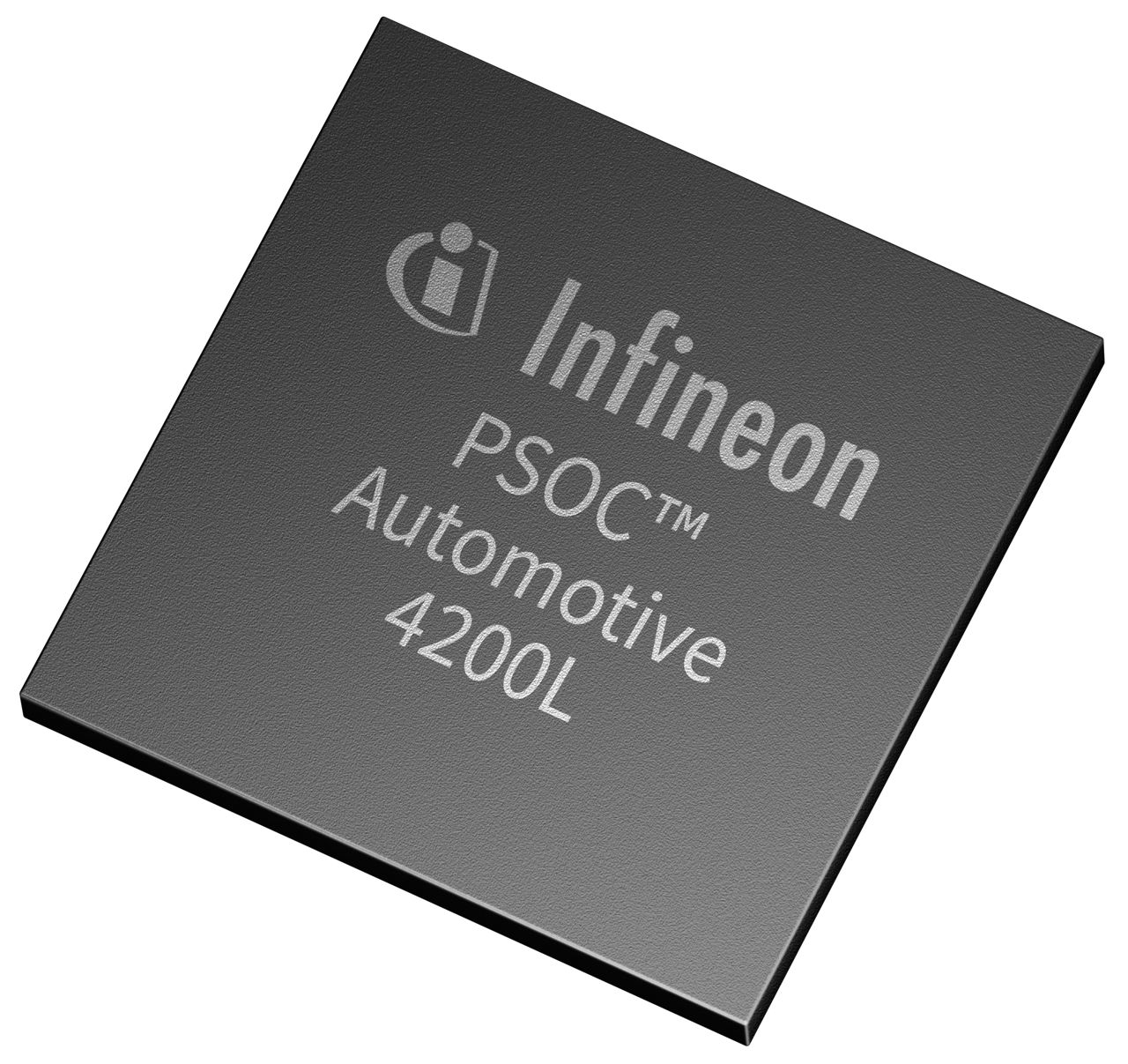

CY8C4248BZS-L489 is a product of the 32-bit Automotive PSOC™ 4200L family, featuring a single Arm Cortex-M0 processor running at 48 MHz. It offers 256 KB flash memory, 32 KB SRAM, and a 124-ball VFBGA package. This product combines an MCU with communication and timing peripherals, CAPSENSE™ capacitive touch-sensing system, and versatile analog capabilities. It meets AEC-Q100 standards and is ideal for HMI and sensing applications.

Features

  • Best accuracy package-size fit
  • Supply voltage 3.3 V and 5 V
  • ISO 26262 compliant (ASIL B)
  • Magnetic field range selectable
  • Extended precision
  • Wake-up feature
  • Integrated temperature measurement
  • Operating temperature -40°C to 150°C
  • I2C interface
  • available with different I2C addresses

Benefits

  • Broad application range
  • Small PCB footprint
  • Wide supply voltage range (2.8…5.5V)
  • Enables cost efficient magnetic design
  • Functional safety support
  • Low power consumption
  • Demo-boards, code examples available

Applications
