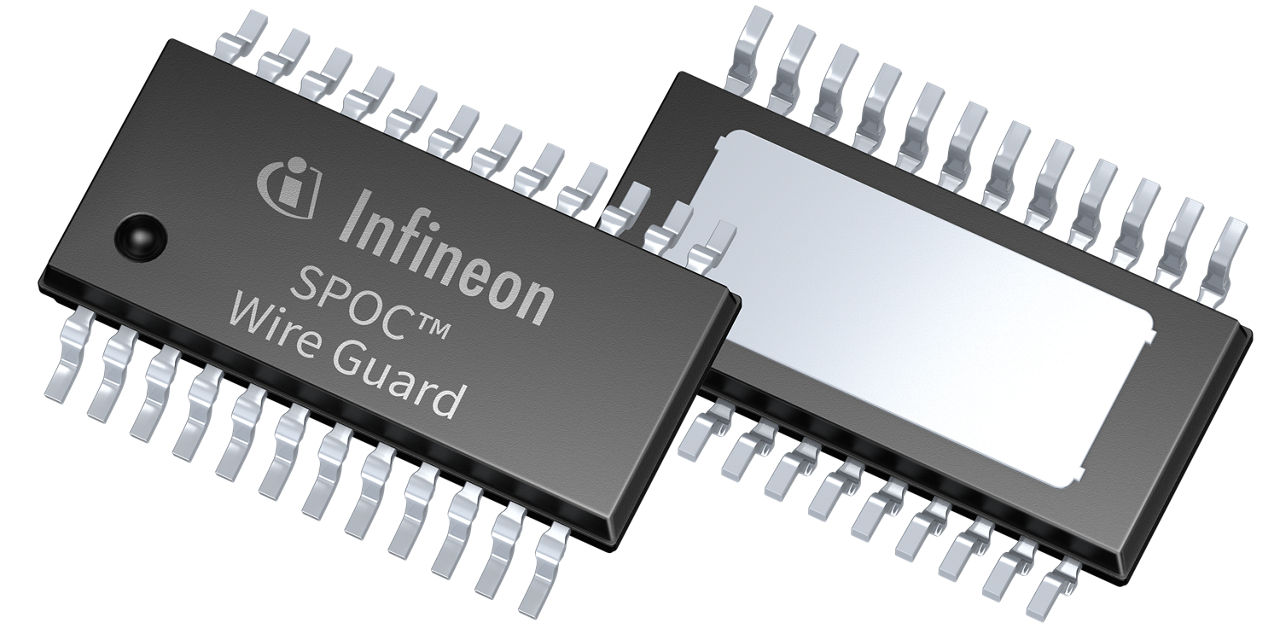

BTS80009-SWPF-1ES

12 V | 0.9 mΩ | 34.5 A | I²t wire protection | SPI | 1ch smart HS switch | ISO 26262-compliant | PG-TSDSO-24 | SPOC™ Wire Guard 12V
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS80009-SWPF-1ES
BTS80009-SWPF-1ES
Data Sheet

Product details

  • Certifications
    ISO 26262-compliant
  • Channels
    1
  • Configurable overcurrent protection
    73 A to 214 A
  • Cranking mode
    Yes
  • Daisy-Chain Capability
    Yes
  • Diagnostics
    digital diagnosis, Analog
  • Extended operating voltage
    2.8 V to 28 V
  • Family
    SPOC™ Wire Guard 12V
  • Halogen-free
    Yes
  • ID (multiple)
    3.42 A
  • ID(lim) min
    63.3 A
  • I²t wire protection range
    21.4 A to 38.3 A
  • Limp Home Feature
    Yes
  • Load Current
    34.5 A
  • Mounting
    SMT
  • Nominal Load Current per channel
    34.5 A
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Configurable Current Limitation
  • Planned to be available until at least
    2038
  • PWM Inputs
    0
  • Qualification
    Automotive
  • Quiescent Current max
    5 µA
  • Recommended Operating Voltage
    5 V to 20 V
  • SPI
    24 Bit
  • Standby Mode
    Yes
  • VDS(CL)
    33 V to 42 V
OPN
BTS80009SWPF1ESXUMA1
Product Status coming soon
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The BTS80009-SWPF-1ES is a single-channel high-side power switch and member of the SPOC™ Wire Guard family. The device is providing protection functions like configurable I²t wire protection and overcurrent limitation. It also features Idle Mode, Non-volatile memory, enhanced digital diagnosis (incl. pre-warning) and Capacitive load switching mode.

Features

  • High-side switch with self protection
  • Daisy chain capable 24-bit SPI with CRC
  • SPI configurable I²t wire protection
  • SPI configurable overcurrent limitation
  • SPI configurable device configuration
  • Active supply during parking (Idle mode)
  • Enhanced digital diagnosis & pre-warning
  • SPI configurable undervoltage lockout
  • Non-volatile memory
  • Switchability check to diagnose stuck@ON
  • Capacitive load switching mode
  • PRO-SIL™ ISO 26262 compliant

Benefits

  • High configurability via software
  • Precise isothermal wire protection
  • Load shedding to protect power supply
  • Integrated fast failure isolation
  • Customer configurable safe state via NVM
  • Support of fast system start up
  • Charging of capacitors up to 20 mF
  • Unload microcontroller by pre-warning
  • Support operation without logic supply
  • Idle mode with low power consumption
  • Dynamic load control during parking
  • ISO 26262-compliant up to ASIL-D
