BTS7050-2EPL

The BTS7050-2EPL is a Smart High-Side Power Switch, providing protection functions and diagnosis
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS7050-2EPL
BTS7050-2EPL
ea.
Data Sheet

Product details

  • Certifications
    ISO 26262-ready
  • Channels
    2
  • Classification
    ISO 26262-ready
  • Current Limit
    7.45 A to 11.5 A
  • Diagnostics
    Sense
  • Family
    PROFET™ +2 12V
  • Halogen-free
    yes
  • IL Nominal Current (@ TA = 85°C)
    3 A
  • Load Current
    3 A
  • Mounting
    SMT
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    100 mΩ
  • RDS (on) (@ Tj = 25°C)
    50 mΩ
  • Recommended Operating Voltage
    3 V to 28 V
  • toff (Turn OFF time) max
    220 µs
  • ton (Turn ON time) max
    210 µs
  • Undervoltage Recovery Delay
    No
Recommended
OPN
BTS70502EPLXUMA1
Product Status active and preferred

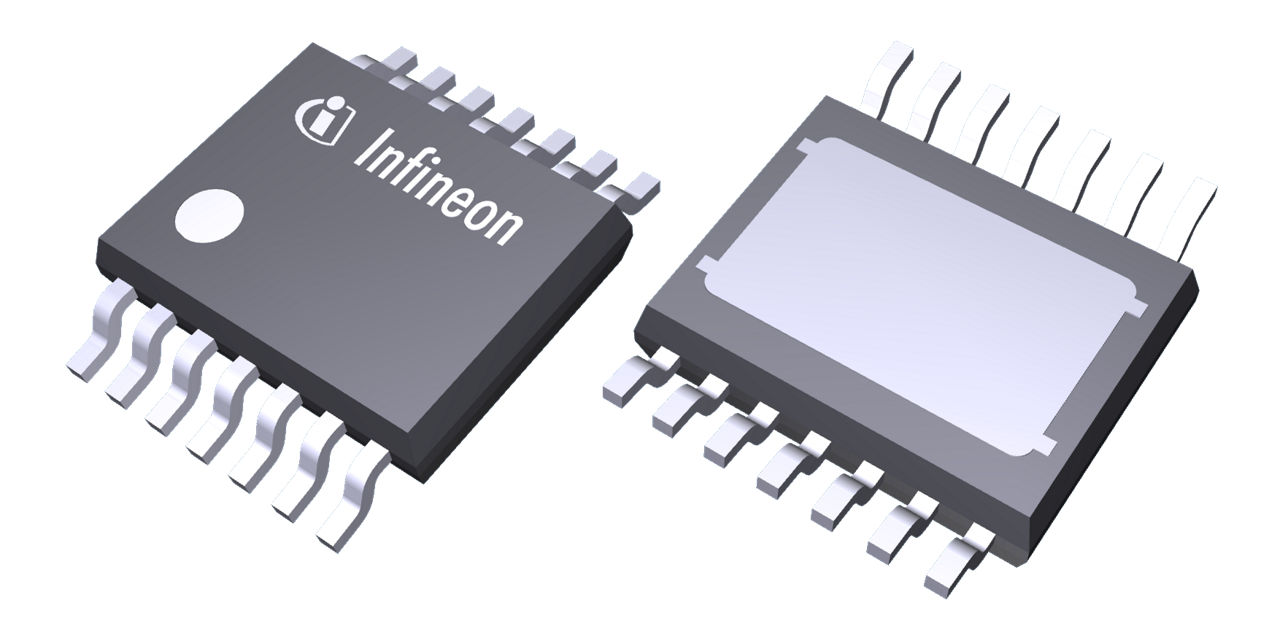

Infineon Package
PG-TSDSO-14
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The product has a Capacitive Load Switching mode implemented to charge capacitive loads and to reduce current peaks during switch on of capacitors.

Features

  • High-Side Switch with Diagnosis&Embedded
  • Part of PROFET™+2 12V Family
  • Switch ON capability while(Inverse ON)
  • Capacitive load switching mode
  • Qualified in accordance AEC Q100 grade 1
  • Protection FeaturesAbsolute
  • Undervoltage shutdown
  • OverV protection with extern components
  • Proportional load current sense
  • Open Load in ON and OFF state
  • Short circuit to ground and battery

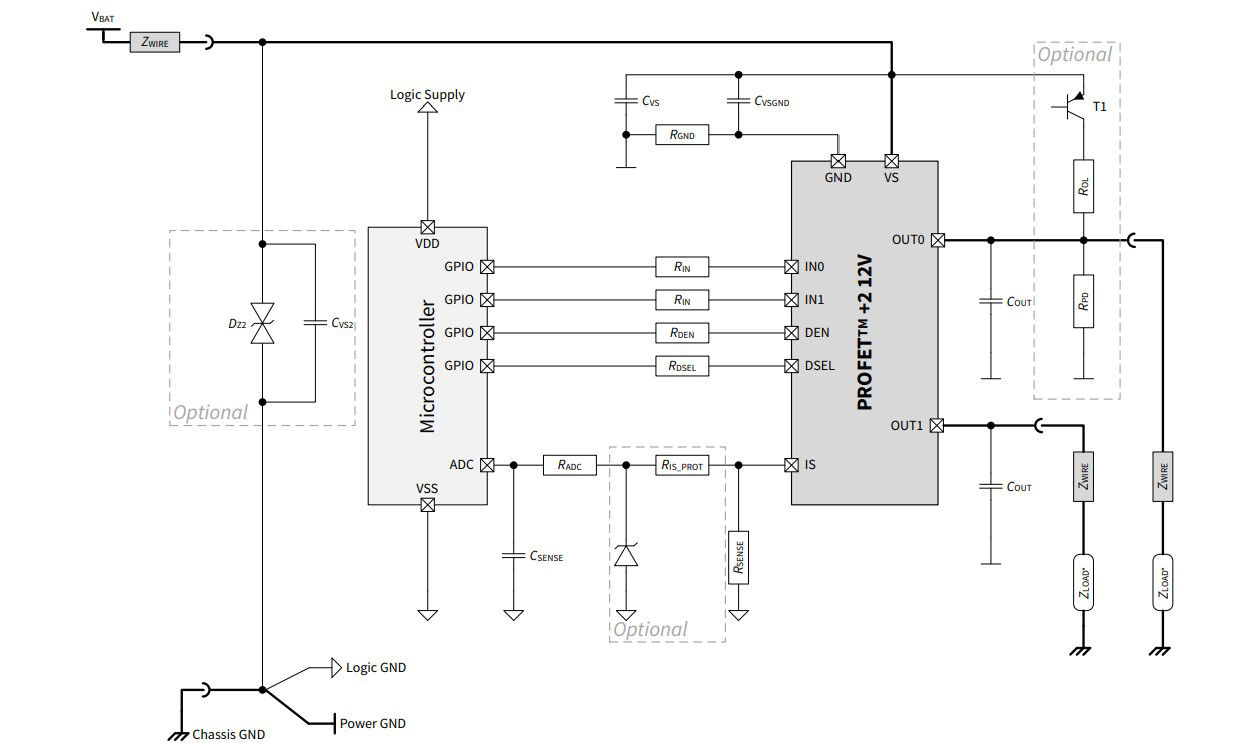

Diagrams

BTS7090-2EPL-Diagram
BTS7090-2EPL-Diagram
BTS7090-2EPL-Diagram BTS7090-2EPL-Diagram BTS7090-2EPL-Diagram
×
