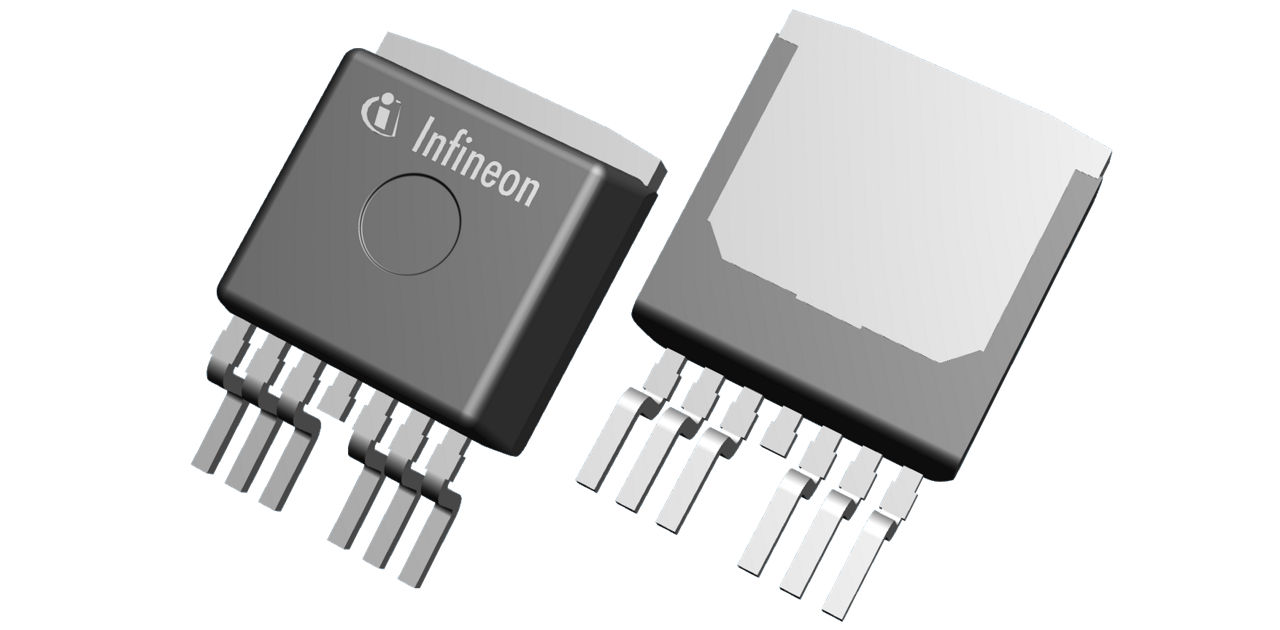

BTS640S2G

High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS640S2G
BTS640S2G
ea.
Data Sheet

Product details

  • Channels
    1
  • Diagnostics
    Sense
  • Family
    Classic PROFET™ 24V
  • IL (Short Circuit Current)
    40 A
  • Load Current
    4.5 A
  • Nominal Load Current per channel (All channels active)
    4.5 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    60 mΩ
  • RDS (on) (@ Tj = 25°C)
    27 mΩ
  • Recommended Operating Voltage
    5 V to 34 V
Recommended
OPN
BTS640S2GATMA1
Product Status active and preferred
Infineon Package
PG-TO263-7
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO263-7
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Short circuit protection
  • Current limitation
  • Proportional load current sense
  • CMOS compatible input
  • Open drain diagnostic output
  • Fast demagnetization of inductive loads
  • Undervoltage and overvoltage shutdown
  • Overload protection
  • Thermal shutdown
  • Overvoltage protection inc. load dump
  • Reverse battery protection
  • Loss of ground & loss of Vbb protection

Benefits

  • High voltage capability
  • Benchmark energy robustness
