BTS50055-1TMB

END OF LIFE
High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions
Data Sheet

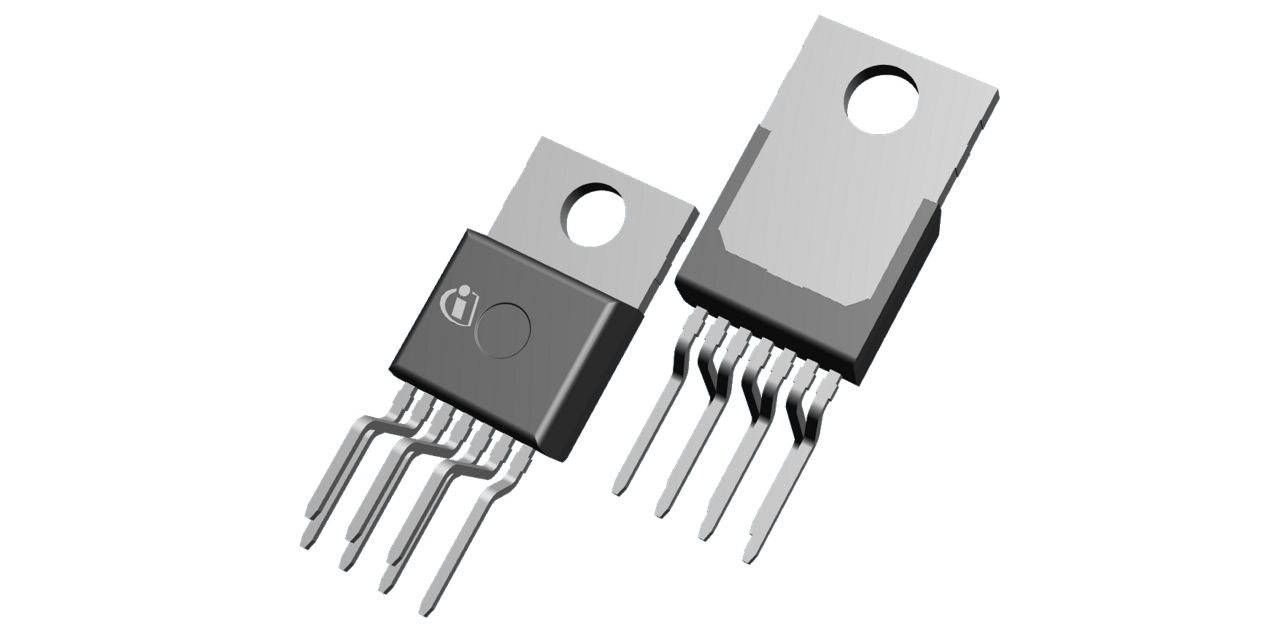

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS50055-1TMB
BTS50055-1TMB
Data Sheet

Product details

  • Channels
    1
  • Classification
    n.a
  • Current Limit min
    65 A
  • Diagnostics
    Sense
  • Family
    Classic PROFET™ 12V
  • IL (Short Circuit Current)
    65 A
  • Load Current
    17 A
  • Mounting
    THT
  • Nominal Load Current per channel (All channels active)
    17 A
  • Operating Temperature
    -40 °C to 150 °C
  • Currently planned availability until at least
    n.a
  • Ptot max
    170 W
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    4.4 mΩ
  • RDS (on) (@ Tj = 150°C) max
    10.5 mΩ
  • Recommended Operating Voltage
    5 V to 34 V
  • toff (Turn OFF time) max
    200 µs
  • ton (Turn ON time) max
    470 µs
  • Undervoltage Recovery Delay
    n.a
OPN
BTS500551TMBAKSA1
Product Status discontinued
Infineon Package
PG-TO220-7
Package Name N/A
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-TO220-7
Package Name -
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • Overload protection
  • Current limitation
  • Short circuit protection
  • Over temperature protection
  • Over voltage protection (including load dump)
  • Clamp of negative voltage at output
  • Fast deenergizing of inductive loads 1)
  • Low ohmic inverse current operation
  • Reversave (Reverse battery protection)
  • Diagnostic feedback with load current sense
  • Open load detection via current sense
  • Loss of Vbb protection 2)
  • Electrostatic discharge (ESD) protection
  • Green product (RoHS compliant)
  • AEC qualified

Benefits

  • High load current capability
  • High inrush current capability
  • High energy capability
  • Integrated protection functionality
  • Integrated diagnosis functionality

Applications
