Active and preferred
RoHS Compliant
Lead-free

BTS4300SGA

The BTS4300SGA is a single channel Smart High-Side Power Switch.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTS4300SGA
BTS4300SGA
ea.
Data Sheet

Product details

  • Channels
    1
  • Current Limit min
    0.4 A
  • Diagnostics
    Digital
  • Family
    Classic PROFET™ 12V
  • IL (Short Circuit Current)
    4 A
  • Load Current
    0.4 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    0.4 A
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2039
  • Ptot max
    1.5 W
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    300 mΩ
  • RDS (on) (@ Tj = 150°C) max
    600 mΩ
  • Recommended Operating Voltage
    5 V to 34 V
  • toff (Turn OFF time) max
    170 µs
  • ton (Turn ON time) max
    140 µs
Recommended
OPN
BTS4300SGAXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
It is embedded in a PG-DSO-8-24 package, providing protective functions and diagnostics. The power transistor is built by a N-channel power MOSFET with charge pump. The device is monolithically integrated in Smart technology. It is specially designed to drive Relay or LED in the harsh automotive environment.

Features

  • Fit for 12V application
  • Overload protection
  • Current limitation
  • Short circuit protection
  • Thermal shutdown with restart
  • Overvoltage protection (inc. load dump)
  • Fast demagnetizing of inductive loads
  • Reverse battery protection
  • Open drain diagnostic output
  • Open load detection in OFF-state
  • CMOS compatible input
  • Loss GND and loss Vbb protection

Benefits

  • Voltage clamped with inductive loads
  • Flags a fail event (Status pin)
  • Current limitation
  • Very low standby current
  • Thermal shutdown with restart
  • ESD-Protection

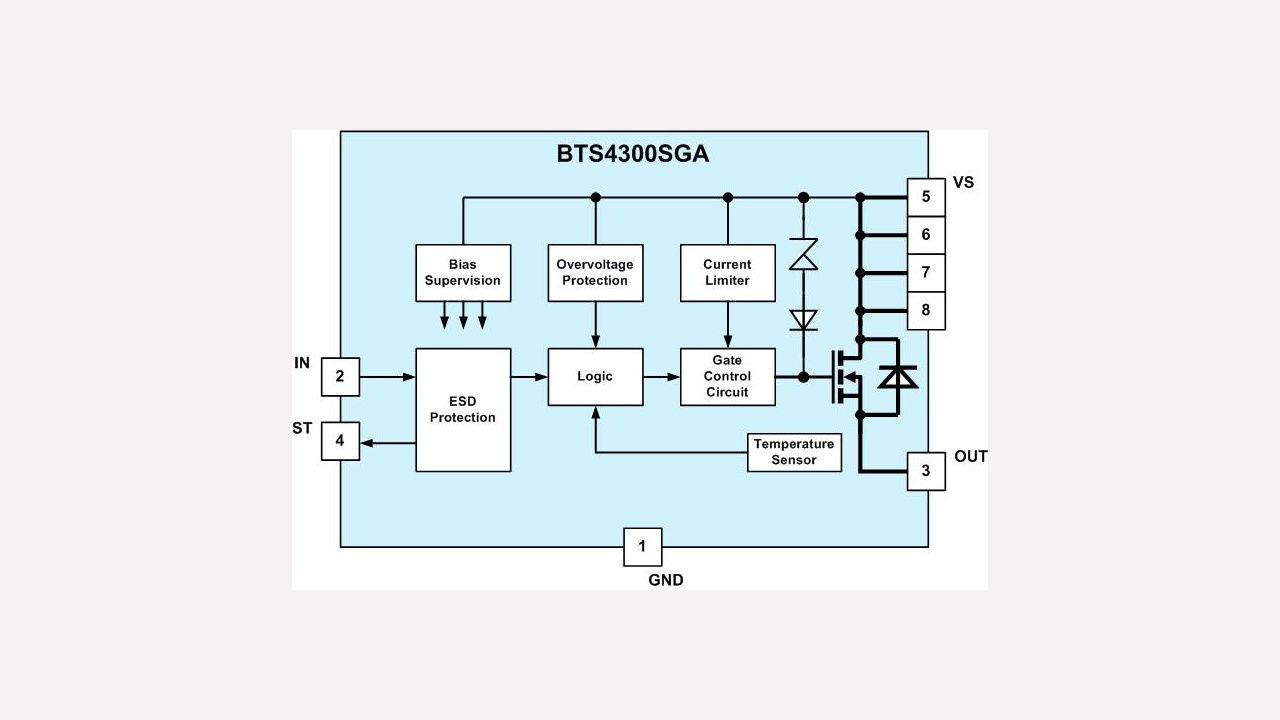

Diagrams

BTS4300SGA
BTS4300SGA
BTS4300SGA BTS4300SGA BTS4300SGA
×
