Active and preferred
RoHS Compliant

BSG0813NDI

Data Sheet

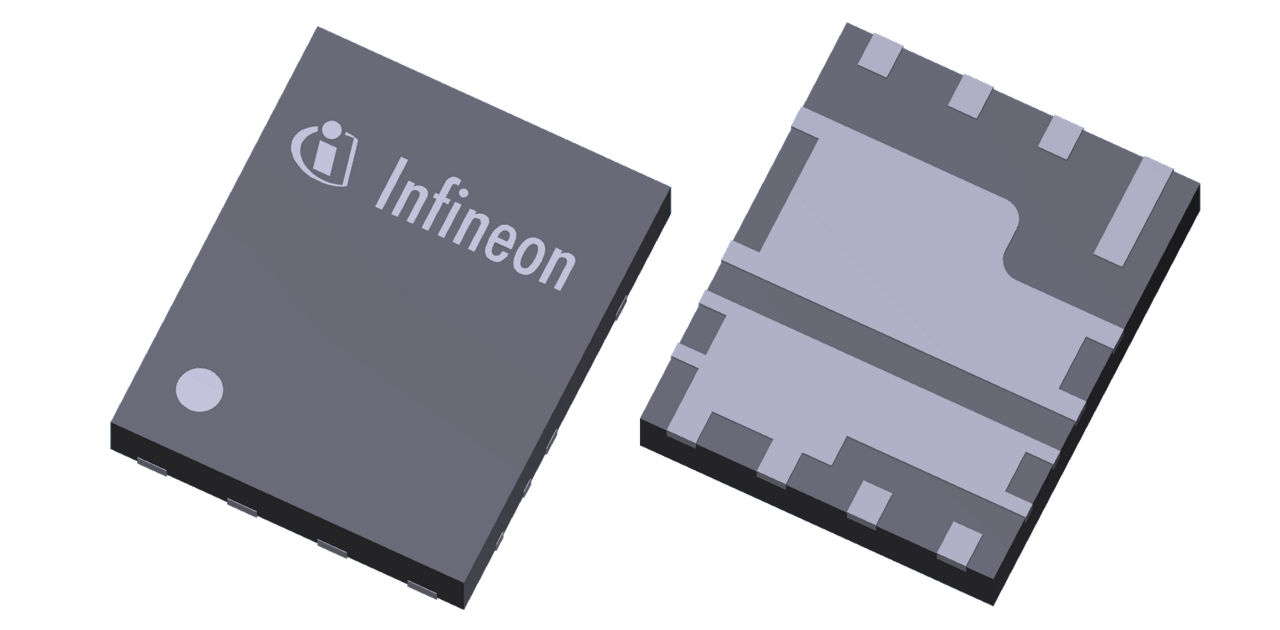

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSG0813NDI
BSG0813NDI
Data Sheet

Product details

  • Budgetary Price €/1k
    0.73
  • Ciss
    2200 pF, 780 pF
  • Coss
    1300 pF, 390 pF
  • ID (@25°C) max
    50 A, 50 A
  • IDpuls max
    160 A
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    Power Block 5x6
  • Polarity
    N+N
  • Ptot max
    2.5 W, 2.5 W
  • QG (typ @4.5V)
    5.6 nC, 15 nC
  • RDS (on) (@4.5V LL) max
    4 mΩ, 1.7 mΩ
  • RDS (on) (@4.5V) max
    4 mΩ, 1.7 mΩ
  • RDS (on) (@10V) max
    3 mΩ, 1.2 mΩ
  • RthJA max
    50 K/W
  • Rth
    4.3 K/W, 2.2 K/W
  • Special Features
    Monolithically Integrated Schottky-like Diode
  • VDS max
    25 V, 25 V
  • VGS(th)
    1.6 V
Recommended
OPN
BSG0813NDIATMA1
Product Status active and preferred
Infineon Package
PG-TISON-8
Package Name SuperSO8 5x6
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TISON-8
Package Name SuperSO8 5x6
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
OptiMOS™ 5 Power Block is a leadless SMD package in a 5.0x6.0mm² package outline, including a low-side and a high-side MOSFET in a synchronous buck converter configuration. By replacing two separate discrete packages, such as SO8 or SuperSO8, with the OptiMOS™ 5 Power Block, customers can shrink their designs up to 85%. Standardizing power packages benefits the customer, as the number of different package outlines available in the market place is minimized.

Features

  • 50A max average load current
  • Source-down low side MOSFET
  • Internally connected low and high side
  • Kelvin connection for efficient driving

Benefits

  • Compact layout for DC-DC converters
  • Optimized layout w/ low loop inductance
  • Good thermal performance
