Active and preferred
RoHS Compliant

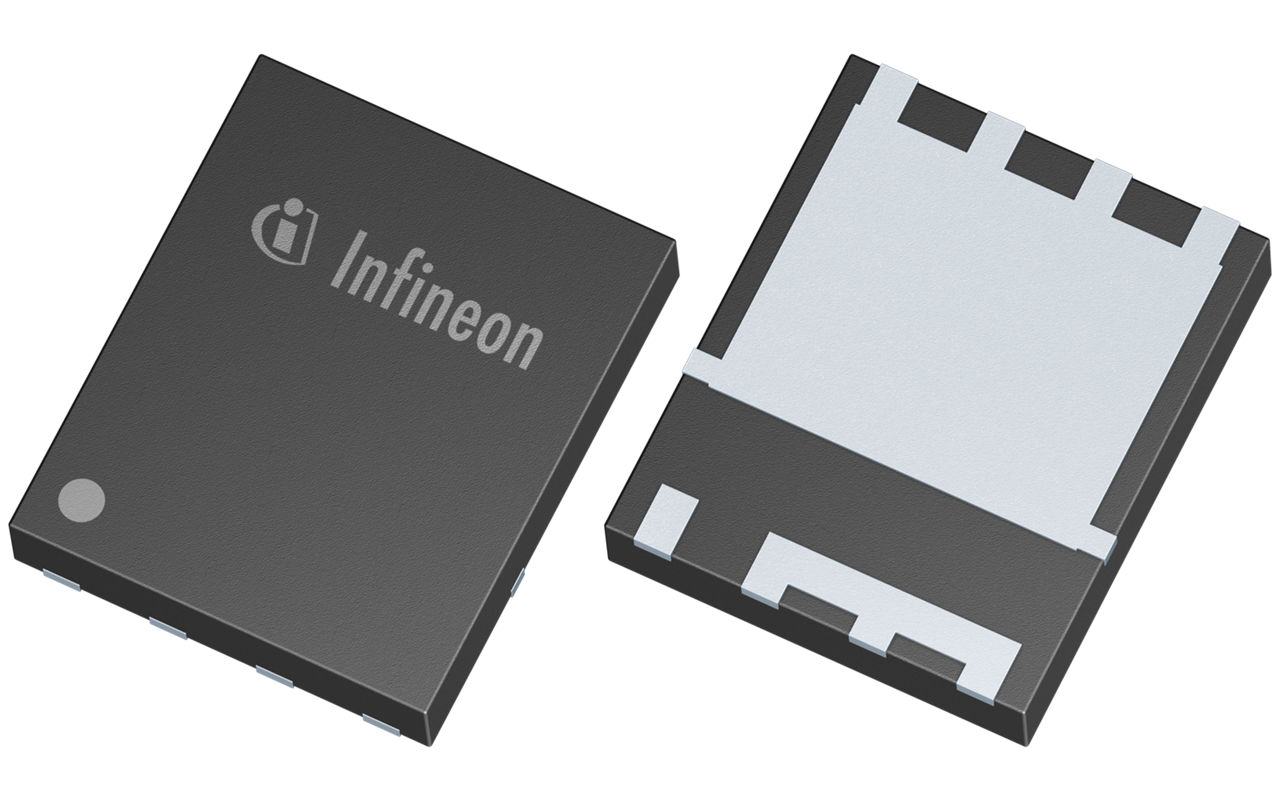

BSC012N06NS

OptiMOS™ power MOSFETs in SuperSO8 package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSC012N06NS
BSC012N06NS
Data Sheet

Product details

  • Battery voltage
    24-36 V
  • Budgetary Price €/1k
    1.21
  • ID (@25°C) max
    306 A
  • ID (@ TC=25°C) max
    306 A
  • IDpuls max
    1224 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    SuperSO8 5x6
  • Pin Count
    8 Pins
  • Polarity
    N
  • Ptot max
    214 W
  • QG (typ @10V)
    115 nC
  • RDS (on) (@10V) max
    1.2 mΩ
  • Special Features
    Fused leads
  • VDS max
    60 V
  • VGS(th)
    2.8 V
Recommended
OPN
BSC012N06NSATMA1
Product Status active and preferred
Infineon Package
PG-TSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon's OptiMOS™ MOSFETs in SuperSO8 package extend OptiMOS™ 3 and 5 product portfolio and enable higher power density in addition to improved robustness, responding to the need for lower system cost and increased performance. Low reverse recovery charge (Qrr) improves the system reliability by providing a significant reduction of voltage overshoot, which minimizes the need for snubber circuits, resulting in less engineering cost and effort.

Features

  • Lowest RDS(on) enables highest power density and efficiency
  • Higher operating temperature rating to 175°C for increased reliability
  • Low RthJC for excellent thermal behavior
  • Lower reverse recovery charge (Qrr)

Benefits

  • Lower full load temperature
  • Less paralleling
  • Reduced overshoot
  • Increased system power density
  • Smaller size
  • System cost reduction
  • Engineering costs and effort reduction
