BSB104N08NP3 G

Data Sheet

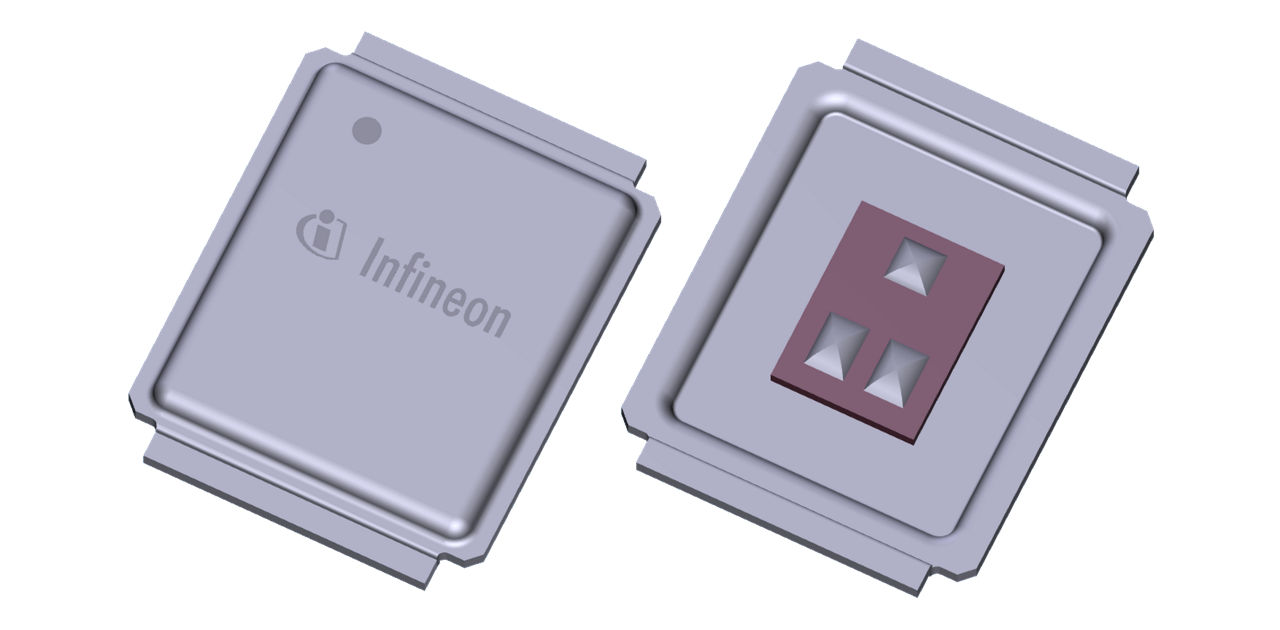

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BSB104N08NP3 G
BSB104N08NP3 G
Data Sheet

Product details

  • Budgetary Price €/1k
    0.4, 0.4
  • Ciss
    1600 pF
  • Coss
    430 pF
  • ID (@25°C) max
    50 A
  • IDpuls max
    200 A
  • Micro-stencil
    IRF66MP-25
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    DirectFET (M)
  • Polarity
    N
  • Ptot max
    42 W
  • QG (typ @10V)
    23 nC
  • RDS (on) (@10V) max
    10.4 mΩ
  • RthJA max
    45 K/W
  • RthJC max
    3 K/W
  • Rth
    3 K/W
  • VDS max
    80 V
  • VGS(th)
    2.7 V
Recommended
OPN
BSB104N08NP3GXUMA2 BSB104N08NP3GXUMA1 BSB104N08NP3GXUSA1
Product Status active active discontinued
Infineon Package
MG-WDSON-5
MG-WDSON-5
MG-WDSON-2
Package Name DirectFET (M) N/A DirectFET (M)
Packing Size 4800 5000 5000
Packing Type TAPE & REEL TAPE & REEL TAPE & REEL
Moisture Level 3 3 3
Moisture Packing DRY DRY DRY
Lead-free Yes Yes Yes
Halogen Free Yes Yes Yes
RoHS Compliant Yes Yes Yes
Infineon stock last updated:
View replacement

Product Status
Active
Infineon Package
MG-WDSON-5
Package Name DirectFET (M)
Packing Size 4800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package
MG-WDSON-5
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package
MG-WDSON-2
Package Name DirectFET (M)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
OptiMOS™ is the market leader in highly efficient solutions for power generation (e.g. solar micro inverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle).

Features

  • Optimized for DC-DC converters
  • Excellent gate charge
  • Superior thermal resistance
  • Dual-side cooling
  • Low parasitic inductance
  • Low profile (<0,7mm)
  • N-channel, normal level
  • 100% avalanche tested
  • Pb-free plating; RoHS compliant
