BGT60ATR24C

XENSIV™ 60GHz radar sensor for automotive sensing
Data Sheet
package
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGT60ATR24C
BGT60ATR24C
Data Sheet

Product details

  • Angle of Arrival
    yes
  • Antenna
    External
  • Family
    XENSIV™ 60GHz Radar Sensors
  • Frequency
    58 GHz to 62 GHz
  • Number of Rx Antennas
    4
  • Number of Tx Antennas
    2
  • Qualification
    Automotive
  • Supply Voltage
    1.8 V
  • Target Application
    High resolution FMCW radars, Radar frontend for gesture sensing, High resolution FMCW radars, Short range sensing operations, Hidden sensing applications behind radome, Automotive
  • Temperature Range
    -40 to + 105°C
Recommended
OPN
BGT60ATR24CE6327XTMA1
Product Status active and preferred
Infineon Package
PG-VFWLB-76
Package Name N/A
Packing Size 3500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VFWLB-76
Package Name -
Packing Size 3500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
XENSIV™ BGT60ATR24C, an automotive 60 GHz radar sensor, enables ultra-wide bandwidth FMCW operation in a small package. Sensor configuration and data acquisition are enabled with a digital interface and the integrated state machine enables independent data acquisition with power mode optimization for lowest power consumption.

Features

  • 60 GHz radar sensor for FMCW operation
  • 4 GHz bandwidth
  • 2 TX / 4 RX channels
  • Digital interface for chip configuration and radar data acquisition
  • Optimized power modes for low-power operation
  • Integrated state machine for independent operation
  • AEC-Q100/101 qualified

Benefits

  • Low power consumption
  • Accurate and robust performance
  • Excellent thermal management
  • Size and space optimized solution

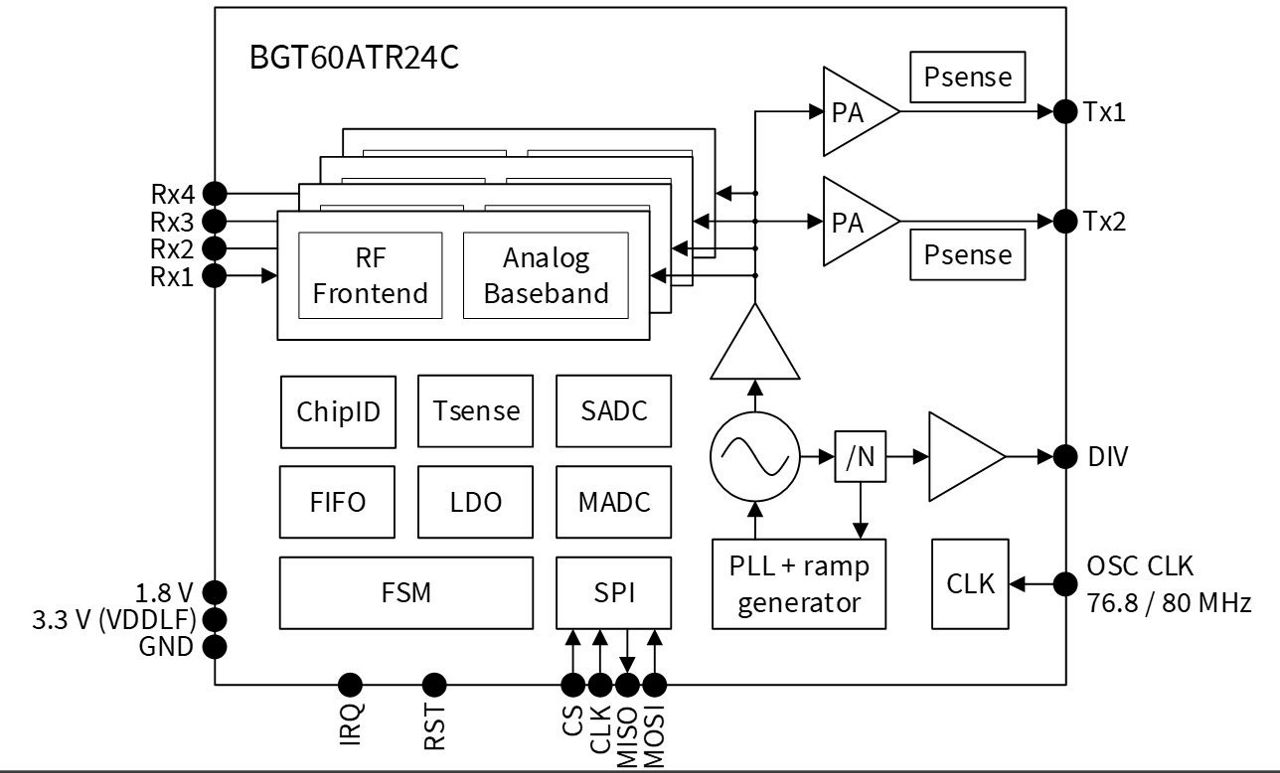

Diagrams

BGT60ATR24C_BlockDiagram
BGT60ATR24C_BlockDiagram
BGT60ATR24C_BlockDiagram BGT60ATR24C_BlockDiagram BGT60ATR24C_BlockDiagram
×
