PG-VFWLB-76-1

Download 3D model

Package details

  • Package Material
    PG
  • Package Family
    PG-VFWLB
  • Terminals
    76
  • Variant
    1
  • Exposed Paddle
    No
  • Body Length (mm)
    6.0
  • Body Width (mm)
    6.0
  • Min. Terminal Pitch (mm)
    0.5
  • TAPE & REEL
    Pieces/Reel
    Reels/Box
    Reel diameter (mm)

    3500
    1
    330
Infineon wafer level ball grid array packages (WLB) are offered as various families. They are available as very thin (V), very very thin (W), ultra thin (U), and extemely thin (X) versions. Alternative and legacy designations are embedded WLB (eWLB), wafer level chip scale package (WLCSP) or wafer level ball grid array (WLBGA) package. The embedded WLB feature a minimum plastic mold body that can be rectangular or square. They are chip scale packages with fan-in/fan-out redistribution layer that marginally extends over the silicon die. The pre-soldered ball-shaped terminations allow for high-throughput board mounting using surface mount technology (SMT). Typical products are radar sensors, micro controllers, magnetic sensors, and more.

Image Gallery

PG-VFWLB-76-1_Package Outline
PG-VFWLB-76-1_Package Outline

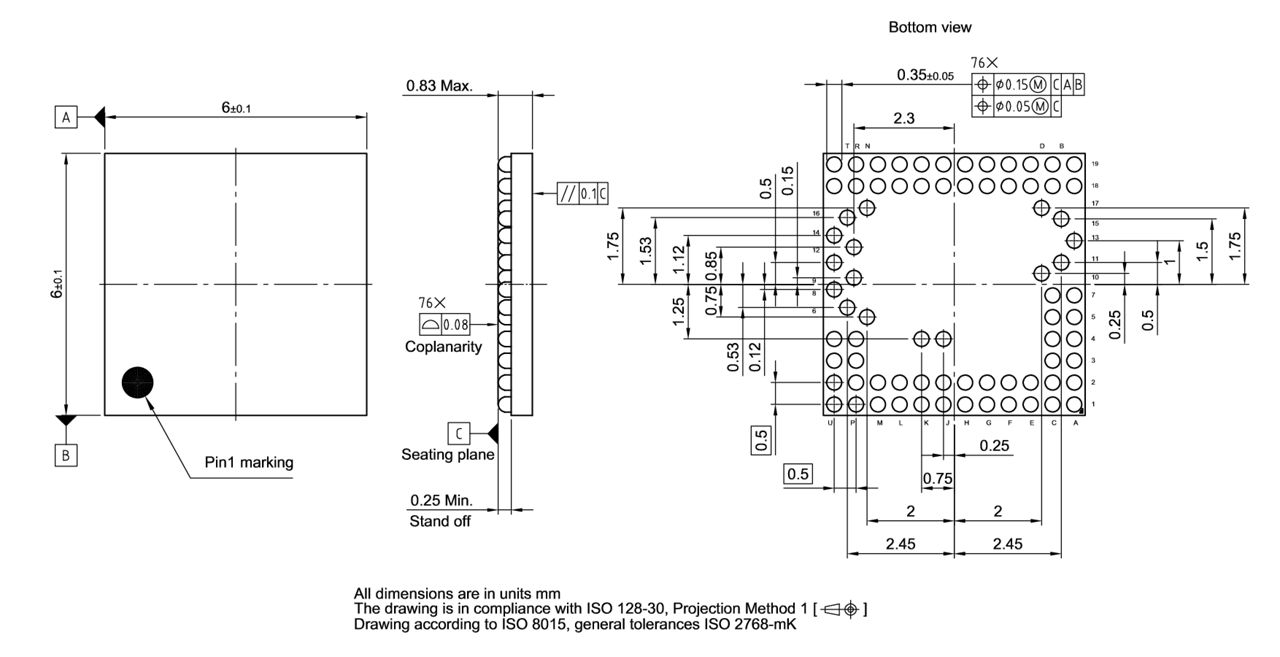

PG-VFWLB-76-1_Package Outline PG-VFWLB-76-1_Package Outline PG-VFWLB-76-1_Package Outline

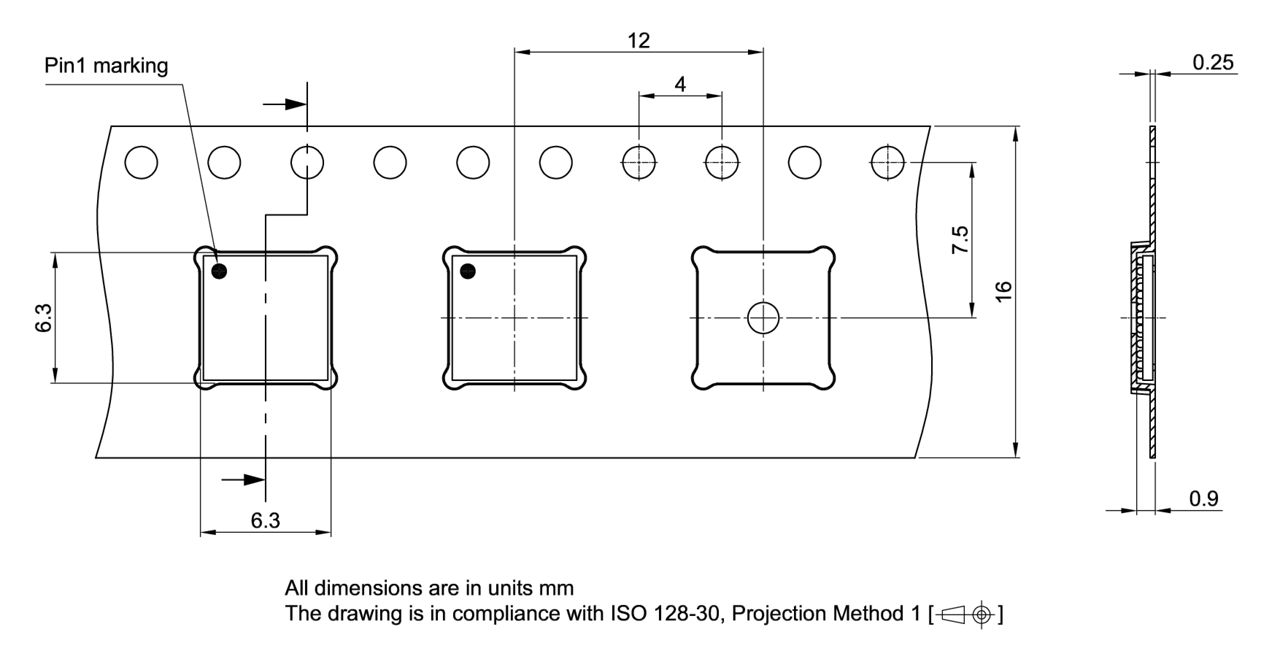

PG-VFWLB-76-1_Tape and Reel_01 PG-VFWLB-76-1_Tape and Reel_01 PG-VFWLB-76-1_Tape and Reel_01

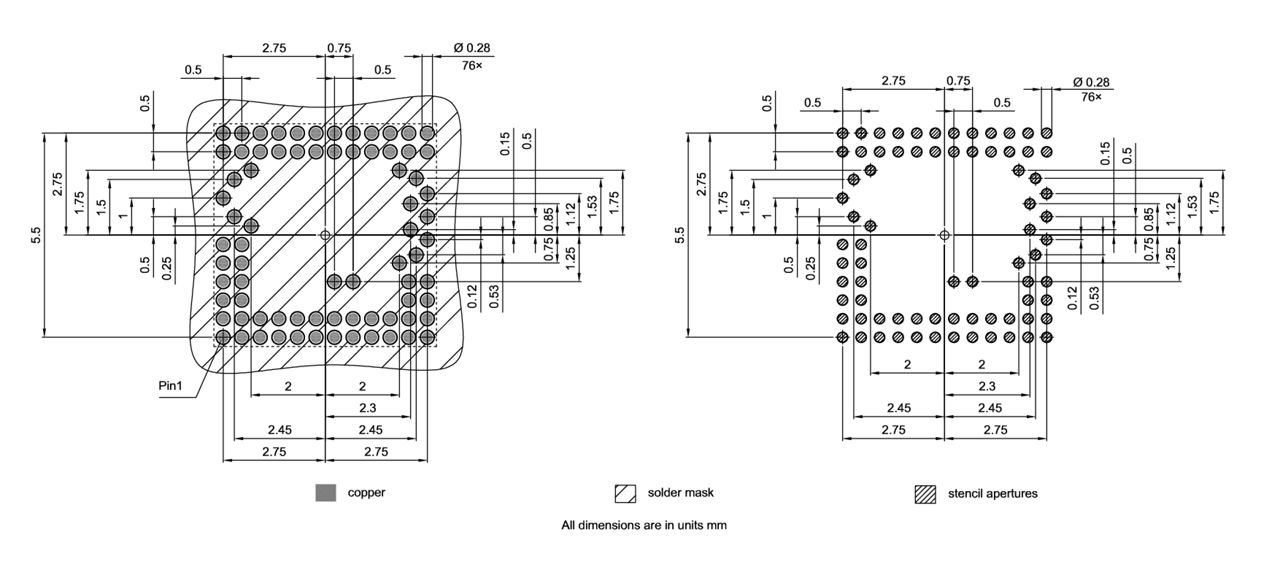

PG-VFWLB-76-1_Footprint Drawing PG-VFWLB-76-1_Footprint Drawing PG-VFWLB-76-1_Footprint Drawing
×
