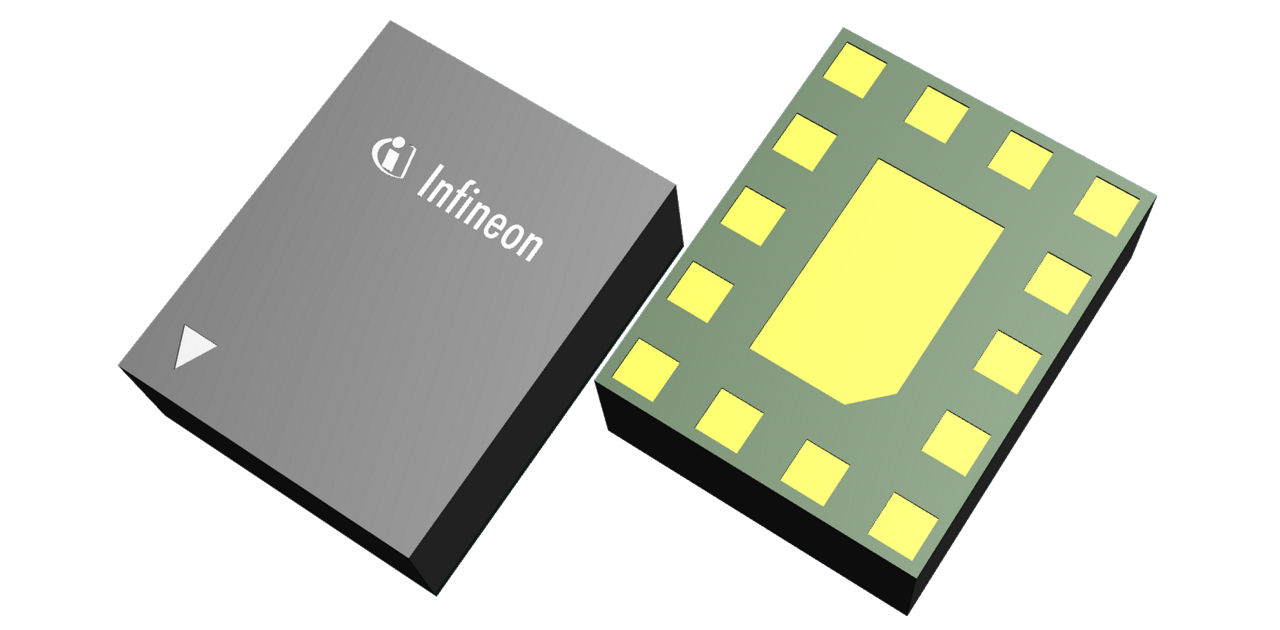

BGS15MU14

SP5T high isolation switch for feedback receive
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BGS15MU14
BGS15MU14
ea.
Data Sheet

Product details

  • Control Interface
    MIPI
  • Frequency Range
    0.4 - 6.0 GHz
  • Insertion Loss (@1GHz)
    0.48 dB
  • Isolation (@1GHz)
    63 dB
  • Pmax max
    23 dBm
  • Supply Voltage
    1.65 - 1.95 V
  • Switch Type
    SP5T
Recommended
OPN
BGS15MU14E6327XTSA1
Product Status active and preferred
Infineon Package
ULGA-14-1
Package Name N/A
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
ULGA-14-1
Package Name -
Packing Size 4500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
BGS15MU14 is a perfect fit for concurrent transmit chains in UL-CA and MIMO RF design scenarios on input port feedback receive (FBRx).  It has a very small form factor with a maximum thickness of just 0.6 mm. BGS15MU14 has been designed to guarantee best-in-class isolation performance up to 6.0 GHz (>50 dB) in high demanding FBRx applications. It has the capability to increase flexibility of RF designs, reduce space and offer BOM cost savings. The device is MIPI controlled. The on-chip controller allows power-supply voltages from 1.65 to 1.95 V. Unlike GaAs technology, external DC blocking capacitors at the RF Ports are only required if DC voltage is externally applied.

Features

  • High port-to-port isolation up to 6.0 GHz
  • High linearity up to 20 dBm input power
  • Fast switching speed (180 ns).
  • MIPI RFFE 2.1 compliant control interface
  • Small package 1.5mm x 1.9mm
  • Ultra low profile leadless plastic package
  • RoHS and WEEE compliant package
