AUIRS2181S

Automotive qualified High and Low Side Driver, SoftTurn-On, Noninverting Inputs, Separate High and Low Side Inputs in a 8-pin SOIC package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIRS2181S
AUIRS2181S
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Isolation Type
    Functional levelshift
  • Output Current (Sink)
    2.3 A
  • Output Current (Source)
    1.9 A
  • Package
    8-Lead SOIC
  • Qualification
    Automotive
  • Turn Off Propagation Delay
    200 ns
  • Turn On Propagation Delay
    160 ns
  • VBS UVLO (Off)
    8.2 V
  • VBS UVLO (On)
    8.9 V
  • Voltage Class
    600 V
OPN
AUIRS2181STR
Product Status on request
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The AUIRS2181S are high-voltage, high-speed power MOSFET and IGBT drivers with independent high and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Applications

Diagrams

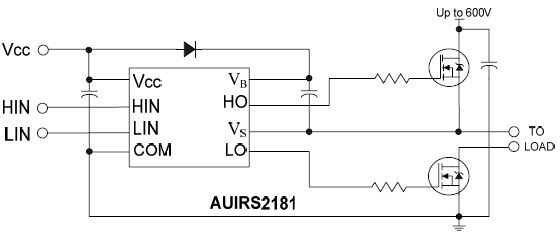

tc-auirs2181
tc-auirs2181
tc-auirs2181 tc-auirs2181 tc-auirs2181

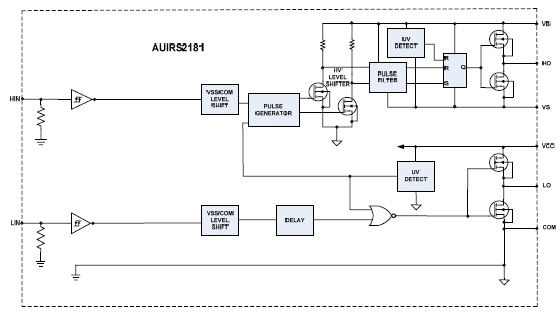

fbd-auirs2181 fbd-auirs2181 fbd-auirs2181
×
