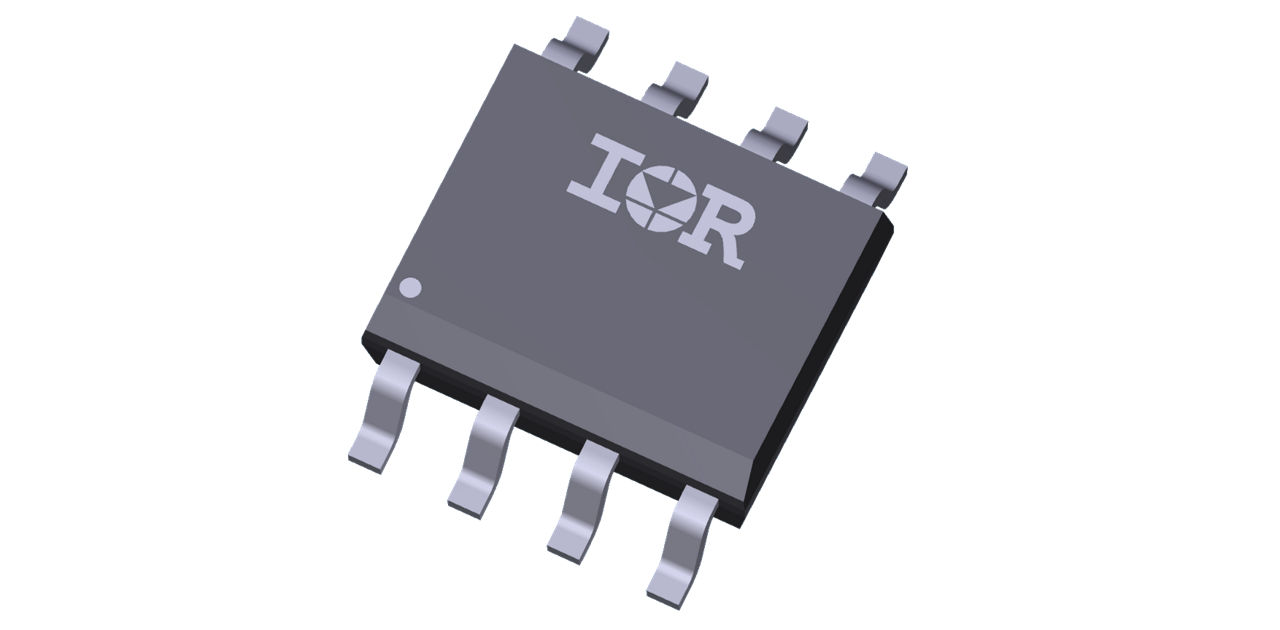

AUIR3242STR

Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIR3242STR
AUIR3242STR
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Family
    EiceDRIVER™ APD
  • Input Vcc
    3 V to 36 V
  • Isolation Type
    Non-isolated
  • Output Current (Source)
    0.3 A
  • Output Current (Sink)
    0.3 A

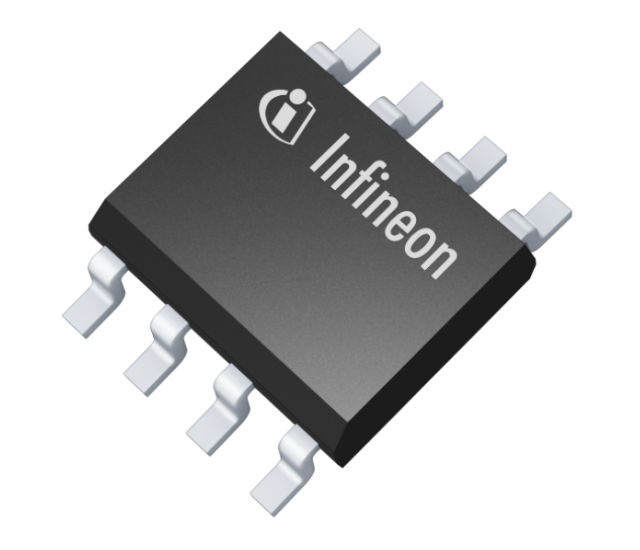

  • Package
    PG-DSO-8
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • Turn Off Propagation Delay
    1.5 µs
  • Turn On Propagation Delay
    2 µs
  • VBS UVLO (Off)
    8 V
  • Voltage Class
    65 V
Recommended
OPN
AUIR3242STRXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The AUIR3242S is a low quiescent current high side Mosfet driver for back to back switch. It combines a boost DC/DC converter and a gate driver to operate standard level Mosfets at low battery voltage. It includes under voltage lock out protection. AUIRS3241S and AUIR3242S are similar, with the latter allowing easy relay replacement due to its active low level input. AUIRS3241S can be driven directly from battery voltage.

Features

  • Very low quiescent current on/off state
  • Back to back configuration
  • Boost converter with integrated diode
  • Standard level gate voltage
  • Input active high and 3.3V compatible
  • Under voltage lockout with diagnostic
  • Ground loss protection
  • Lead-Free, Halogen Free, RoHS compliant
