AIMCQ120R080M1T

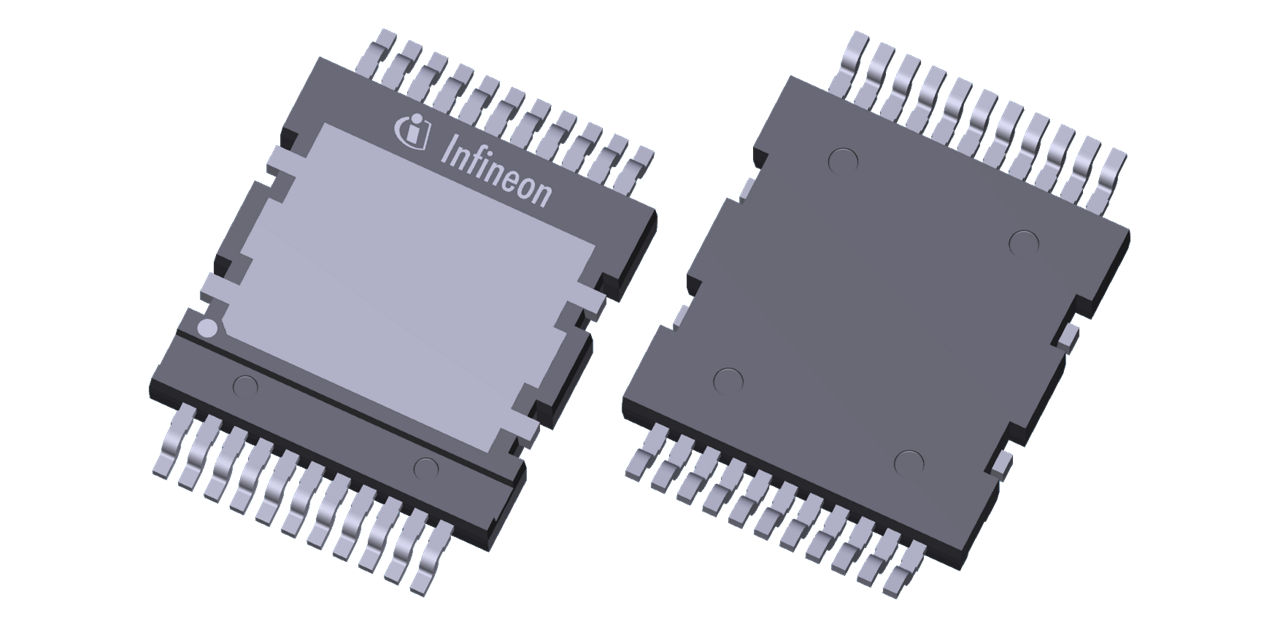

Automotive CoolSiC™ MOSFET 1200 V in Q-DPAK (HDSOP-22-3), 80 mΩ
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AIMCQ120R080M1T
AIMCQ120R080M1T
ea.
Data Sheet

Product details

  • ID (@25°C) max
    34 A
  • Launch year
    2024
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-HDSOP-22
  • Currently planned availability until at least
    2033
  • Polarity
    N
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    80 mΩ
  • Technology
    CoolSiC™ G1
  • VDS max
    1200 V
Recommended
OPN
AIMCQ120R080M1TXTMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The CoolSiC™ Automotive MOSFET 1200 V in Q-DPAK package is tailored to address OBC/DC-DC applications for 800V Automotive architecture. Leveraging Top-Side-Cooling (TSC) technology, it can provide customers with an outstanding thermal performance, easier assembly and reduced system cost. Compared to back-side cooling, TSC provides an optimized PCB assembly, thus eliminating parasitic effects and providing much lower stray inductances.

Features

  • 0V turn-off
  • Creepage  4.8mm
  • Symmetrical lead layout
  • .XT technology

Benefits

  • Lower package parasitics
  • Lower switching losses
  • Simplified design
  • Optimized PCB assembly

Applications
