Active and preferred
RoHS Compliant
Lead-free

6ED2230S12T

1200 V, 0.65 A three phase gate driver with integrated bootstrap diode and over current protection in DSO-24 package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

6ED2230S12T
6ED2230S12T
ea.
Data Sheet

Product details

  • Channels
    6
  • Configuration
    Three Phase
  • Input Vcc
    10 V to 20 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Output Current (Source)
    0.35 A
  • Output Current (Sink)
    0.65 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    650 ns
  • Turn On Propagation Delay
    700 ns
  • VBS UVLO (Off)
    9.4 V
  • VBS UVLO (On)
    10.4 V
  • VCC UVLO (Off)
    10.4 V
  • VCC UVLO (On)
    11.4 V
  • Voltage Class
    1200 V
Recommended
OPN
6ED2230S12TXUMA1
Product Status active and preferred

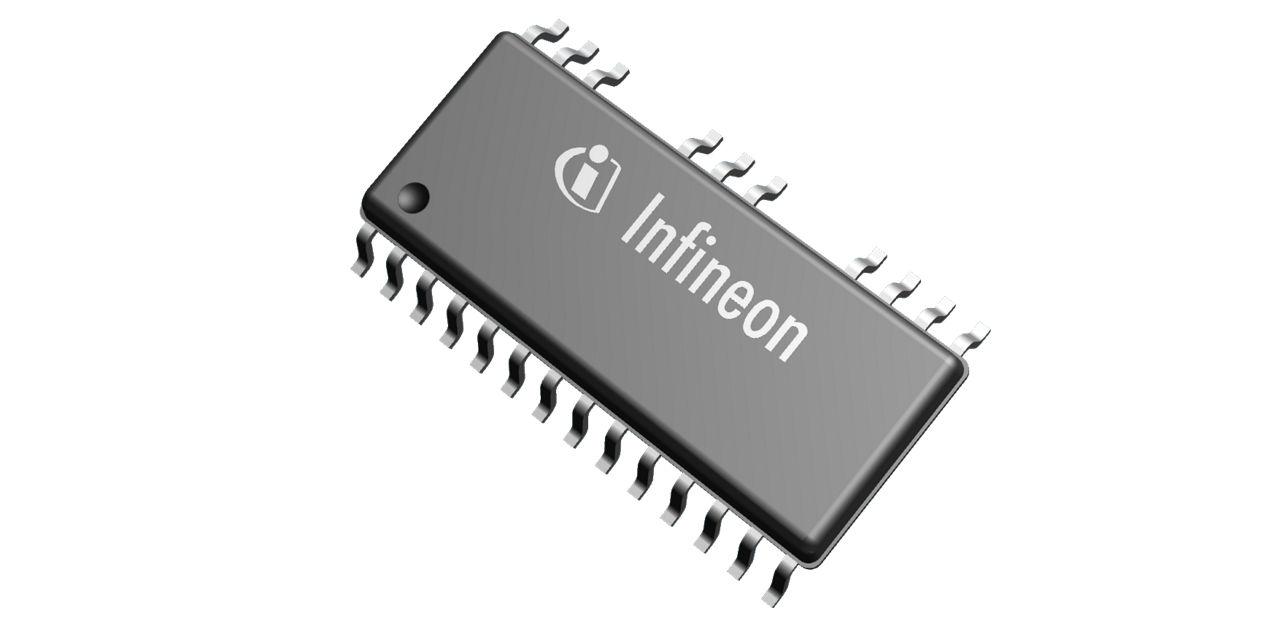

Infineon Package
PG-DSO-24
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-24
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 1200 V 3-phase gate driver with typical 0.35 A source and 0.65 A sink currents in DSO-24 lead package. This high voltage, high speed driver with our SOI technology features three independent high side and low side referenced output channels and integrates protective features such as over-current protection with fast and accurate fault reporting, shoot-through protection and under-voltage lockout protection.

Features

  • 1200-V Thin-Film-SOI technology
  • Integr. ultra-fast bootstrap diode
  • Tolerant to neg. transient volt.
  • Output source/sink +0.35 A/-0.65 A
  • Over current protection
  • Integrated dead-time protection
  • Shoot-through protection
  • Integrated input filter
  • Independent undervoltage lockout
  • Several fault functions
  • Matched prop. delay for all chan.
  • 3.3, 5, & 15 V input logic compati.

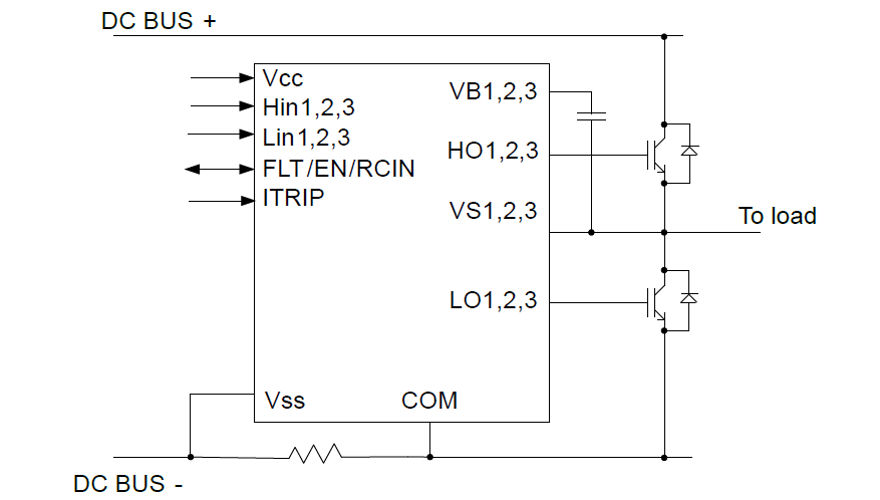

Diagrams

6ED2230S12T
6ED2230S12T
6ED2230S12T 6ED2230S12T 6ED2230S12T
Block_6ED2230S12T Block_6ED2230S12T Block_6ED2230S12T
×
modalImg
