Active and preferred
RoHS Compliant

5962R2020201VXC

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

5962R2020201VXC
5962R2020201VXC
Data Sheet

Product details

  • Density
    16 MBit
  • Device weight
    2300 mg
  • Family
    FAST SRAM
  • Interfaces
    Parallel
  • Lead Ball Finish
    Au
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2.2 V to 3.6 V
  • Organization (X x Y)
    1M x 16
  • Peak Reflow Temp
    220 °C
  • Planned to be available until at least
    2033
  • Qualification
    Military
  • Speed
    10 ns
Recommended
OPN
5962R2020201VXC
Product Status active and preferred
Infineon Package
CG-TSOP-54
Package Name CER-TSOP-II-54 (002-18372)
Packing Size 1
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
CG-TSOP-54
Package Name CER-TSOP-II-54 (002-18372)
Packing Size 1
Packing Type TRAY
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

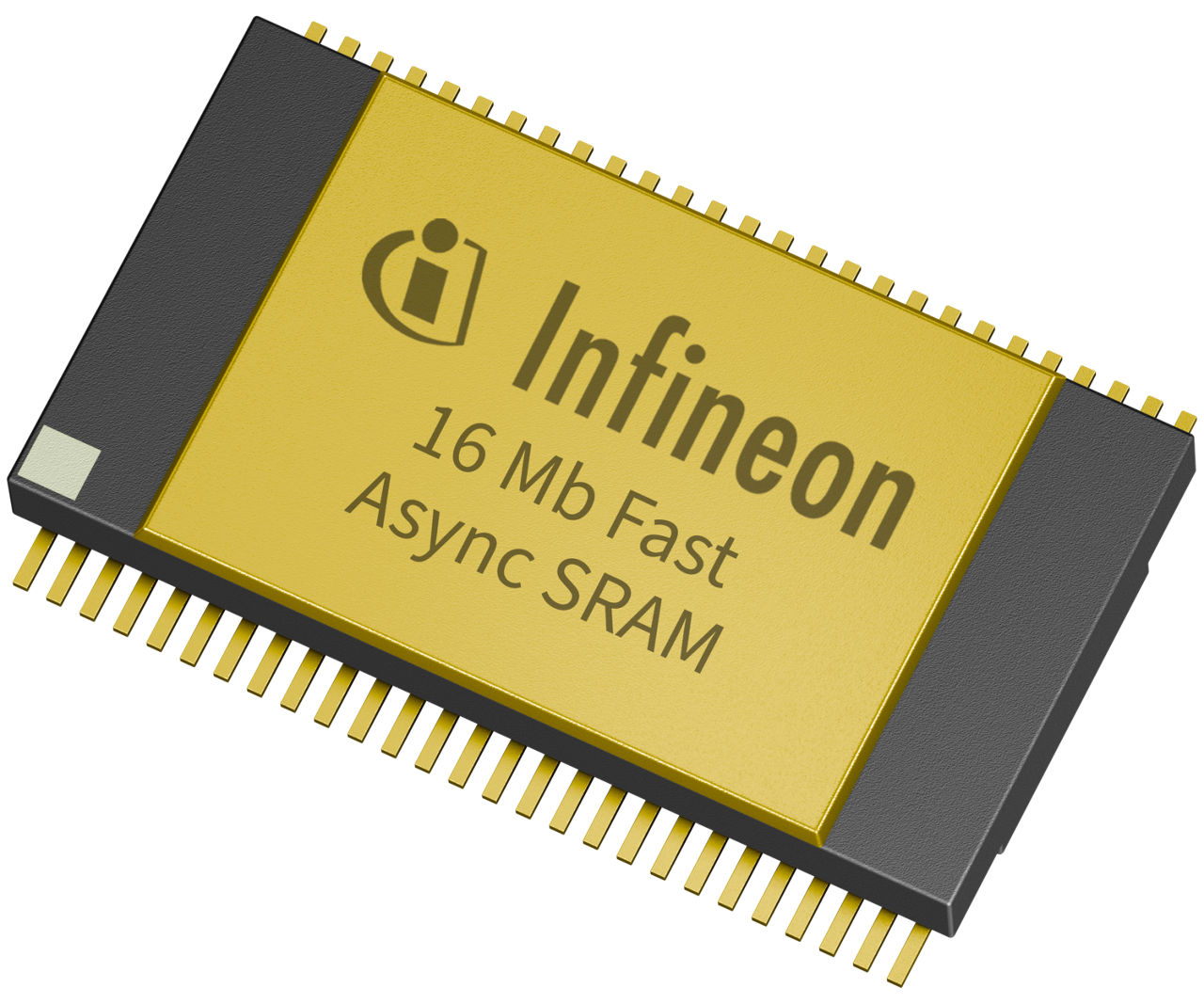

Infineon’s 16Mb asynchronous SRAM family, designed with Infineon’s patented RADSTOP™ technology is ideal for space as well as other harsh environment applications. The 16Mb Fast SRAM is a high-performance, low power SRAM with ECC organized as 1-Mbit by 16-bits.

Features

  • 16 Mb density, 1M x 16
  • Embedded ECC (SEC)
  • 10ns access times
  • 1.8–5.0 V operating voltage
  • –55°C to +125°C military temperature grade
  • 54-lead ceramic TSOP (CTSOP)
  • Radiation performance
  • TID: 200 Krad
  • SEL: > 60 MeV.cm2/mg @ 95°C
  • SEU: ≤ 1 x 10-10 upsets/bit-day
  • QML-V qualified

Applications
