Active and preferred
RoHS Compliant

5962R1821601VXC

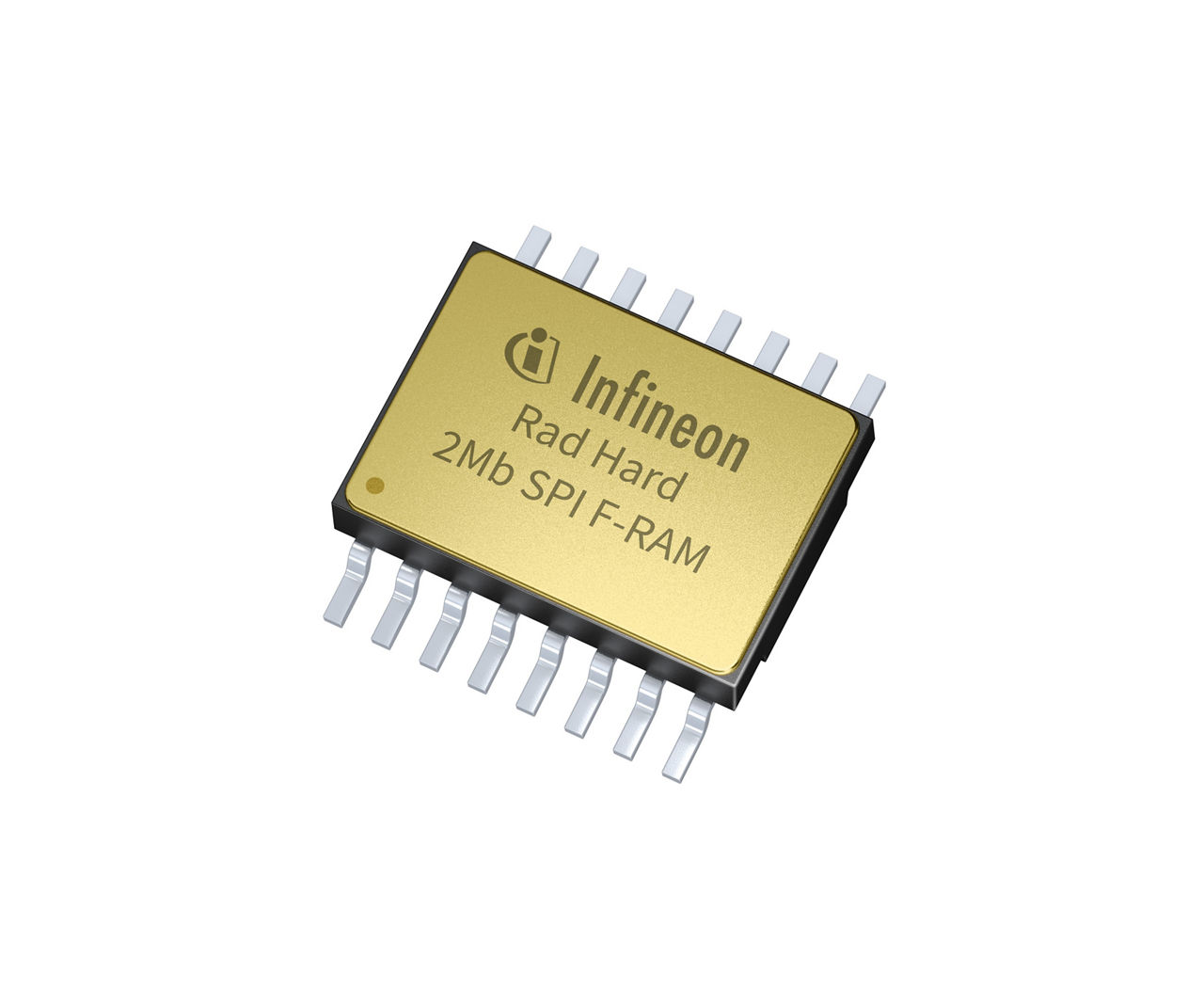

Infineon offers the space industry’s first radiation hardened, highly reliable, small footprint, 2Mb non-volatile SPI Ferroelectric RAM (F-RAM)
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

5962R1821601VXC
5962R1821601VXC
Data Sheet

Product details

  • Density
    2 MBit
  • Device weight
    648.9 mg
  • Frequency
    25 Hz
  • Interfaces
    SPI
  • Lead Ball Finish
    Au
  • Operating Temperature
    -55 °C to 125 °C
  • Operating Voltage
    2 V to 3.6 V
  • Organization (X x Y)
    4Mb x 18
  • Peak Reflow Temp
    260 °C
  • Currently planned availability until at least
    2033
  • Qualification
    Military
Recommended
OPN
5962R1821601VXC
Product Status active and preferred
Infineon Package
CG-SSOP-16
Package Name CERAMIC-SOP-16 (002-23171)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
CG-SSOP-16
Package Name CERAMIC-SOP-16 (002-23171)
Packing Size 1
Packing Type CONTAINER
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Our rad hard SPI F-RAM is one of the industry’s lowest power, non-volatile memory solutions that is Single Event Upset (SEU) immune and virtually unlimited endurance. Infineon’s instant non-volatile write technology and greater than 100-year data retention provides the highest reliability for space applications.

Features

  • 2 Mb density
  • SPI interface operating up to 25 MHz
  • Instant non-volatile write technology
  • 10-trillon read/write cycle endurance
  • 120 years data retention at +85°C
  • Extremely low programming voltage (2V)
  • Low operating current (10 mA max)
  • –55°C to +125°C military temp grade
  • 16-pin ceramic SOP (CSOP)
  • DLAM QML-V qual 2Mb rad hard SPI F-RAM
  • Radiation performance

Applications
