2ED020I12-F2

1200 V dual high-side gate driver IC with galvanic isolation, DESAT and short circuit clamping
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED020I12-F2
2ED020I12-F2
ea.

Product details

  • Channels
    2
  • Configuration
    Half Bridge, High-side
  • Input Vcc
    4.5 V to 5.5 V
  • Isolation Type
    Galvanic isolation - Functional
  • Output Current (Source)
    2 A
  • Output Current (Sink)
    2 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    165 ns
  • Turn On Propagation Delay
    170 ns
  • VBS UVLO (Off)
    11 V
  • VBS UVLO (On)
    12 V
  • VCC UVLO (Off)
    3.8 V
  • VCC UVLO (On)
    4.1 V
  • Voltage Class
    1200 V
OPN
2ED020I12F2XUMA1
Product Status active

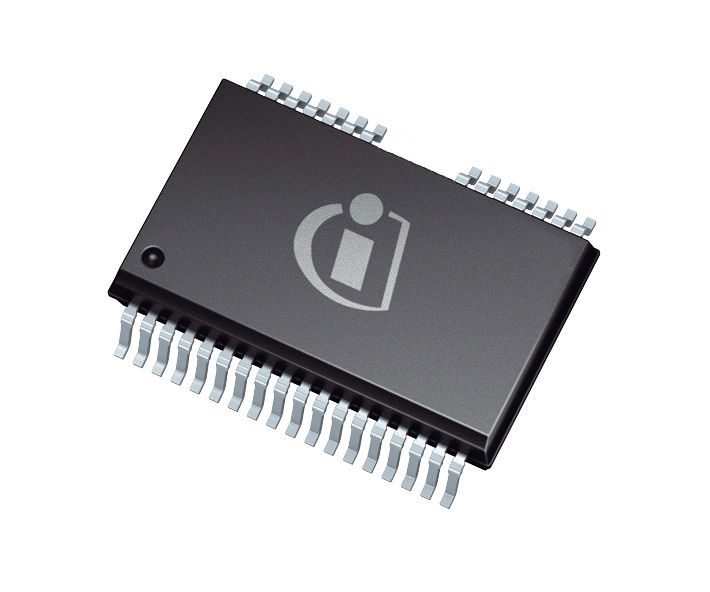

Infineon Package PG-DSO-36
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
ea. in stock

Product Status
Active
Infineon Package PG-DSO-36
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 1200 V dual high-side gate driver IC with typical 2 A source and 2 A sink output currents in a functional galvanically isolated PG-DSO-36 package for IGBTs and SiC MOSFETs .

Features

  • Coreless transformer isol. driver
  • 2 A rail-to-rail outputs
  • Protection function
  • VCEsat-detection
  • Active Miller Clamp

Benefits

  • Space saving package
  • Improved energy efficiency

Diagrams

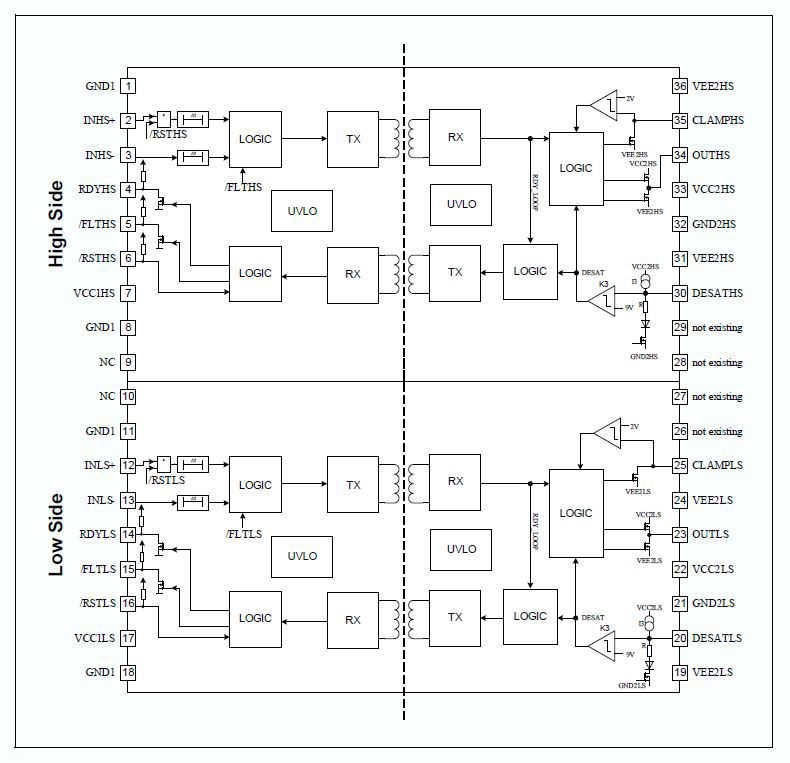

Circuit_diagram_2ED020I12-F2
Circuit_diagram_2ED020I12-F2
Circuit_diagram_2ED020I12-F2 Circuit_diagram_2ED020I12-F2 Circuit_diagram_2ED020I12-F2
