1EDN7512B

Rugged, cool and fast, 1-channel low-side 4/8A gate driver ICs
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

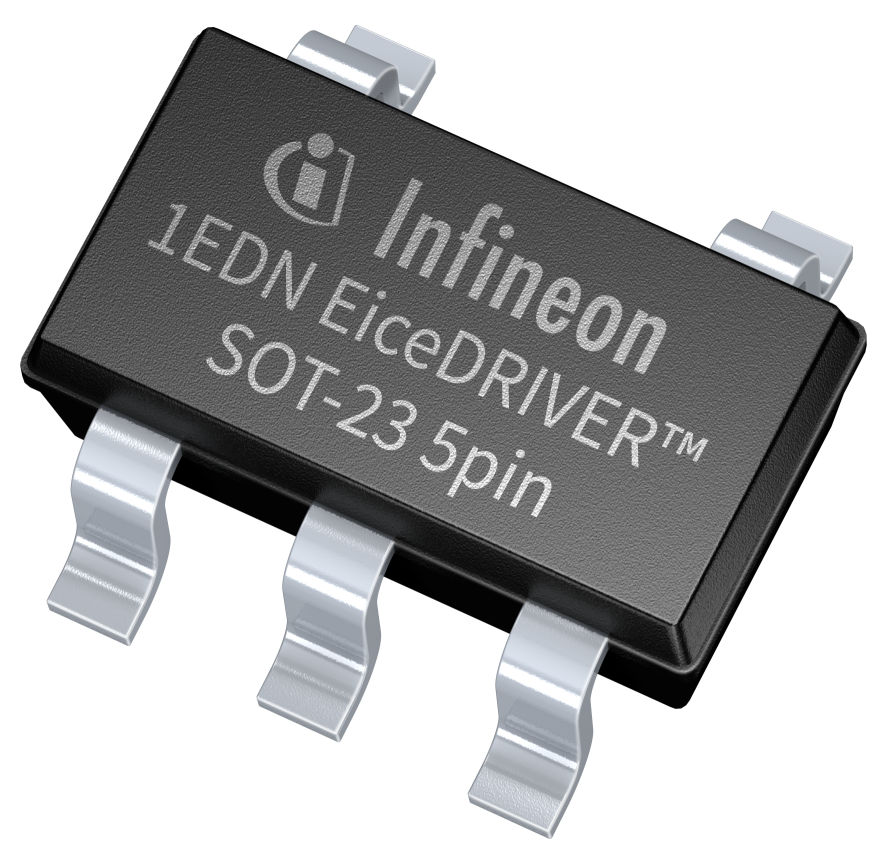

1EDN7512B
1EDN7512B
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.23
  • Channels
    1
  • Configuration
    Low-side
  • Input Vcc
    4.2 V to 20 V
  • Isolation Type
    Non-isolated
  • Output Current (Sink)
    8 A
  • Output Current (Source)
    4 A
  • Product Name
    1EDN7512B
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    19 ns
  • Turn On Propagation Delay
    19 ns
  • VBS UVLO (On)
    4.2 V
  • VBS UVLO (Off)
    3.9 V
  • Voltage Class
    20 V
Recommended
OPN
1EDN7512BXTSA1
Product Status active and preferred
Infineon Package
PG-SOT23-5
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT23-5
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
1-channel MOSFET gate driver ICs are the crucial link between control ICs and powerful MOSFET and GaN switching devices. Gate driver ICs enable high system level efficiencies, excellent power density and consistent system robustness.

Features

  • 1EDN family:new reference in ruggedness
  • 5A reverse O/P current robustness
  • Driver ICs thanks to true rail-to-rail
  • 4V & 8V UVLO options for instant MOSFET
