1ED020I12FTA

EiceDRIVER™ Automotive - Galvanic isolated single channel IGBT driver IC
Data Sheet

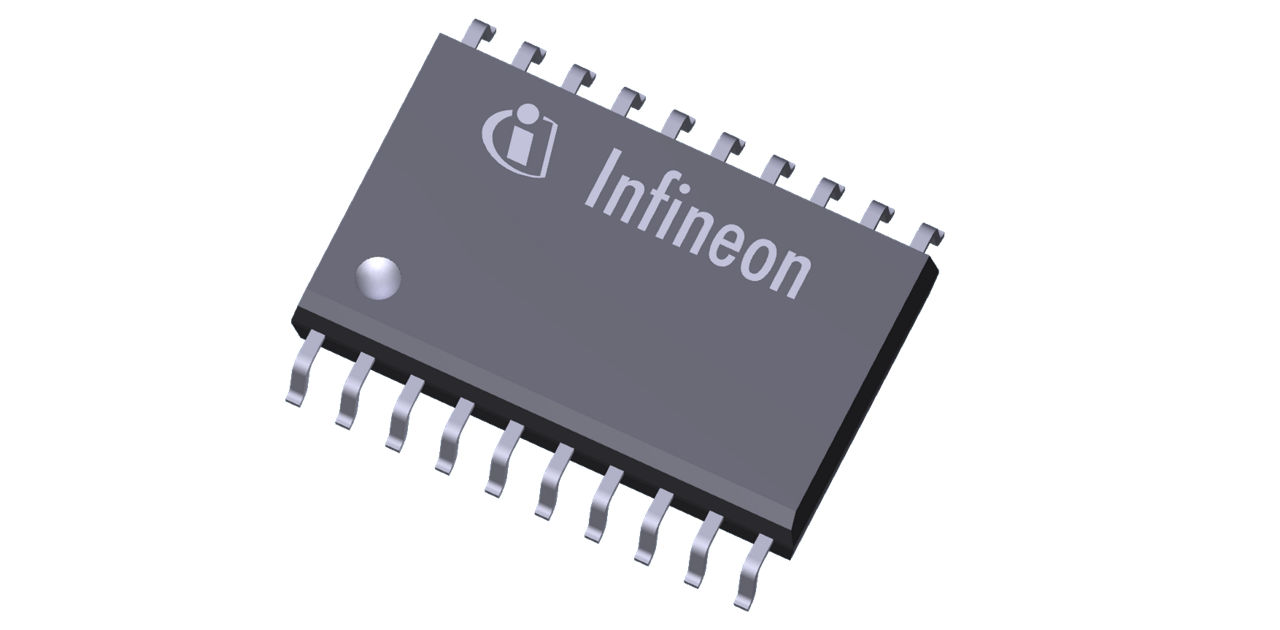

package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1ED020I12FTA
1ED020I12FTA
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    3.51
  • Channels
    1
  • Configuration
    High-side
  • Input Vcc max
    20 V
  • Isolation Type
    Galvanic isolation - Functional
  • Output Current max
    2 A
  • Output Current (Source)
    2 A
  • Output Current (Sink)
    2 A
  • Package
    PG-DSO-20
  • Qualification
    Automotive
  • Turn Off Propagation Delay
    1900 ns
  • Turn On Propagation Delay
    1750 ns
  • VBS UVLO (Off)
    11 V
  • VBS UVLO (On)
    12 V
  • Voltage Class
    1200 V
OPN
1ED020I12FTAXUMA2
Product Status not for new design
Infineon Package
PG-DSO-20
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-DSO-20
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 1ED020I12FTA is a galvanic isolated single channel IGBT driver in PG-DSO-20 package that provides an output current capability of typically 2 A. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 1ED020I12FTA provides several protection features like IGBT two level turn off, desaturation protection, active Miller clamping and active shut down.

Applications

Diagrams

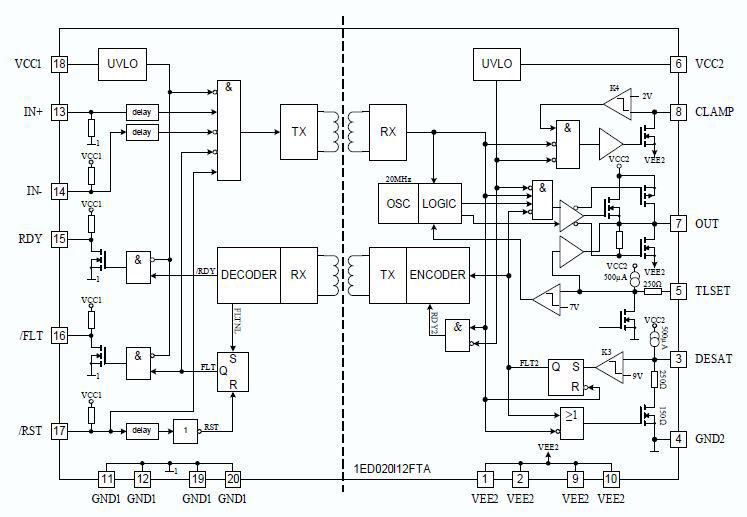

Circuit_diagram_1ED020I12FTA
Circuit_diagram_1ED020I12FTA
Circuit_diagram_1ED020I12FTA Circuit_diagram_1ED020I12FTA Circuit_diagram_1ED020I12FTA
×
