1EBN1001AE

EiceDRIVER™ Boost - single channel booster for automotive applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1EBN1001AE
1EBN1001AE
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    1.44
  • Channels
    1
  • Configuration
    High-side
  • Family
    EiceDRIVER™ isolated gate driver ICs for EV
  • Input Vcc max
    28 V
  • Isolation Type
    Non-isolated
  • Package

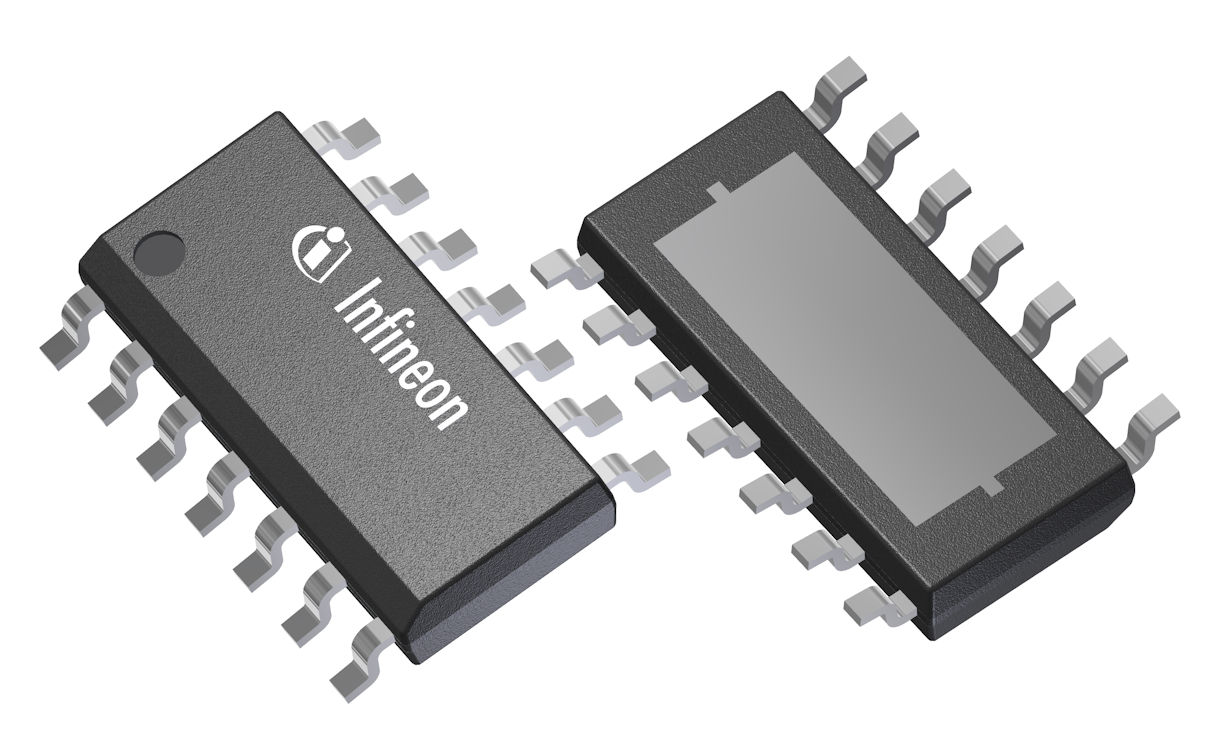

    PG-DSO-14
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • Turn Off Propagation Delay
    10 ns
  • Turn On Propagation Delay
    10 ns
  • Voltage Class
    40 V
Recommended
OPN
1EBN1001AEXUMA1
Product Status active
Infineon Package
PG-DSO-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IGBT / MOSFET gate driver booster for automotive motor drives above 10 kW, peak current up to ±15 A, support for active clamping with very fast reaction time, active clamping disable and ASC Input signals

Features

  • Single chan. IGBT / MOSFET gate driver
  • IGBT classes 650 V /800A & 1200 V / 400A
  • Low propagation delay
  • Separate turn-on/turn-off signals pathes
  • Support for negative turn-off bias
  • 14-pin PG-DSO-14 exposed green package

Benefits

  • Support for active short circuit plans
  • Cost eff implem of ASIL C/D on systems
  • Significant PCB area savings

Diagrams

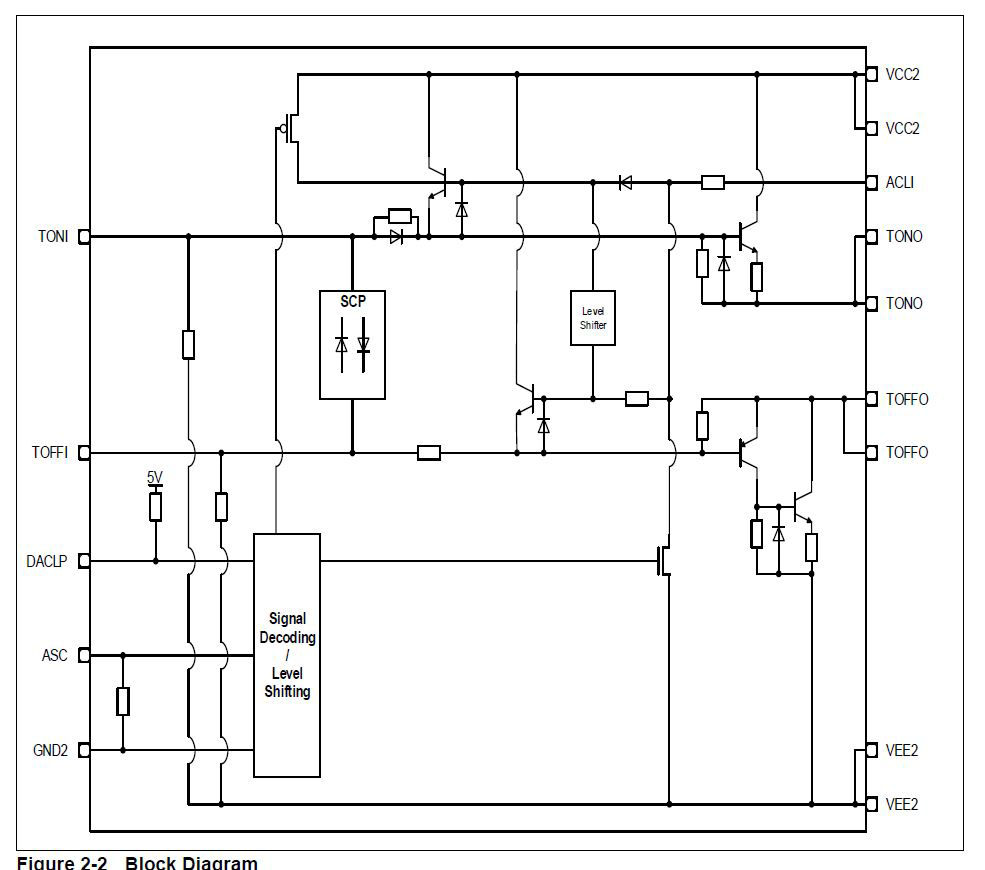

Circuit_diagram_1EBN1001AE
Circuit_diagram_1EBN1001AE
Circuit_diagram_1EBN1001AE Circuit_diagram_1EBN1001AE Circuit_diagram_1EBN1001AE
×
