REF_WATERPUMP_SIP

NEW

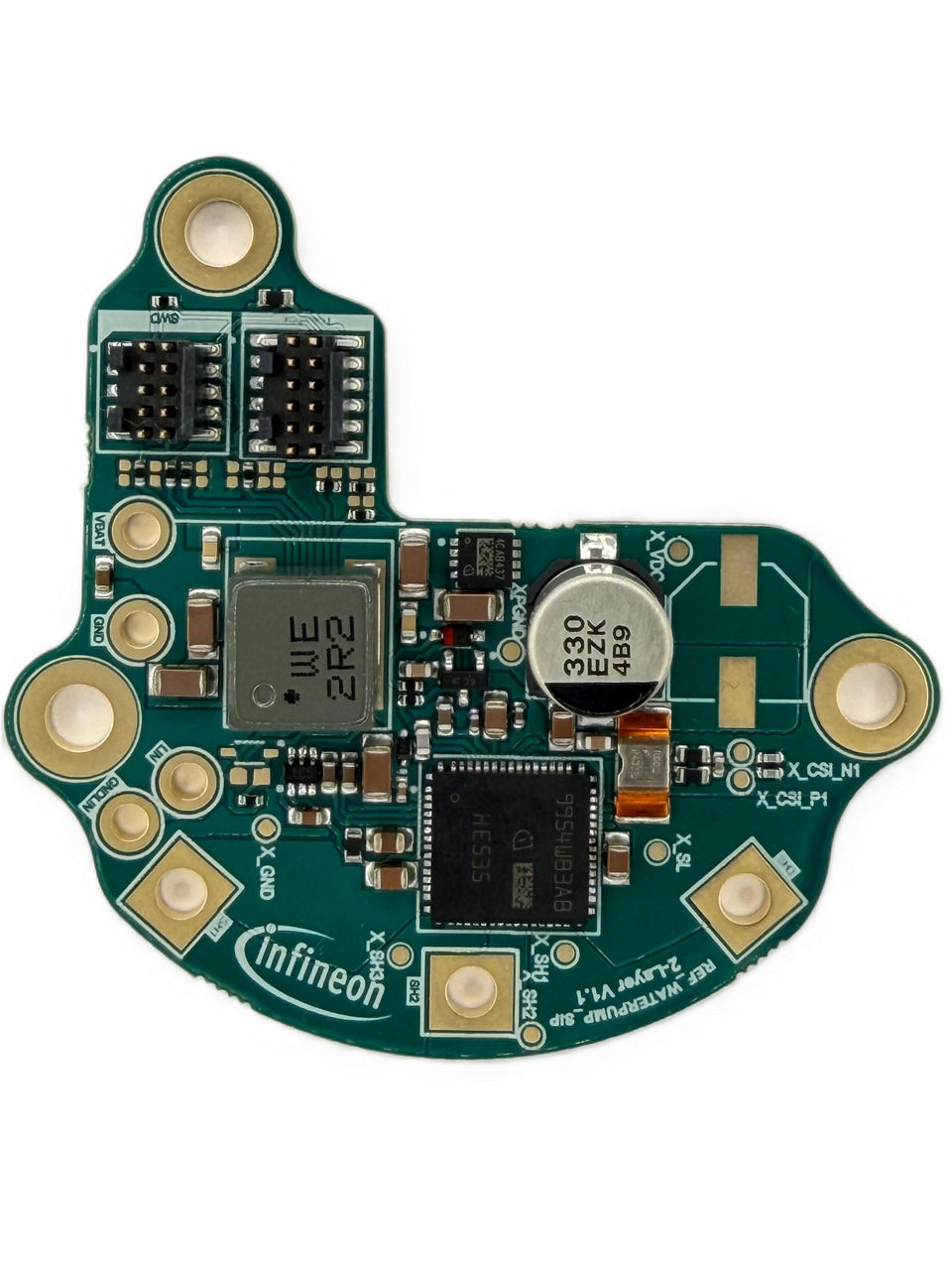

Water pump reference design with MOTIX™ TLE9954QSW40-33, fully integrated solution including MOSFETs
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_WATERPUMP_SIP
REF_WATERPUMP_SIP
User Manual

Product details

  • Family
    MOTIX™ MCU SiP
  • Input Type
    BLDC
  • Pout max
    150 W, 150 W
  • Qualification
    Automotive
  • Sub Application
    3-phase motor drive
  • Supply Voltage range
    9 V to 24 V
  • Target Application
    150W 12V BLDC water pump
  • Topology
    3-phase full-bridge
OPN
REFWATERPUMPSIPTOBO1
Product Status coming soon
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
This water pump reference design features Infineon´s all-in-one MOTIX™ TLE9954QSW40-33 System-in-Package chip. The reference design is optimized for thermal management, reduces PCB area by 40%, and simplifies the layout to a 2-layer design. Featuring integrated components like the B6-bridge and support for EMC compliance, it provides a compact and efficient solution for 12V auxiliary motor applications like pumps.

Features

  • Reference for EMC
  • Reference for thermal performance
  • Optimized BOM and PCB size
  • SWD port for debug connection
  • LIN port
  • Small PCB size
  • Extensive documentation

Benefits

  • Reduced time to market
  • Minimal BOM
  • Reduced PCB size
  • Scalability

Applications
