REF_HUMA_MTR_48V_25A
coming soon
RoHS Compliant

REF_HUMA_MTR_48V_25A

System reference solution for a single humanoid motor joint
User manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_HUMA_MTR_48V_25A
REF_HUMA_MTR_48V_25A
User manual

Product details

  • Applications
    Humanoid Robotics
  • Dimensions
    65mm x 65mm x 15mm
  • Efficiency
    98%
  • Family
    CoolGaN™
  • Frequency
    100 kHz
  • Input Voltage range
    20 V - 60 V
  • Input Voltage
    48 V
  • Interfaces
    2x CAN-FD, RS-485, SPI, UART, I2C
  • Isolated
    No
  • MCU
    PSC3M5FDS2LHQ1
  • Operating Voltage
    48 V
  • Output Voltage Type
    AC
  • PWM Frequency
    100 kHz
  • Recommended Operating Voltage
    48 V
  • Sub Application
    Humanoid Robotics
  • Supply Voltage absolute max ratings max
    60 V
  • Supply Voltage
    48 V
  • Switching Frequency
    100 kHz
OPN
REFHUMAMTR48V25ATOBO1
Product Status coming soon
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

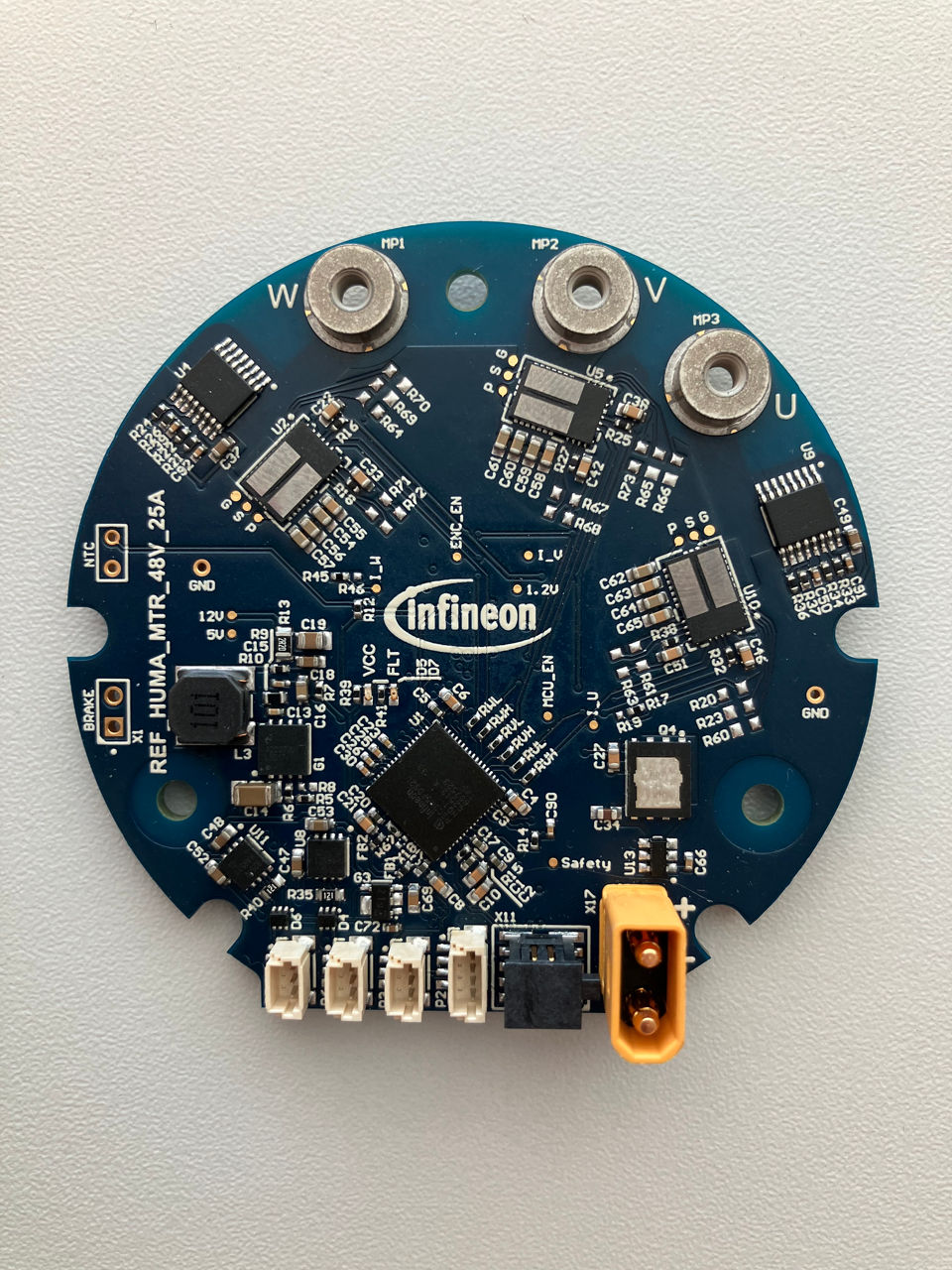

REF_HUMA_MTR_48V_25A is a compact, round-form-factor 3-phase motor inverter reference board with a diameter of 65 mm and a height of 15 mm designed for integration into humanoid robot joints. It is built around Infineon's integrated 100 V GaN (iGaN) intelligent power stage and targets joint motor drive applications at 48 V bus voltage and up to 25 ARMS.

Features

  • All-in-one system solution (inverter + controller + auxiliary supply)
  • Sensored or sensorless FOC with CAN/UART communication
  • TMR current sensors with fast OCP shutdown
  • High-side inrush limitation with fast disconnect in short-circuit
  • Two position sensor interfaces for multiturn-absolute encoder

Benefits

  • Form factor enables embedding of inverter within motor
  • Application focused design with scalability mindset
  • Improved system efficiency due to motor core loss savings @ higher fsw
  • GaN integrated power stage + PSOC C3 and TMR current sensors
  • Simple and flexible system design to fit any form factor
