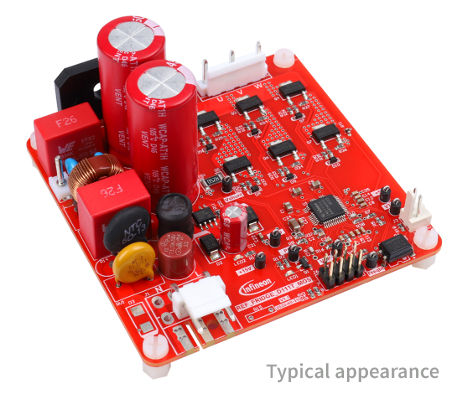

Reference board for efficient control of rotary fridge compressor drives powered by iMOTION™ driver IMD111T and 600 V CoolMOS™
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_FRIDGE_D111T_MOS
REF_FRIDGE_D111T_MOS
User Manual

Product details

  • Board Type
    Reference Board
  • Dimensions
    78x78x1.6 mm
  • Family
    iMOTION™ Motor Control ICs
  • Input Type
    AC
  • Interfaces
    GUI
  • Pout max
    250 W
  • Product Name
    REF_FRIDGE_D111T_MOS
  • Qualification
    Industrial
  • Target Application
    Pumps, Small Home Appliance, Refrigerator
  • Topology
    3-Phase Motor, 3-Phase - 2 Level
OPN
REFFRIDGED111TMOSTOBO1
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The REF_Fridge_D111T_MOS board is a three-phase inverter for refrigerator compressors, featuring the iMOTION™ driver IMD111T-6F040 and the 600V CoolMOS™ PFD7 super junction MOSFET IPN60R1K0PFD7S. It offers sensorless field-oriented control (FOC), easy interfacing through iMOTION™ Link for programming and debugging, and essential tuning for motor control systems.

Features

  • Refrigerator reference board
  • IMD111T-6F040
  • CoolMOS™ for light load efficiency
  • Power rating up to 250 W at 10 kHz
  • Motion Control Engine (MCE 2.0)
  • Highly efficient FOC
  • Single shunt current sense
  • iMOTION Link connector

Benefits

  • Field-proven iMOTION™ solution
  • Single shunt sensorless FOC
  • Excellent light load efficiency
  • Cost effective design using SOT-223

Applications
