REF-DAB11KIZSICSYS

11 kW SiC bi-directional DC/DC converter board for EV Charging and ESS applications
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-DAB11KIZSICSYS
REF-DAB11KIZSICSYS
ea.
User Manual

Product details

  • Board Type
    Reference Board
  • Dimensions
    60x134x331 mm
  • Family
    CoolSiC™ MOSFET
  • Input Type
    DC
  • Output Current max
    20 A
  • Output Voltage max
    800 V
  • Pout max
    11000 W
  • Product Name
    REF-DAB11KIZSICSYS
  • Qualification
    Industrial
  • Sub Application
    Chargers from 30 kW to 150 kW, Power Conversion Systems
  • Target Application
    Energy Storage, Medical, EV Charger
  • Topology
    LLC
Recommended
OPN
REFDAB11KIZSICSYSTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

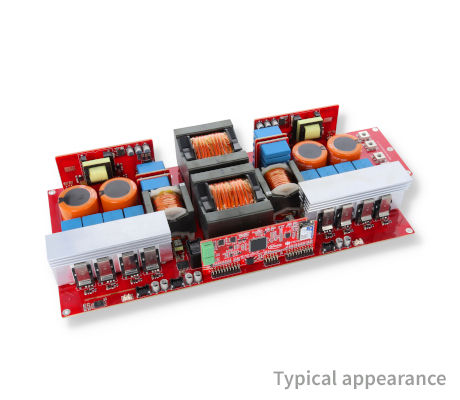

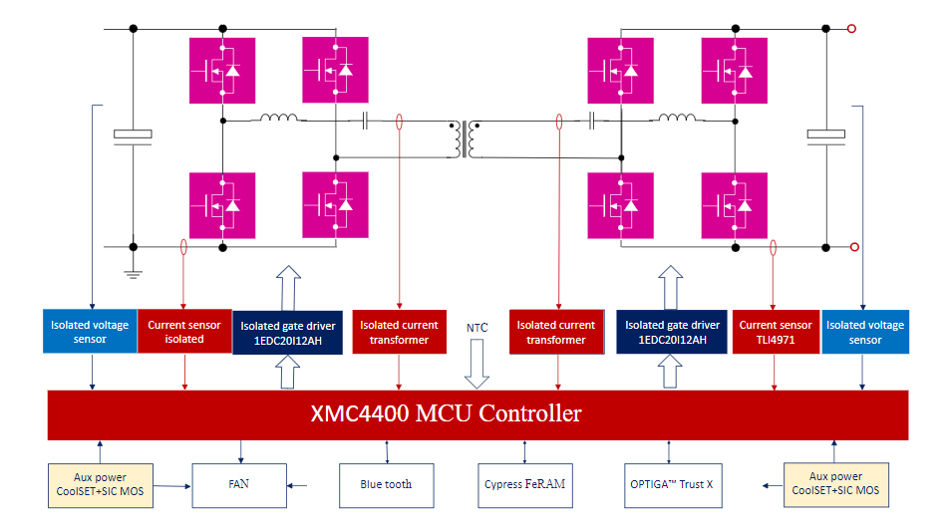

The REF-DAB11KIZSICSYS is a CLLC resonant DC/DC converter board delivering up to 11 kW at 800 V output voltage, ideal for fast EV and ESS charger prototyping. This reference design provides complete design files based on fully characterized hardware, showcasing the suitability of CoolSiC™ MOSFETs like the IMZ120R030M1H driven by 1EDC20I12AH for cost-effective power density and high reliability.

Features

  • 11kW at full output voltage range
  • Bi-directional power flow capabili.
  • high peak efficiency >= 97.2%
  • High power density: 4,1 kW/l
  • synchronous rectification
  • 1200 V and 1700 V CoolSiC™ MOSFETs
