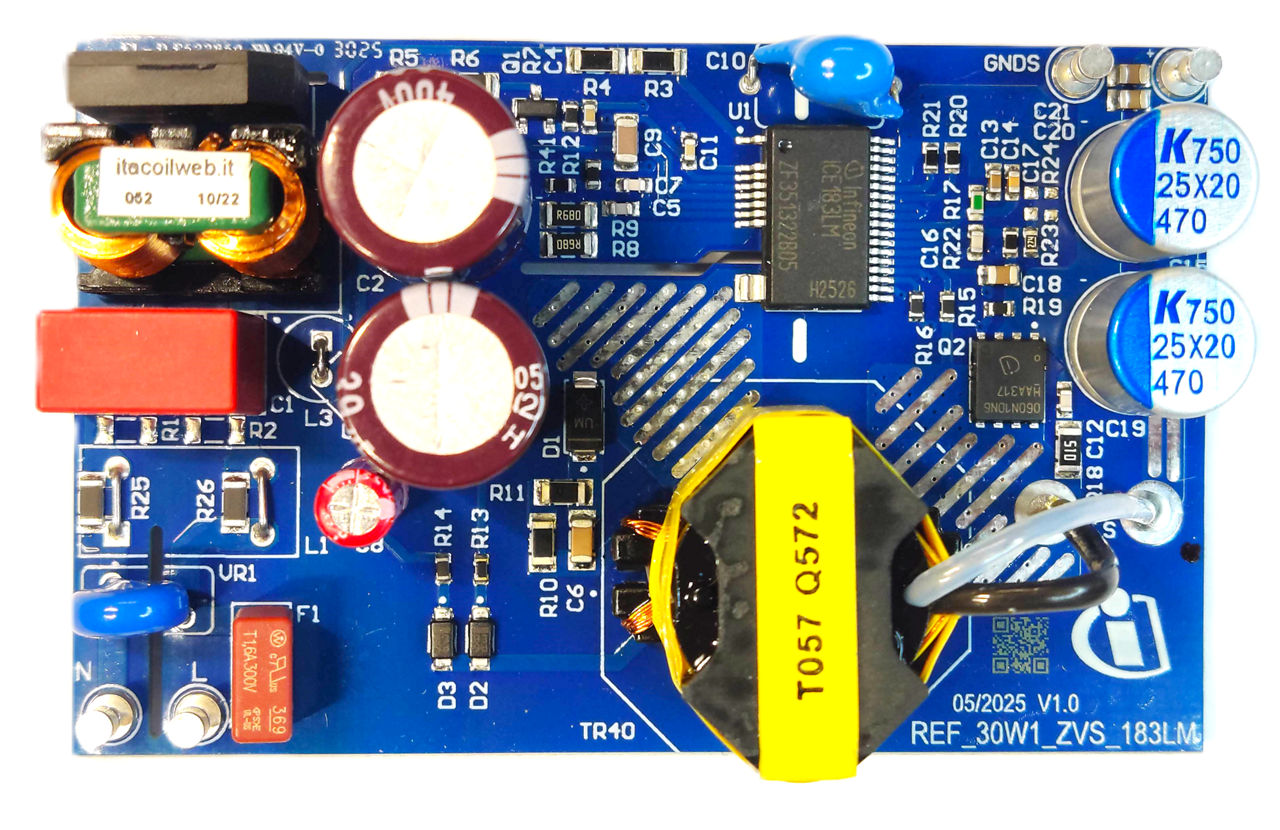

CoolSET™ SiP ICE183LM reference design of an auxiliary power supply for generic SMPS applications
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_30W1_ZVS_183LM
REF_30W1_ZVS_183LM
Application Notes

Product details

Recommended
OPN
REF30W1ZVS183LMTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The CoolSET™ SiP controller integrates an 800 V P7 CoolMOS™, ZVS primary controller, and secondary SR controller with CT Link technology for isolated communication, in a small SMD footprint. As a result, the reference design board shows excellent performance and high efficiency, low standby power, with robust and reliable operation of the system. The nominal power is 30 W, delivered by a 12 V and 2.5 A isolated output.

Features

  • Universal input 90 ~ 264 VAC, 50/60 Hz
  • Output: 12 V / 2.5 A isolated
  • > 92% full-load efficiency at 230 VAC
  • < 20 mW standby power at 230 VAC

Benefits

  • Fully integrated flyback solution
  • Low count BOM
  • High efficiency design with SR
  • High reliability and robust operation
  • Low power standby

Applications
