Active and preferred

LEDFRONTHBLB_REF

Reference design for high beam and low beam combination using TLD5099EP
Reference Design
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

LEDFRONTHBLB_REF
LEDFRONTHBLB_REF
ea.
Reference Design

Product details

  • Board Type
    Reference Board
  • Family
    LITIX™ Power
  • Input Type
    DC
  • Output Voltage
    14 V to 27 V
  • Pout
    13 W to 25 W
  • Qualification
    Automotive
  • Sub Application
    LED Frontlight
  • Supply Voltage
    8 V to 27 V
  • Target Application
    Lighting, Automotive
  • Topology
    Buck, Boost
Recommended
OPN
LEDFRONTHBLBREFTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's Ref Design Guide implements an automotive front light high/low beam combo using the TLD5099EP multitopoly DC-DC controller from the LITIX™ Power family. It supports cost-effective entry-level LED headlamps with single-channel drive for both beams. PWM dimming controls brightness and allows derating in extreme conditions. Robust diagnosis and EMC compliance (CISPR25) are ensured. Thermal performance is detailed.

Benefits

  • Transient Pulse tested
  • EMC compliance
  • Thermal tests
  • Focus on cost optimized design

Applications

Bill of Material

Documents

Documents

Design resources

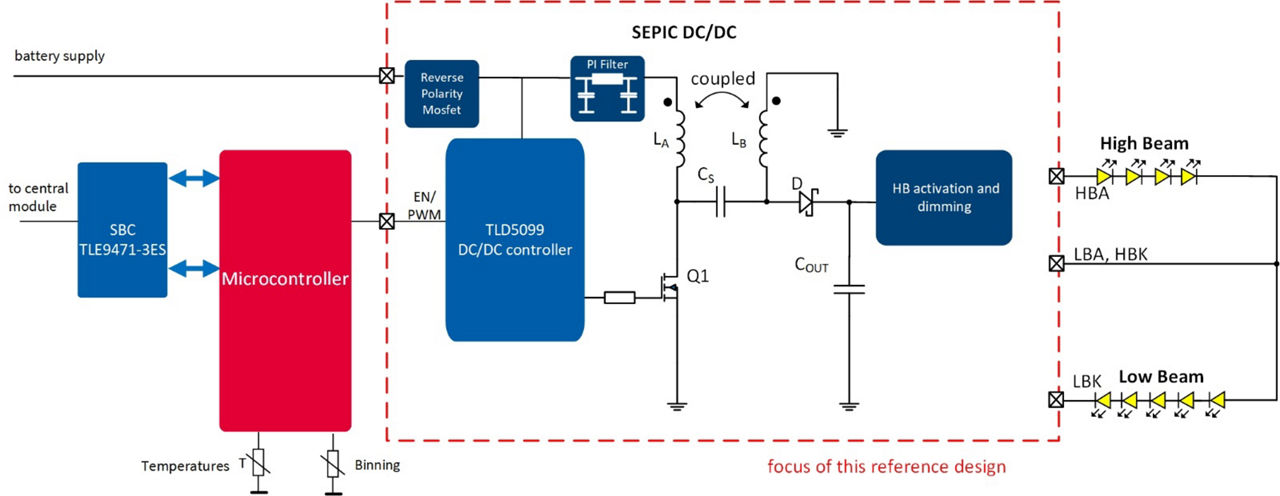

Diagrams

ledfronthblb ref
ledfronthblb ref
ledfronthblb ref ledfronthblb ref ledfronthblb ref
×
