Kit board - MERUS™ audio amplifier HAT ZW class D audio amplifier 40 W for Raspberry Pi Zero W featuring MA12070P

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_40W_AMP_HAT_ZW
KIT_40W_AMP_HAT_ZW


Product details


OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant

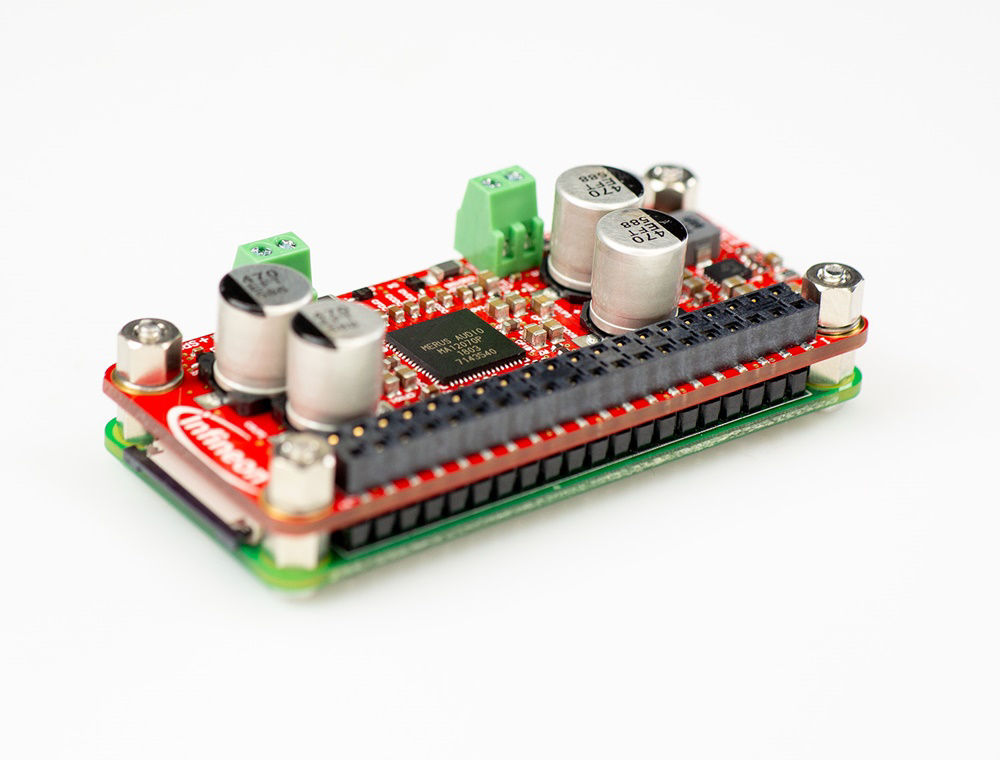

MERUS™ audio amplifier HAT ZW is a compact, high-definition audio HAT for Raspberry Pi. It's equipped with the MA12070P class D multilevel amplifier, offering up to 40 W peak power and 48 KHz/24 bit music playback. It requires no extra power supplies and is compatible with popular Raspberry Pi audio streaming applications. The key component is MA12070P.

Features

  • Equipped with MERUSTM MA12070P proprietary multi-level amplifier
  • Compatible with Raspberry Pi Zero and Raspberry Pi Zero Wireless
  • Power input: 5 V/2.5 A - sourced from the same single supply as the Raspberry Pi
  • No need for external or extra power supplies
  • Up to 40 W instantaneous peak output power with the Raspberry Pi official 5 V/2.5 A supply

Benefits

  • Compatibility with major streaming applications for Raspberry Pi (Volumio, Justboom Player, Max2play)
  • Up to 48 KHz of sample rate and 24 bit of music playback
  • Full hardware control, customization, and error monitoring trough Linux Alsamixer
