EVAL-M5-IMZ120R-SIC

Motor Drives Inverter Board with CoolSiC™ MOSFET in TO247 package
Application Notes
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M5-IMZ120R-SIC
EVAL-M5-IMZ120R-SIC
Application Notes

Product details

  • Applications
    Servo Drives
  • Board Type
    Evaluation Board
  • Dimensions
    204x259
  • Family
    CoolSiC™ MOSFET
  • Frequency
    16 kHz
  • Motor Power max
    11000 W
  • Product Name
    EVAL-M5-IMZ120R-SIC
  • Qualification
    Industrial
  • Sub Application
    Servo Drives
  • Target Application
    Drives, Industrial Drives, Motor Control & Drives
  • Topology
    3-Phase - 2 Level
OPN
EVALM5IMZ120RSICTOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

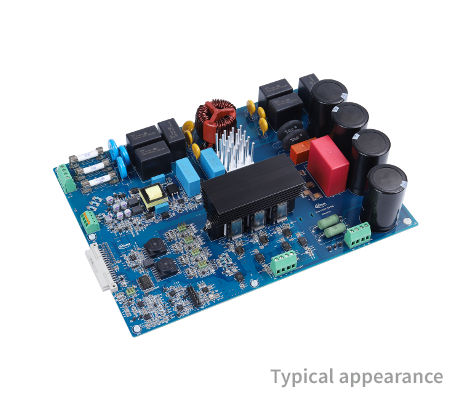

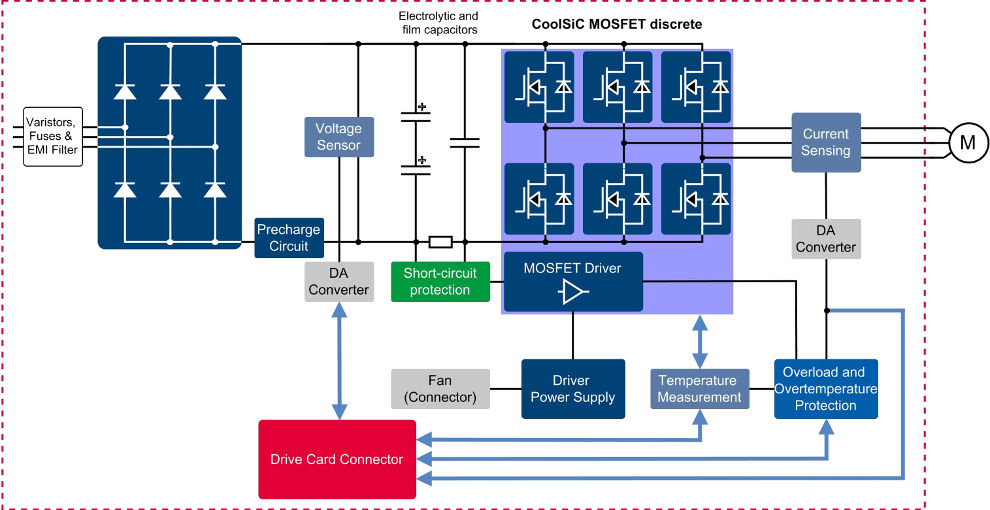

The EVAL-M5-IMZ120R-SIC is a 3-phase inverter board for motor drive applications featuring CoolSiC™ MOSFETs. It requires a control board with the M5 32-pin interface connector, such as the XMC DriveCard 4400. This evaluation board supports initial designs with the CoolSiC™ MOSFET 1200 V in discrete packages, accommodating various TO247 packages with a rated blocking voltage of 1200 V and typical on-state resistance of 45 mOhm.

Features

  • CoolSiC™ 1200 V MOSFETs
  • Low inductive design
  • Isolated sensing with Δ∑-ADC
  • Overload protection
  • Short-circuit hardware protection
  • Overtemperature hardware protection
  • Rugged gate driver technology
  • Stability against transient & negative voltage
  • Stability against negative voltage
  • Measurement test points compatible
  • With standard oscilloscope probes
