EVAL-FFXMR12MM1H
NEW
Active and preferred

EVAL-FFXMR12MM1H

NEW
Evaluation board for EconoDUAL™ 3 with SiC
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-FFXMR12MM1H
EVAL-FFXMR12MM1H
ea.

Product details

  • Applications
    HVAC control, UPS, energy storage systems, GPD, EV charging, eCAV
  • Board Type
    Evaluation Board
  • Family
    CoolSiC™ MOSFET
  • Frequency
    15 kHz
  • Input Type
    DC
  • Interfaces
    Others
  • Motor Power max
    250 W
  • Mounting
    THT, Surface Mount (SMD)
  • Output Current range
    30 A to 40 A
  • Output Voltage min
    5 V
  • Output Voltage
    18 V
  • Product Name
    EVAL-FFXMR12MM1H
  • Qualification
    Industrial
  • Supply Voltage
    24 V
  • Target Application
    eCAV, GPD, HVAC
  • Topology
    Half Bridge
Recommended
OPN
EVALFFXMR12MM1HTOBO1 EVALFFXMR12MM1HTOBO2
Product Status active and preferred active and preferred
Infineon Package -- --
Package Name N/A N/A
Packing Size 1 1
Packing Type BLISTER TRAY BLISTER TRAY
Moisture Level N/A N/A
Moisture Packing NON DRY NON DRY
Lead-free No No
Halogen Free No No
RoHS Compliant No Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

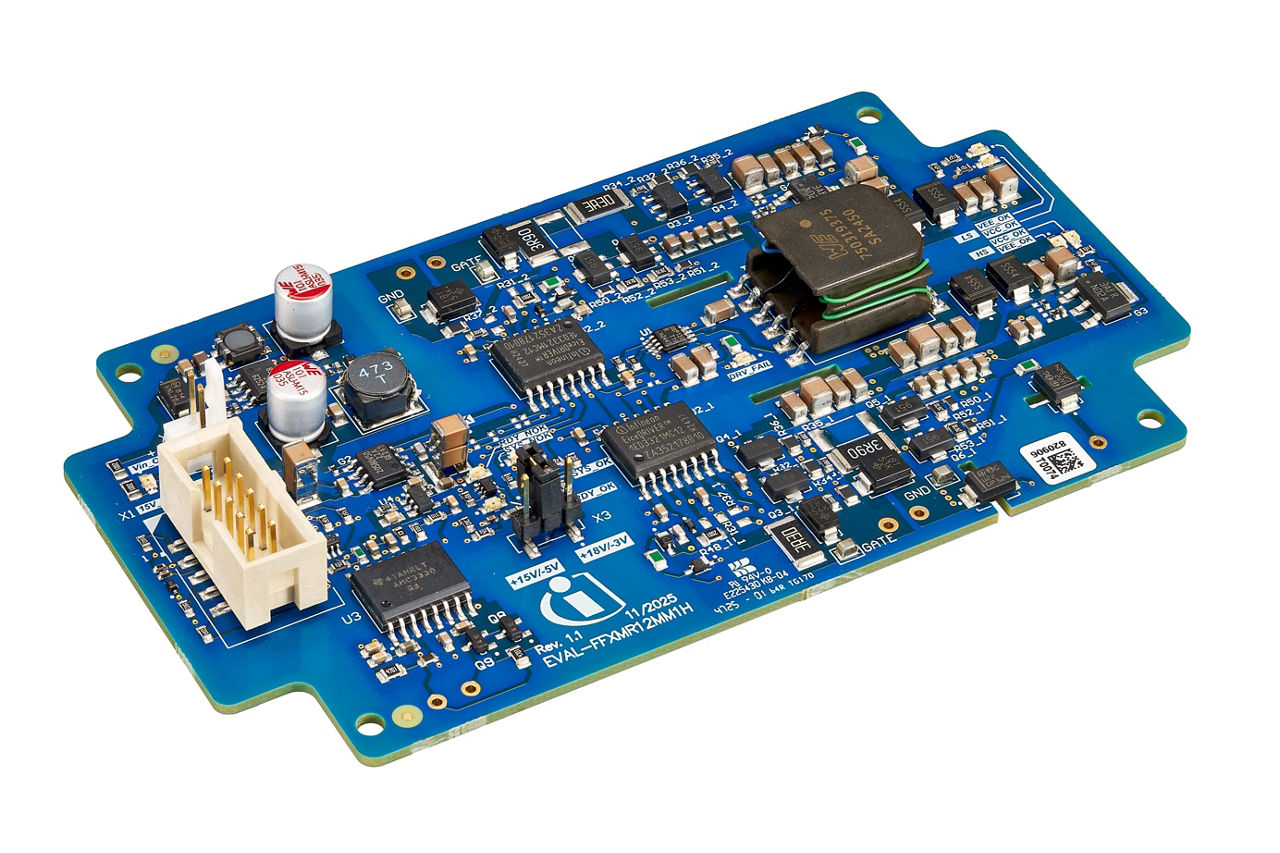

EVAL-FFXMR12MM1H evaluation board enables fast evaluation of EconoDUAL™ 3 power modules with CoolSiC™ technology, such as FF1MR12MM1H_B11. EVAL FFXMR12MM1H includes the EiceDRIVER™ providing DESAT short-circuit protection and active Miller clamping. The evaluation board is equipped with an internal gate-driver voltage supply and an NTC thermistor for measuring temperature.

Features

  • Isolated internal power supply
  • NTC temperature measurement
  • Active Miller clamping
  • DESAT detection
  • PCB suitable for PressFIT mounting
  • Two selective gate voltage levels
  • Gate driver with optional booster stage

Benefits

  • Self-supplying via internal power supply
  • Short-circuit protection via DESAT
  • Protection via active Miller clamping
  • Gate voltage levels: +18/-3 V or 15/-5 V
