EVAL AHNB IM69D130V01
EVAL AHNB IM69D130V01
View replacement
User Manual

Product details

  • Family
    Sensor
  • Product Name
    IM69D130
OPN
EVALAHNBIM69D130V01TOBO1
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement

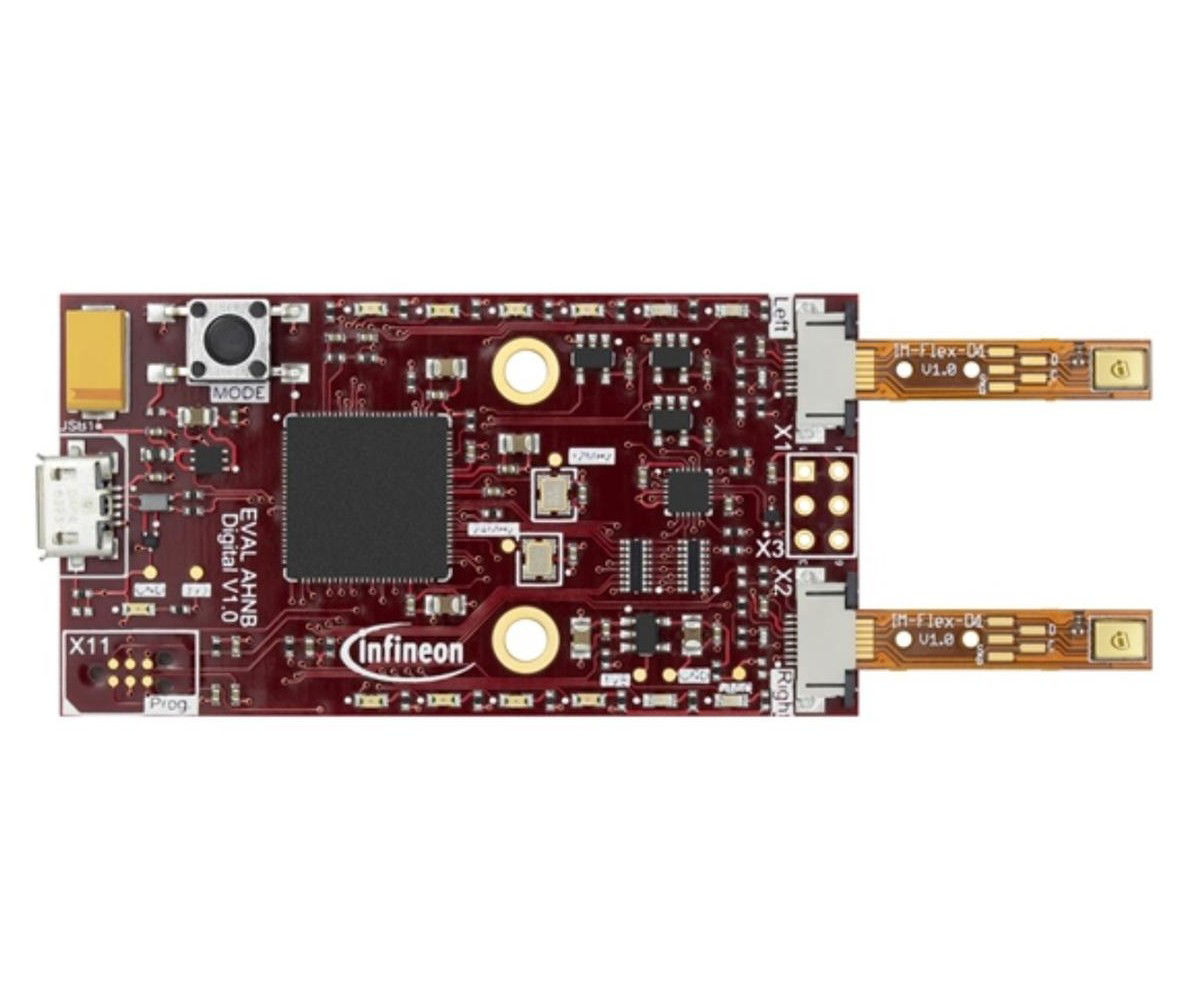

The Infineon Audiohub Nano enables the evaluation of Infineon digital PDM XENSIV™ MEMS microphones. The kit includes an Infineon Audiohub Nano and four IM69D130 digital microphones on flex board. Up to two Infineon digital XENSIV™ MEMS microphones can be connected to the evaluation board in mono or stereo output. The evaluation board provides a USB audio interface to stream audio data from the microphone with any audio recording and editing software.

Features

  • Audio streaming over USB interface
  • 48 kHz sampling rate
  • 24-bit audio data (stereo)
  • Mode switch for toggling between normal mode and low power mode with 4 pre-defined gain configurations
  • LEDs indication for the configured gain level in normal mode and low power mode
  • Volume unit meter display with on board LEDs
  • Powered through Micro-USB
