EVAL_3KW_GAN_HERIC

All-GaN string/hybrid inverter evaluation board rated up to 3 kW
User manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_3KW_GAN_HERIC
EVAL_3KW_GAN_HERIC
User manual


Product details

  • Efficiency
    99.14% @full load
  • Input current max
    10 A
  • Input current
    8 A
  • Input Type
    DC
  • Input Voltage range
    380 V to 510 V
  • Input Voltage
    445 V
  • Output Current
    13 A
  • Output Voltage Type
    AC
  • Output Voltage
    230 V
  • Power max
    3 kW
  • Switching Frequency
    50 kHz

Recommended
OPN
EVAL3KWGANHERICTOBO1
Product Status active and preferred
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes

Product Status
Active
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

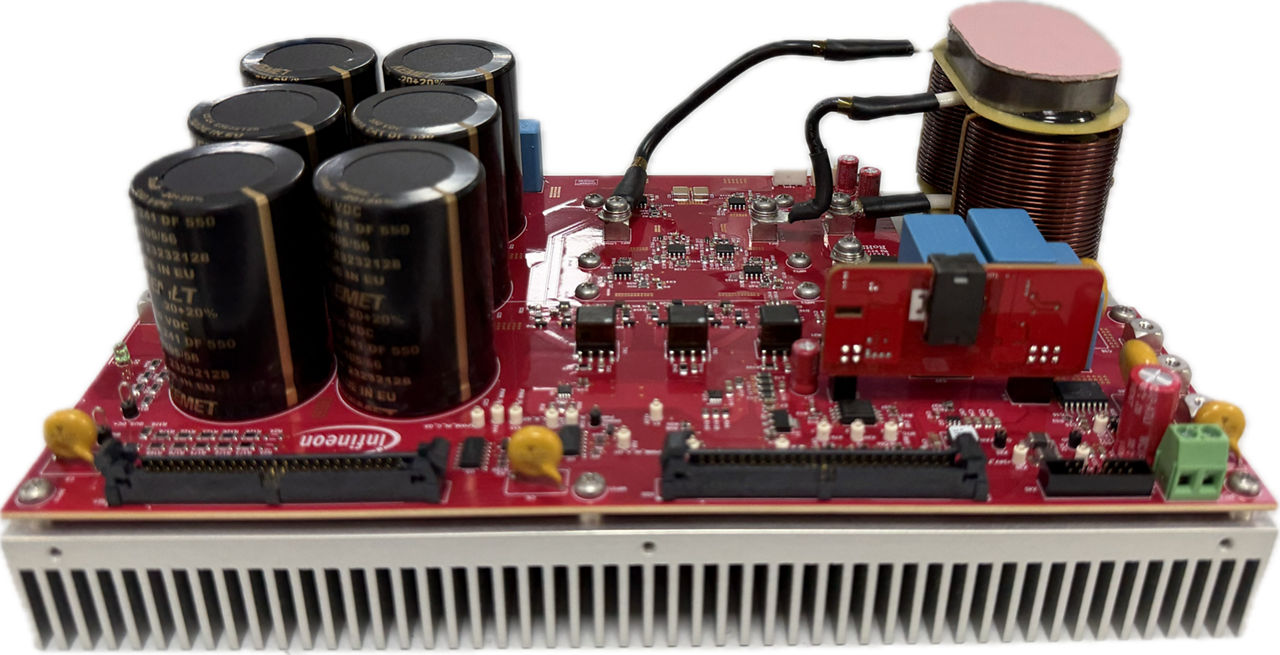

The EVAL_3KW_GAN_HERIC is a 3 kW residential solar inverter evaluation kit based on the HERIC topology. It includes the inverter power stage main board and an isolated auxiliary power supply board, featuring CoolGaN™ Transistor 650 V G5 and CoolGaN™ bidirectional switch. An optional XMC7200-based REF-CLBXMC7PEC control board with software, signal conditioning, and GUI is available separately.
