3.0kW dual LLC evaluation board
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_3KW_2LLC_C7_20
EVAL_3KW_2LLC_C7_20
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    230 x 140 x 45mm
  • Family
    Small signal MOSFETs
  • Input Type
    DC
  • Mounting
    Mounting holes
  • Output Current
    0 A to 55 A
  • Output Voltage
    44 V to 58 V
  • Pout
    0 W to 3000 W
  • Sub Application
    Telecom / Industrial SMPS
  • Supply Voltage
    350 V to 400 V
  • Target Application
    Power Supplies
  • Topology
    LLC
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

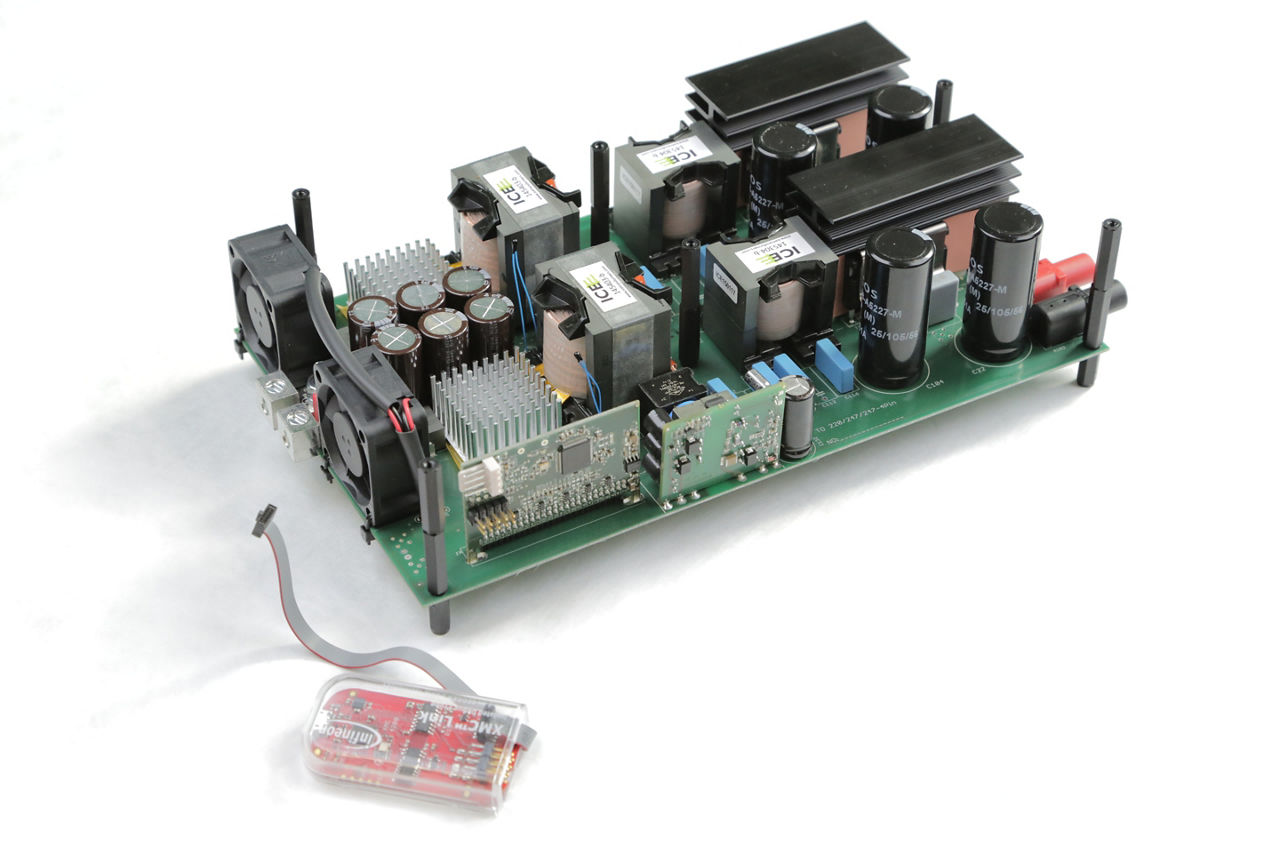

The 3kW dual-phase LLC evaluation board exemplifies a complete Infineon solution for the HV DC-DC stage of telecom rectifiers and industrial SMPS, focusing on achieving high efficiency and reliability. It features state-of-the-art 600V CoolMOS™ C7 superjunction MOSFET (IPP60R040C7) in TO-220 and 150V OptiMOS™ 5 (BSC093N15NS5) in SuperSO8 power device technologies, along with optimized driving and control techniques using Infineon components.

Features

  • Full digital control
  • LLC capacitive mode operation
  • MOSFET hard commutation prevention
  • GUI parameters setting & monitoring

Benefits

  • Peak efficiency >98.4%
  • Flat efficiency plot 10-100% load
  • Flexible design adjustment (GUI)
  • Design tuning (GUI)

Applications
