EVAL_38827_1VOUT

TDA38827 evaluation board
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_38827_1VOUT
EVAL_38827_1VOUT
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    3.75 in x 3.0 in
  • Family
    OptiMOS™ IPOL
  • Frequency
    600 kHz to 2000 kHz
  • Input Type
    DC
  • Interfaces
    Analog
  • Mounting
    SMD
  • Output Current max
    25 A
  • Output Voltage
    1 V to 1 V
  • Pout max
    25 W
  • Qualification
    Industrial
  • Supply Voltage
    12 V to 13.2 V
  • Topology
    Buck
Recommended
OPN
EVAL388271VOUTTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

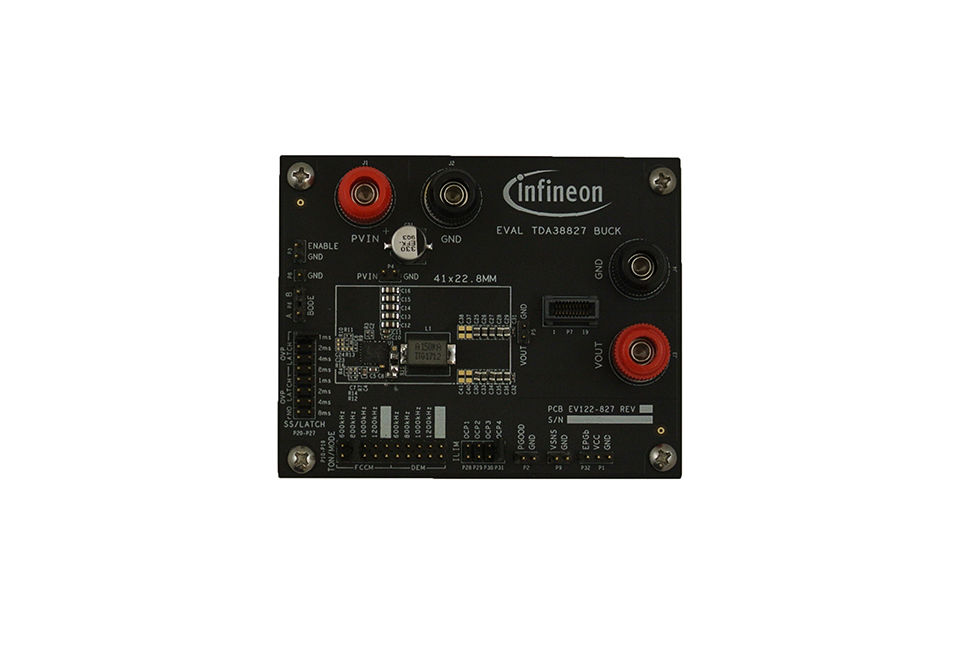

This evaluation board features 25 A OptiMOS™ IPOL, TDA38827 , a highly integrated synchronous buck regulator, with constant-on-time in a small 6x5 mm2 power QFN package. It provides a compact, high-performance and flexible step-down solution for point-of-load applications in server , storage , telecom & data center, etc.

Features

  • Vin= 12V, Vout = 1 V at 0 to 25A
  • Fs= 600 kHz/800 kHz/1000 kHz
  • Peak efficiency = 91.6% at 600 kHz

Benefits

  • Easy to use fast constant on-time
  • OptiMOS™ 5 for very high efficiency
  • Comprehensive protection features

Applications

Bill of Material
