EVAL-2QR1765G-18W
EVAL-2QR1765G-18W
Application Notes

Product details

  • Board Type
    Demo Board
  • Family
    CoolSET™
  • Input Type
    AC
  • Pout
    18 W
  • Product Category
    CoolMOS™, CoolSET™
  • Qualification
    Industrial
  • Sub Application
    Offline SMPS
  • Supply Voltage
    85 V to 265 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
OPN
EVAL2QR1765G18WTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

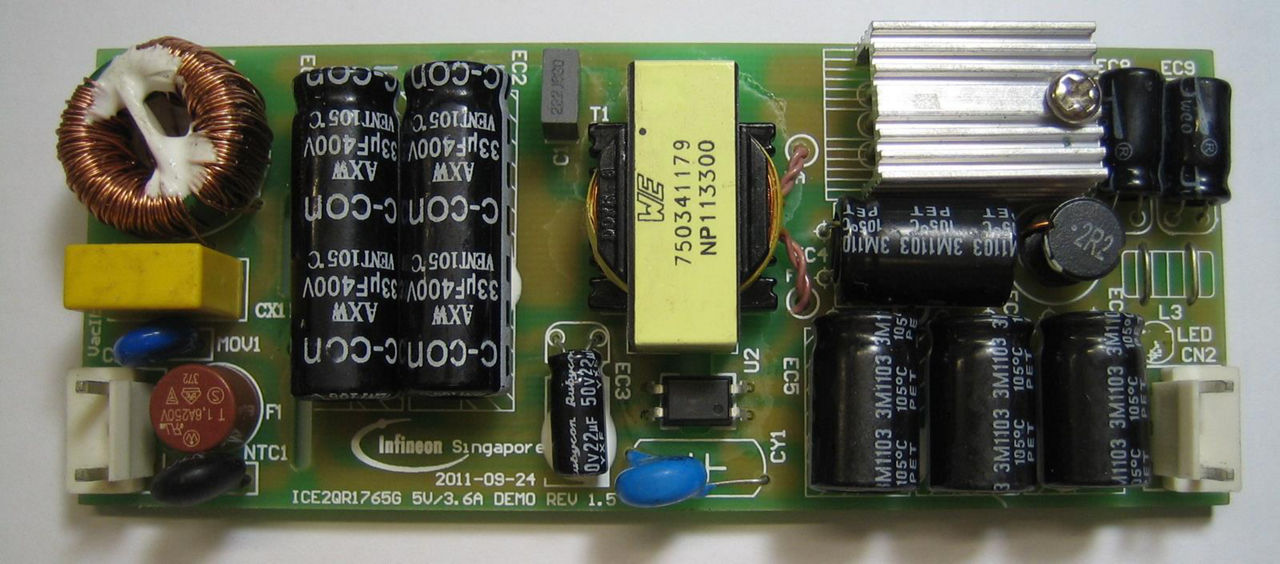

The small 18W switching mode power supply evaluation board utilizes ICE2QR1765G Quasi-resonant CoolSET™ in a quasi-resonant flyback converter topology, featuring CoolMOS™ for simplified PCB design and improved conversion efficiency. The IC offers adjustable protection functions and digital frequency reduction technology for efficient operation at very low load.

Features

  • Industry first IC in DSO16/12 package with 18W maximum output power
  • 650V avalanche rugged CoolMOS™ with built in depletion startup cell
  • Quasi-resonant operation
  • Digital frequency reduction with decreasing load
  • Cycle-by-cycle peak current limitation with foldback point correction
  • Built-in digital soft-start
  • Direct current sensing with internal Leading Edge Blanking Time
  • VCC under voltage protection: IC stop operation, recover with softstart
  • VCC over voltage protection: IC stop operation, recover with softstart
  • Openloop/Overload protection: Auto Restart
  • Output overvoltage protection: Latch-off with adjustable threshold
  • Short-winding protection: Latch-off
  • Over temperature protection: Autorestart

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

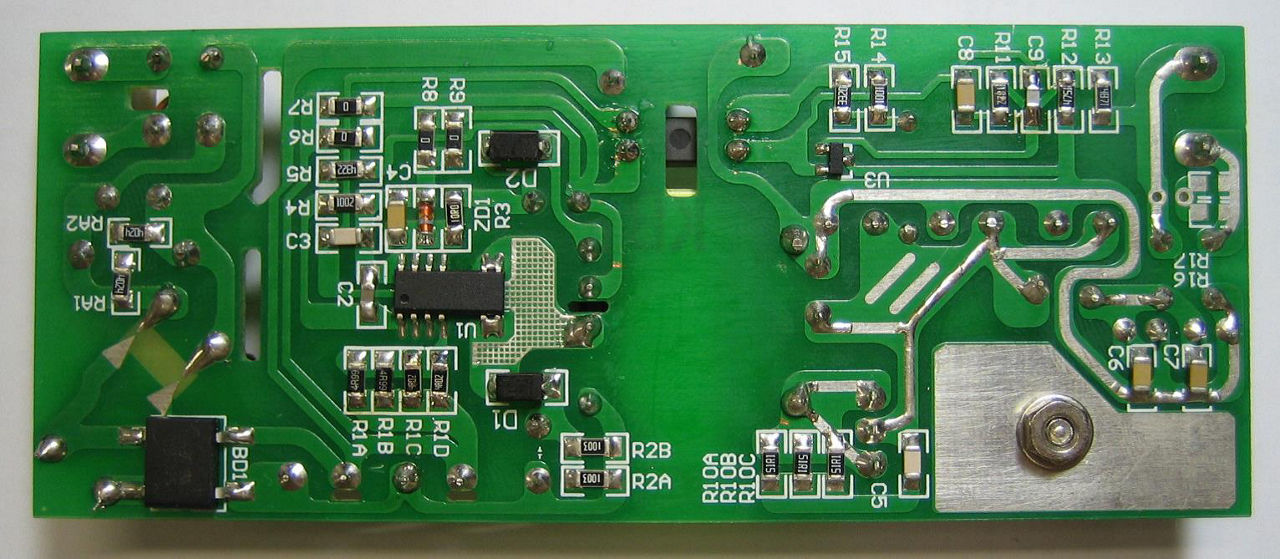

EVAL2QR1765G-back
